Highlights
Eliminate the guesswork of cooking with FlameSelect®
Introducing FlameSelect® on Bosch cooktops, an entirely new and better way to cook with gas. 9 preset power levels let you easily adjust flame level for more precise, controlled heating. Whether you’re rapidly bringing water to an intense boil or delicately melting chocolate, the numbered flame levels deliver the exact temperature every time. There’s no more hot or cold spots, just precision heating for perfect results.

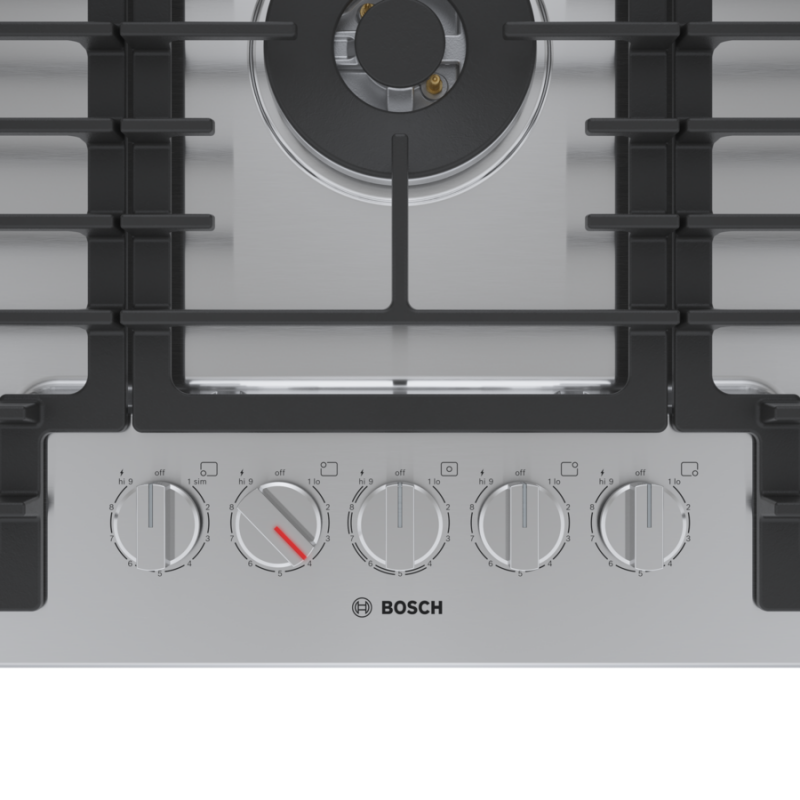

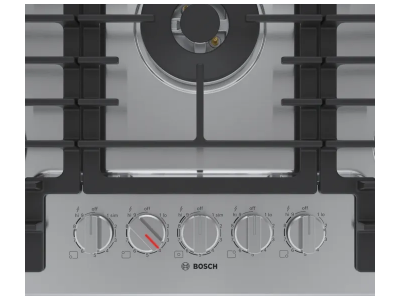

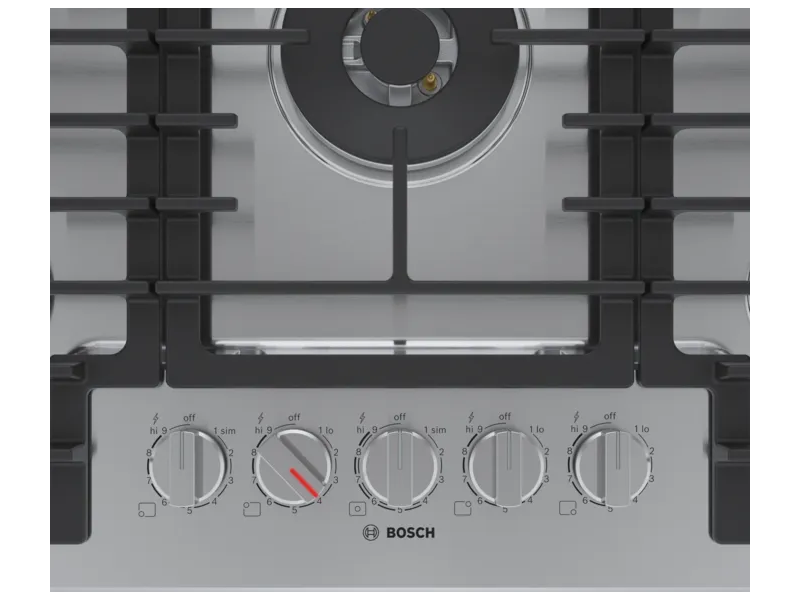

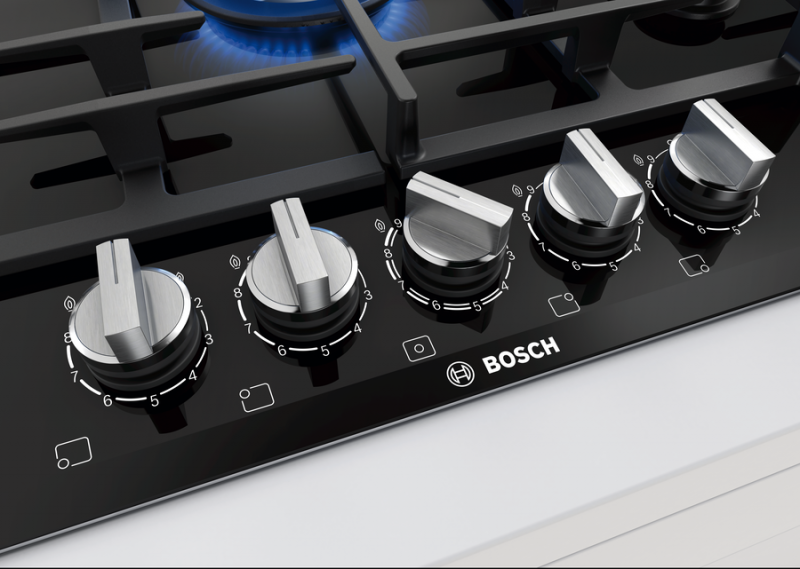

Sleek Knobs with LED Indicators
Control knobs with an embedded red LED light line indicate if the burner is on or if there is residual heat.

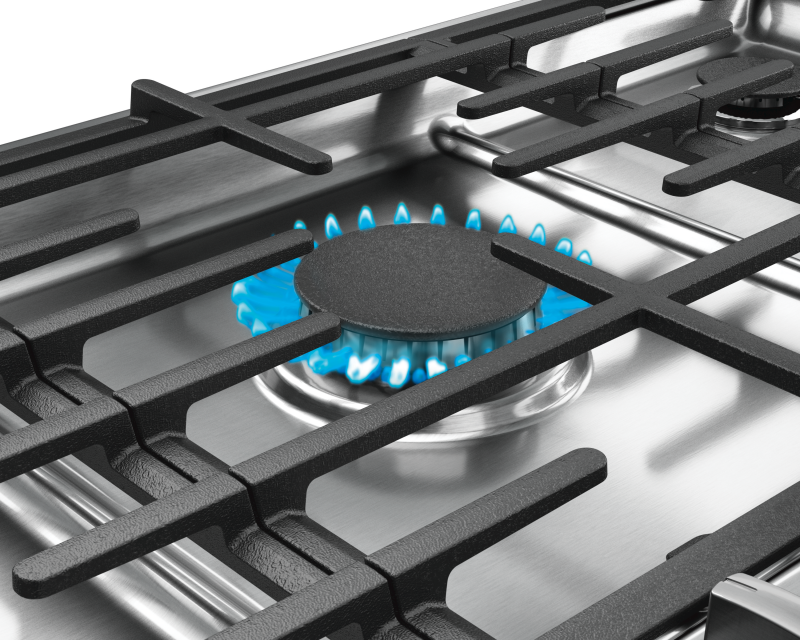

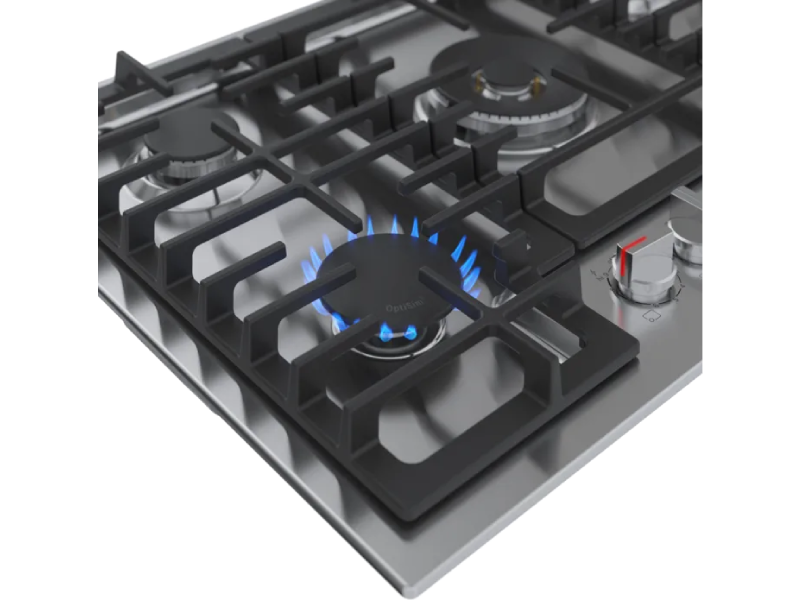

Simmer delicate sauces with the OptiSim® Burner
The OptiSim burner design is wider and thicker which diffuses heat evenly for better flame control when simmering delicate sauces.

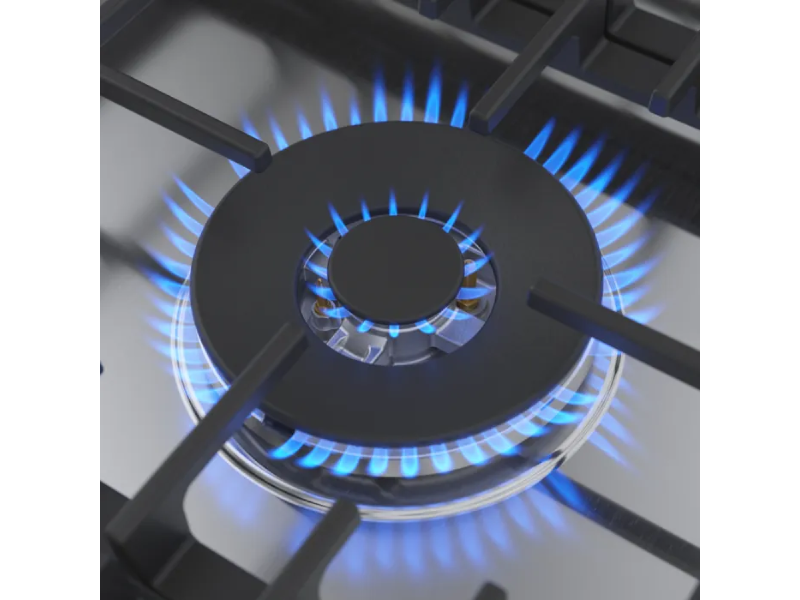

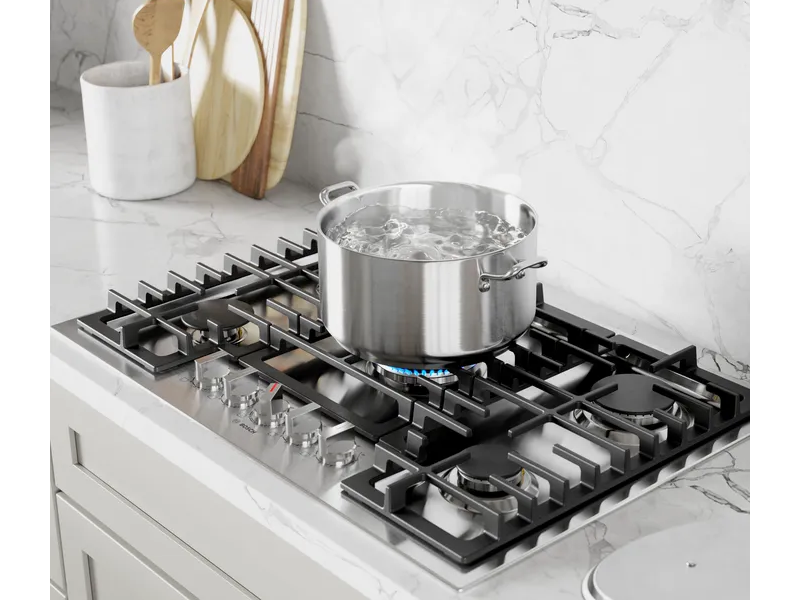

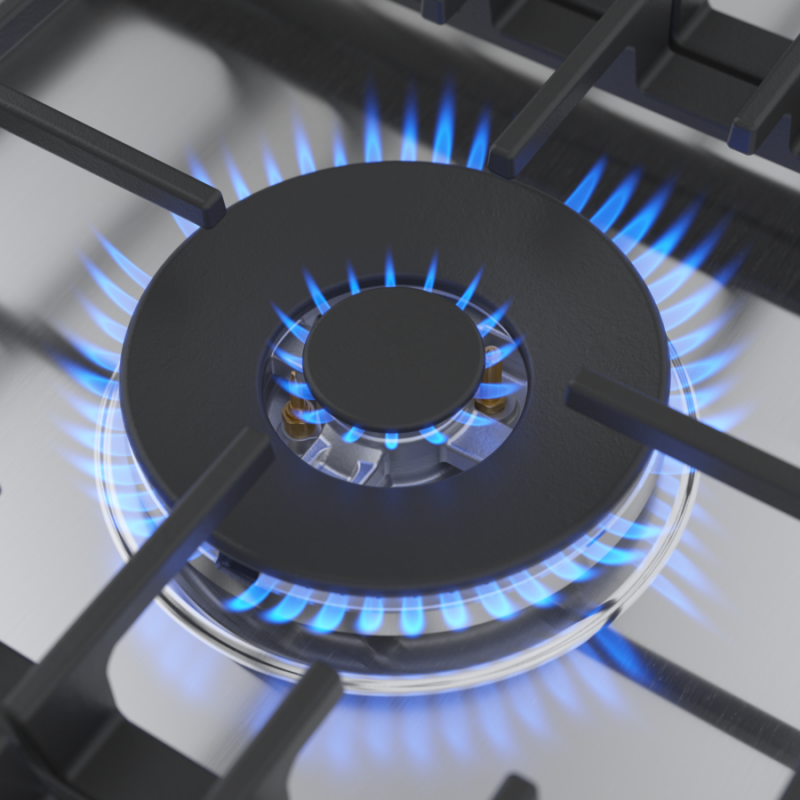

Boil water quickly with a Dual-Flame Power Burner
The dual flame ring power burner has two rings for low and high flame settings so you can go from simmer to sear with ease. Heat level 1-3 uses the inner ring, and 4-9 uses both rings for maximum heat.

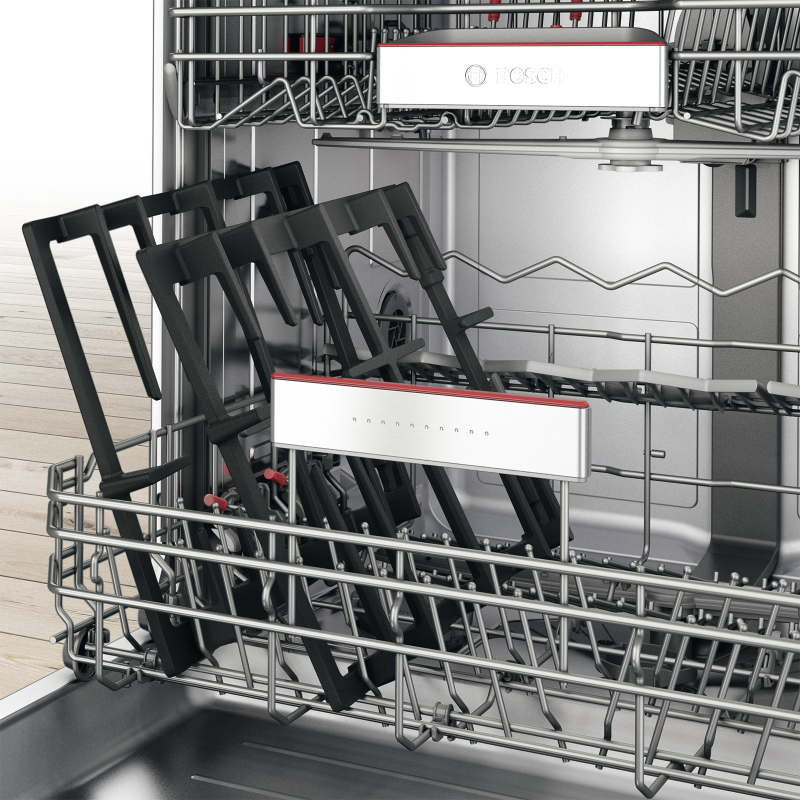

Dishwasher-safe grates
A special enameling process allows the grates to be washed directly in the dishwasher instead of by hand for easier clean up.

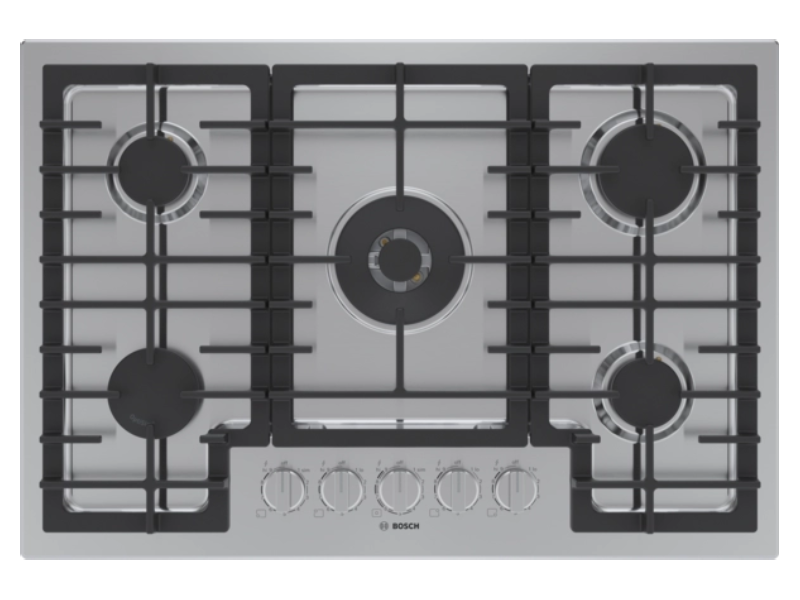

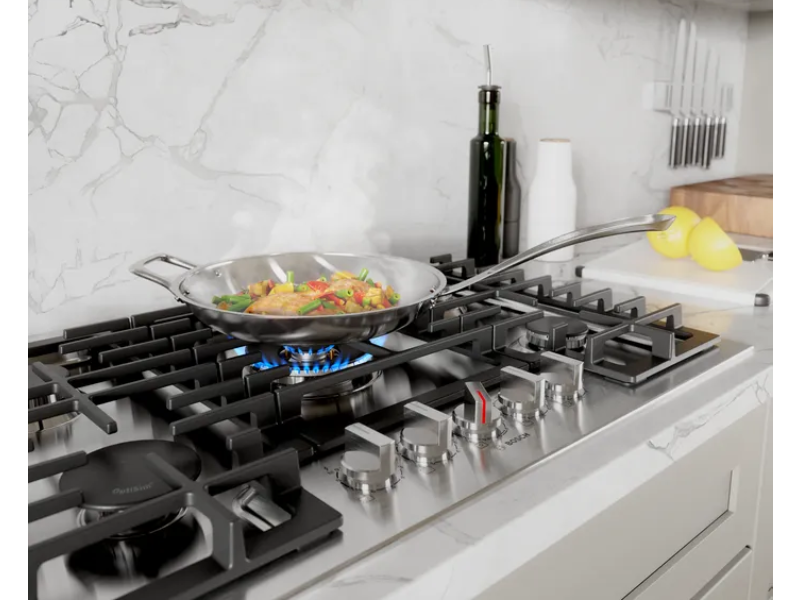

Slide your pans from burner to burner
The full-width continuous cast iron grate design makes sliding heavy pots easier around the cooking surface.
Residual Heat Indicator
Residual heat indication shown on the cooktop with a 'H' for hot to touch or 'h' for warm taking the guesswork out of safety.
Special Features
General Properties | |
---|---|
Number of Burner | 5 |
Knob color | Stainless Steel Appearance |
Control location | Front-center |
Sealed burners | Yes |
Valves | Five 9-level gas step valves |
Ignition system | Electronic; thermocouple flame monitor control |
Surface | Stainless steel |
Grate material | Cast iron |
Grate features | Continuous grates,dishwasher safe |
Element Performance | |
Total BTU load (NG / LP) | 42,700 / 41,400 |
Power of front left burner (NG / LP) | 3,400 / 3,400 |
Power of back left burner (NG / LP) | 6,000 / 6,000 |
Power of center burner (NG / LP) | 17,000 / 15,700 |
Power of back right burner (NG / LP) | 10,300 / 10,300 |
Power of front right burner (NG / LP) | 6,000 / 6,000 |
TECHNICAL DETAILS | |
Circuit breaker | 15 A |
Volts | 120 V |
Frequency | 60 Hz |
Plug type | 3-prong |
Power cord length | 40" |
Energy source | Natural Gas (factory set) |
Convertible to LP (kit required) | Yes |
Dimensions & Weight | |
Overall appliance dimensions (HxWxD) | 4 1/2" x 31" x 21 1/4" |
Required cutout size (HxWxD) | 2" x 28 15/16" x 19 1/8" |
Minimum distance from counter front | 1 7/8" |
Minimum distance from rear wall | 3" |
Dimensions and Weight | |
Net weight | 51 lbs |
Accessories—Included | |
Included | LP Conversion Kit, OptiSim® Cap |
