Bosch NGM5659UC

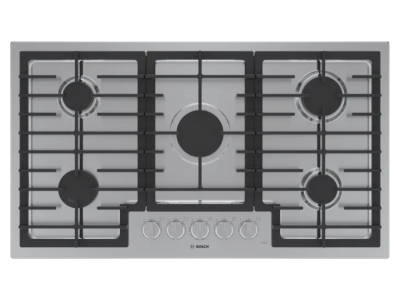

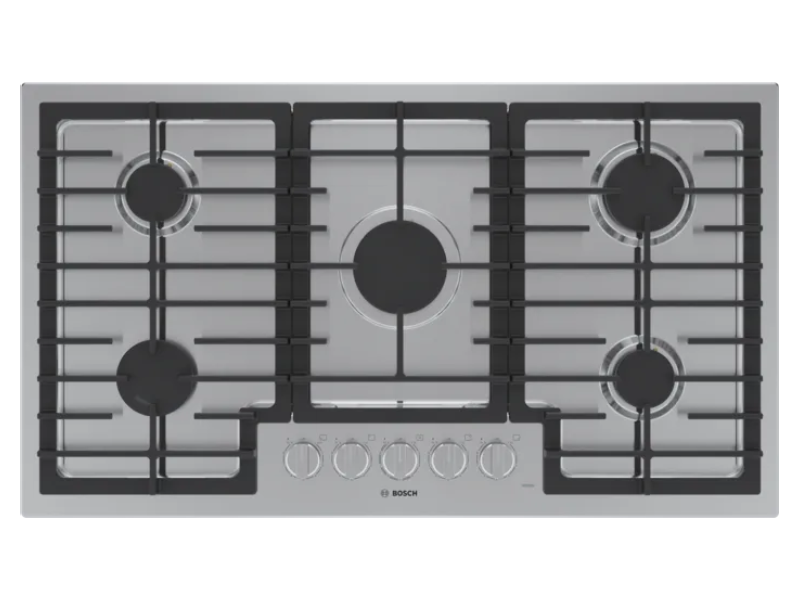

36" Bosch 500 Series 5 Burner Gas Cooktop - NGM5659UC



Authorized Dealer Price Match Guarantee
Price Match Guarantee
Best Brand Appliance offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.



Toronto:   (416) 901-6383
Vaughan: (905) 264-3137
Oakville/Burlington: (905) 592-0269


Literature

Highlights

Fit multiple pans and cook with 5 burners

5 powerful high-efficiency gas burners allow you to cook multiple dishes with a full range of BTU performance.



Residual Heat Indicator

Residual heat indication shown on the cooktop with a 'H' for hot to touch or 'h' for warm taking the guesswork out of safety.

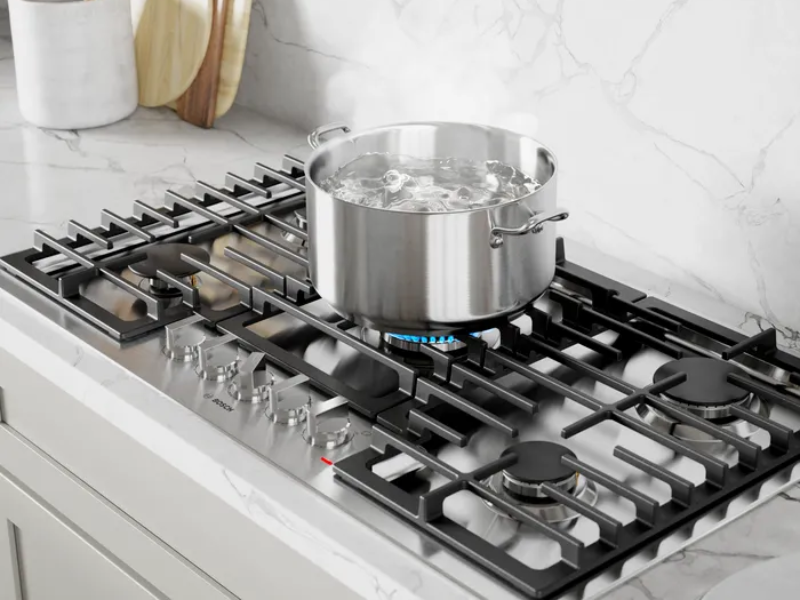

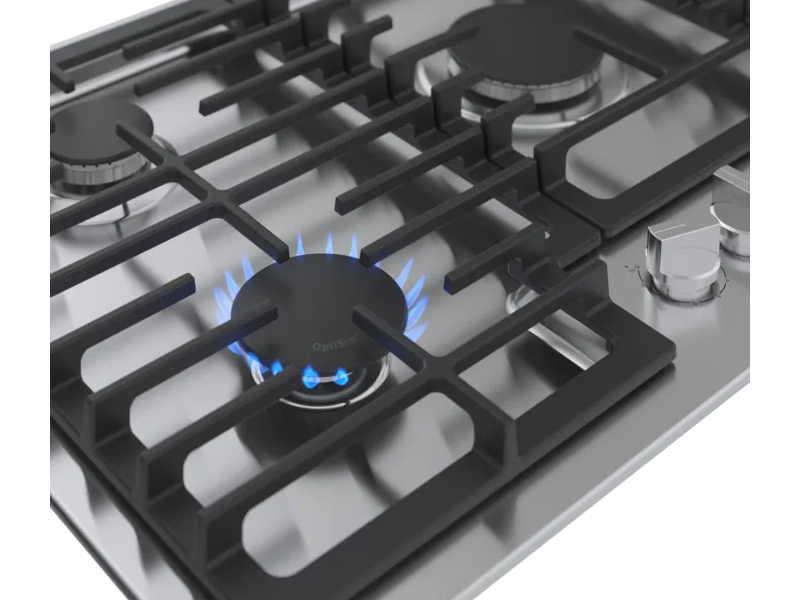

Slide your pans from burner to burner

The full-width continuous cast iron grate design makes sliding heavy pots easier around the cooking surface.

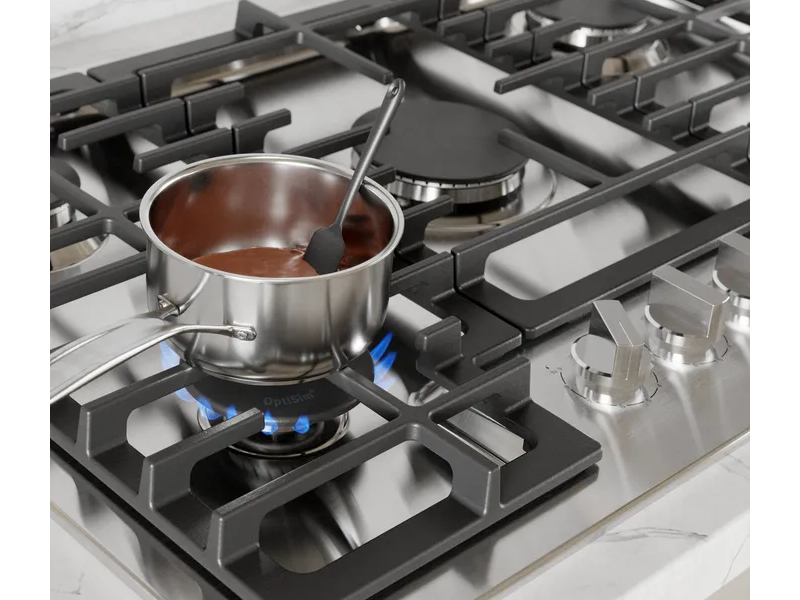

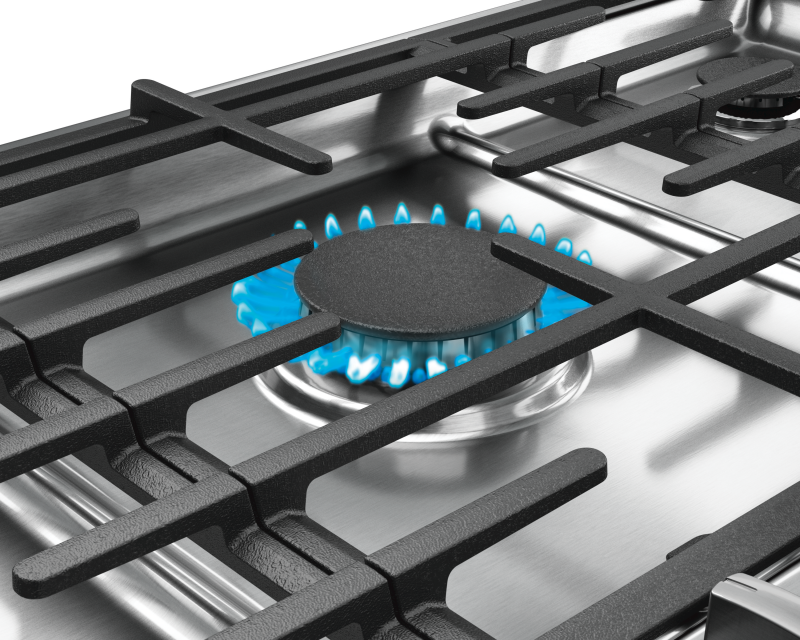

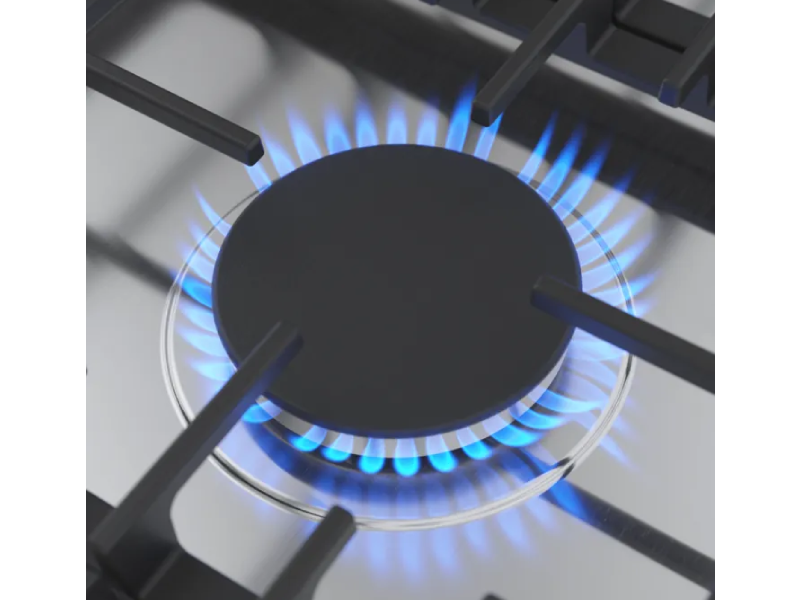

Simmer delicate sauces with the OptiSim® Burner

The OptiSim burner design is wider and thicker which diffuses heat evenly for better flame control when simmering delicate sauces.



Dishwasher-safe grates

A special enameling process allows the grates to be washed directly in the dishwasher instead of by hand for easier clean up.



Special Features

  • 5 Burners:5 high-efficiency gas burners allow you to cook multiple dishes at once
  • Residual Heat Indicator:Shows an H for Hot and h for warm residual heat on the cooking  surface for added safety
  • Continuous Cast Iron Grates:makes it easy to slide pots & pans from burner to burner.
  • Sealed Burners:help keep food and liquids on the cooktop surface for easier cleanup.
  • OptiSim® Burner:the wide & thick burner design diffuses heat evenly and reduces hot spots -- perfect for simmering delicate sauces or melting chocolate.
TECHNICAL DETAILS
Energy source Natural Gas (factory set)
Power cord length 40"
Plug type 3-prong
Frequency 60 Hz
Volts 120 V
Circuit breaker 15 A
Element Performance
Power of front right burner (NG / LP)6,000 / 6,000
Power of back right burner (NG / LP)10,300 / 10,300
Power of center burner (NG / LP)16,000 / 16,000
Power of back left burner (NG / LP)6,000 / 6,000
Power of front left burner (NG / LP)3,400 / 3,400
Total BTU load (NG / LP) 41,700 / 41,700
General Properties
Grate features Continuous grates
Grate material Cast iron
SurfaceStainless steel
Ignition system Electronic; thermocouple flame monitor control
Valves Gas
Sealed burners Yes

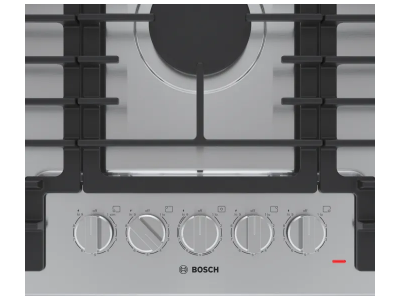

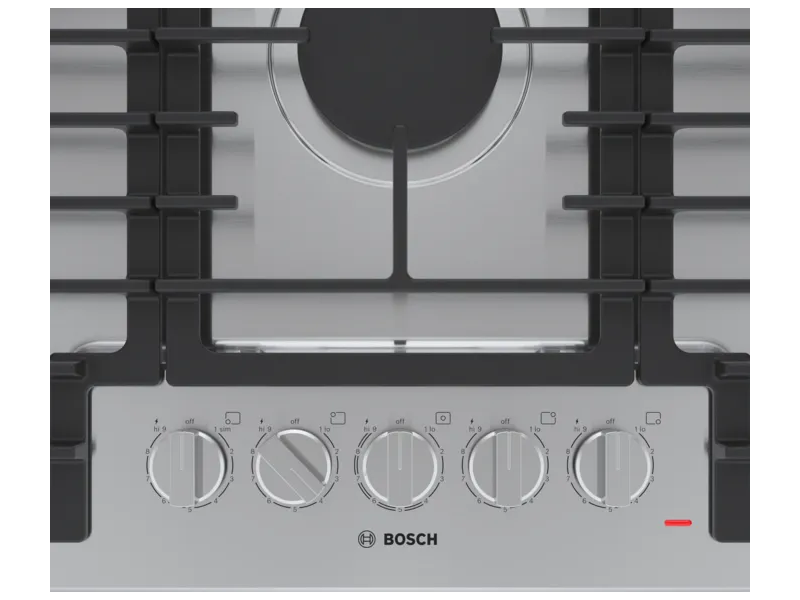

Control locationFront-center
Knob color Stainless steel appearance
Number of Burner5
Accessories—Included
Included LP Conversion Kit, OptiSim® Cap
Dimensions & Weight
Net weight 57 lbs
Minimum distance from rear wall3"
Minimum distance from counter front1 7/8"
Required cutout size (HxWxD)2" x 34 15/16" x 19 1/8
Overall appliance dimensions (HxWxD)4 1/2" x 37" x 21 1/4"
TECHNICAL DETAILS
Convertible to LP (kit required)Yes
