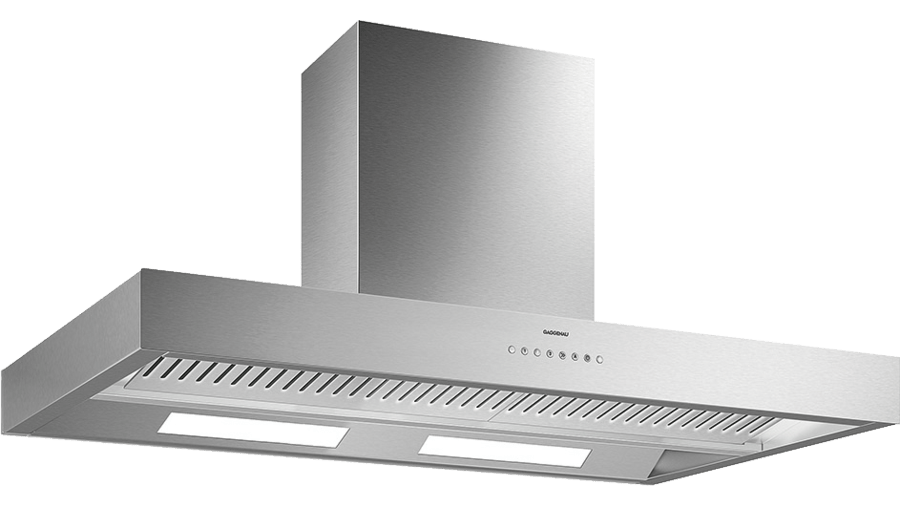

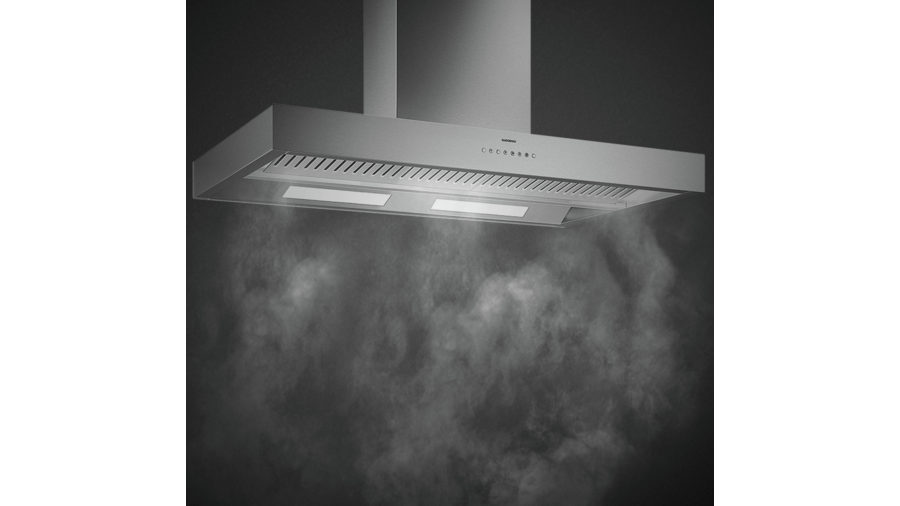

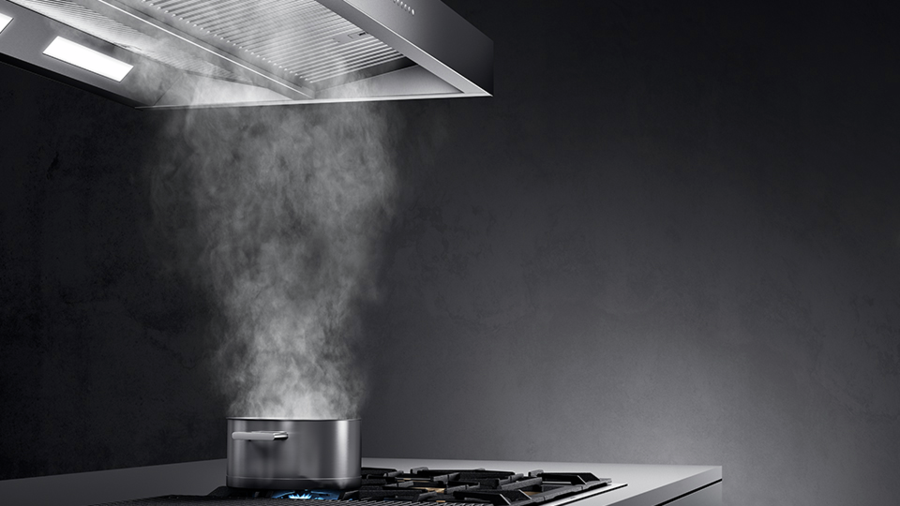

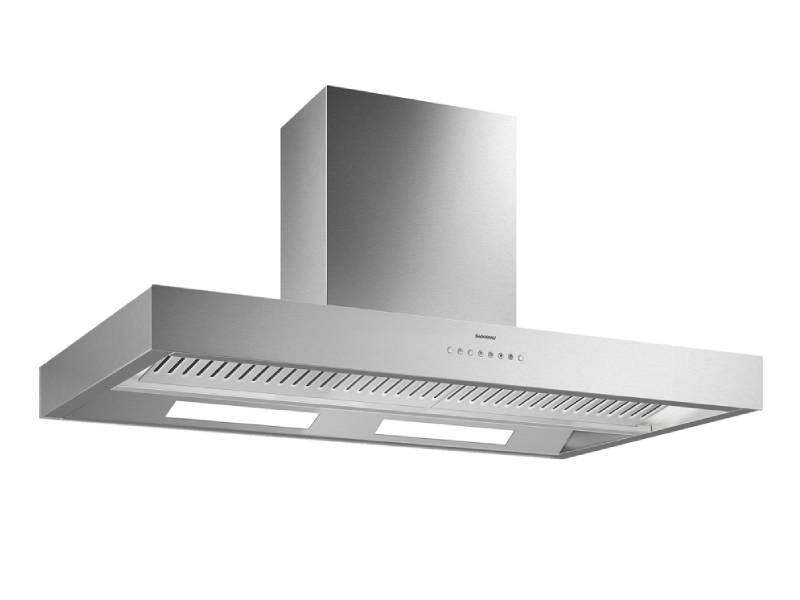

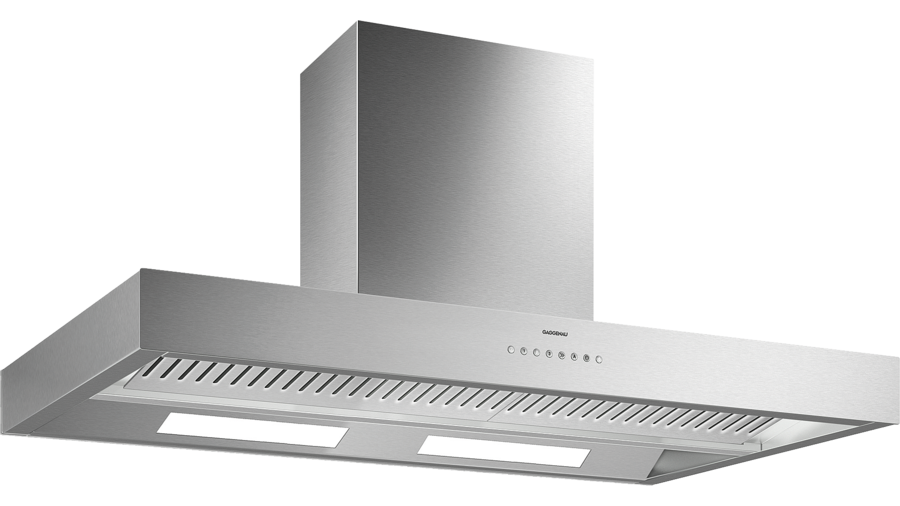

48" Gaggenau 400 Series Island Hood Stainless Steel - AI442720
Literature
You may also like
- Professional technology hood combined with classic Gaggenau design
- Highly efficient extraction of cooking vapours due to large vapour collection area
- Motorless, can be combined with Gaggenau BLDC remote fan units

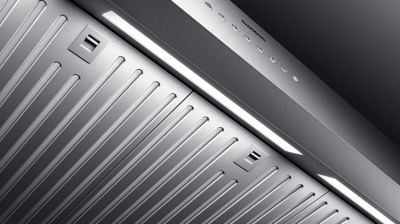

- Angled baffle filter with high grease absorption
- Function for automatic, sensor-controlled power adjustment depending on the build-up of cooking vapours
Additional Information
Output
- Power levels depend on the remote fan unit, see table on page XX.
Features
- 3 electronically controlled power levels and 1 intensive mode.
- Automatic function with sensor-controlled run-on function.
- Grease filter saturation indicator.
- Baffle filter, dishwasher-safe.
- Illuminance 1390 lx.
Planning notes
- Connection to the respective appliances via network cable.
- Clearance above gas appliances min. 70 cm.
- Clearance above electric appliances min. 60 cm.
- Air recirculation module with 2 activated charcoal filters is installed in the inner chimney. Special air recirculation chimneys are available for this.
- When installing a ventilation hood with air extraction mode and a chimney-vented fireplace, the power supply line of the ventilation appliance needs a suitable safety switch.
Connection
- Total connected load 50 W.
- Connecting cable 0.9 m, pluggable.
