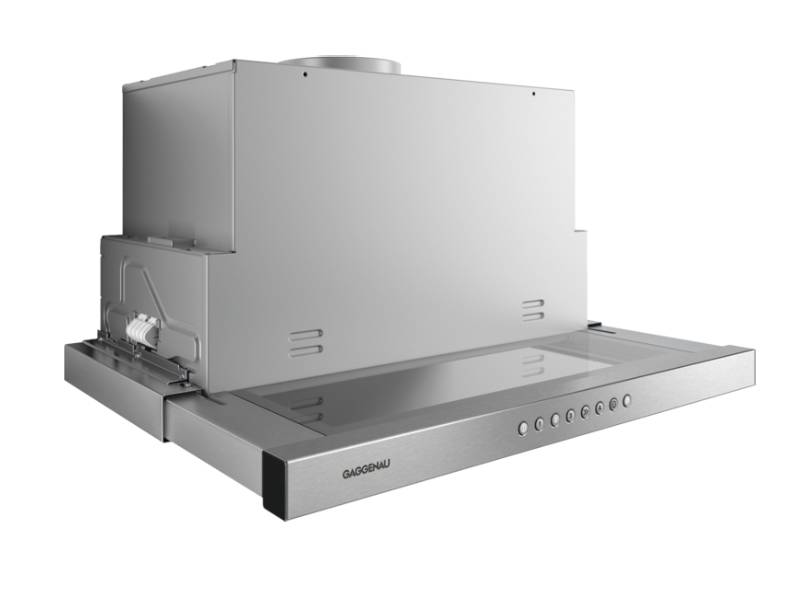

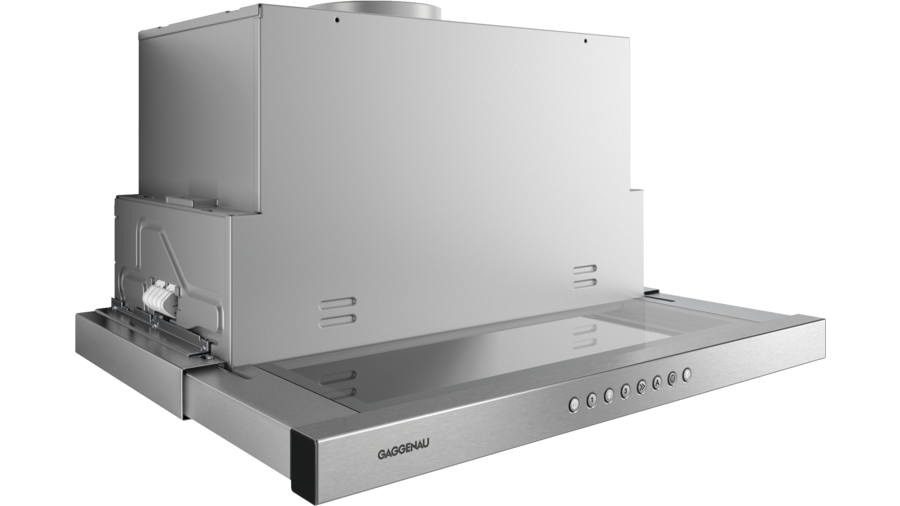

24" Gaggenau 200 Series Visor Hood Stainless Steel Handle Bar - AF210761

• Unobtrusive flat kitchen hood design thanks to integrated glass panel in the steam screen
• Especially quiet operation thanks to integrated sound insulation
• Steam screen extends by touching the handle bar
• Especially high air output
• Dimmable, neutral white LED light for ideal illumination of the whole cooktop

Additional Information

Output

• Performance and noise level, output level 3/Intensive:Air output according to EN 61591.Sound power level according to EN 60704-3.Sound pressure level according to EN 60704-2-13.Odour reduction for air recirculation in accordance with EN 61591.
• Air extraction:630 / 850 m³/h.65 / 72 dB (A) re 1 pW.51 / 58 dB (A) re 20 μPa.
• Air recirculation:620 / 840 m³/h.71 / 78 dB (A) re 1 pW.57 / 64 dB (A) re 20 μPa.
• Odour reduction air recirculation 94 %.

Features

• Controls at front.
• 3 electronically controlled power levels and 1 intensive mode.
• Grease filter saturation indicator.
• Stainless steel grease filter, dishwasher-safe.
• Neutral white LED light (3600 K), continuously dimmable.
• Lamp output 2 x LED 6medium power 5W stripe.
• Illuminance 683 lx.
• Light can be switched on separately.
• Integrated sound insulation for quiet operation.
• The fan is activated when the steam screen is extended.
• Patented technology for extension of the steam screen.
• Extendable steam screen 198 mm.
• Airflow-optimised interior for efficient air circulation and ease of cleaning.
• Patented easy mounting system for simple installation.
• The package includes an one-way flap.

Planning notes

• Patented air recirculation module with activated charcoal filter can be installed in the upper cabinet. The activated carbon filter can be changed from the front by simply pulling out the activated charcoal filter.
• The door of the upper cabinet must be fully open in order to change the activated charcoal filter.
• To be installed in an upper cabinet without base.
• The required cavity depth of the upper cabinet together with the lowering frame measures 335 mm.
• The required cavity height of the upper cabinet together with the lowering frame measures 600 mm.
• Clearance above gas appliances min. 65 cm (more than total load gas 12 kW min. 70 cm).
• Clearance above electric appliances min. 43 cm.
• When installing a ventilation hood with air extraction mode and a chimney-vented fireplace, the power supply line of the ventilation appliance needs a suitable safety switch.

Connection

• Total connected load 430 W.
• Total amps: 10 A.
• 120 V / 60 Hz.
• Connecting cable 0.9 m, pluggable.
