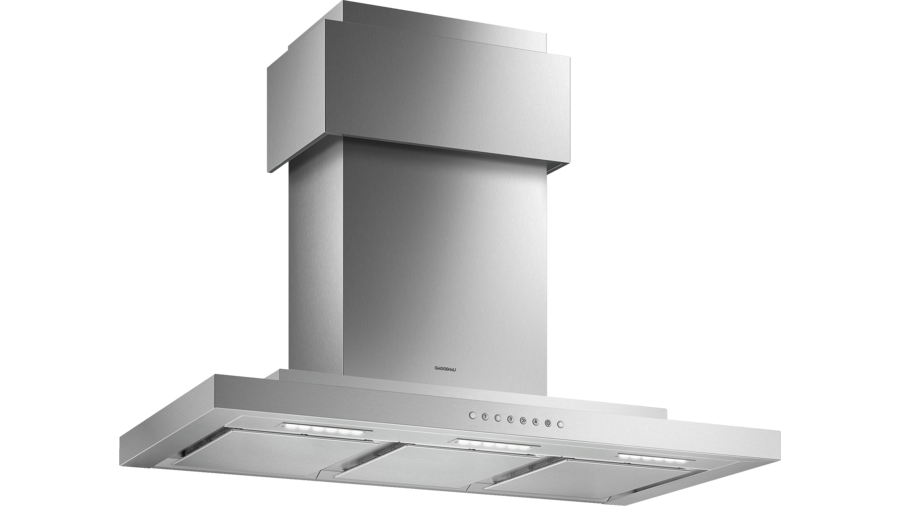

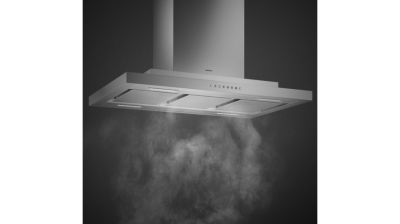

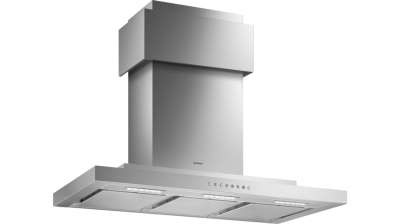

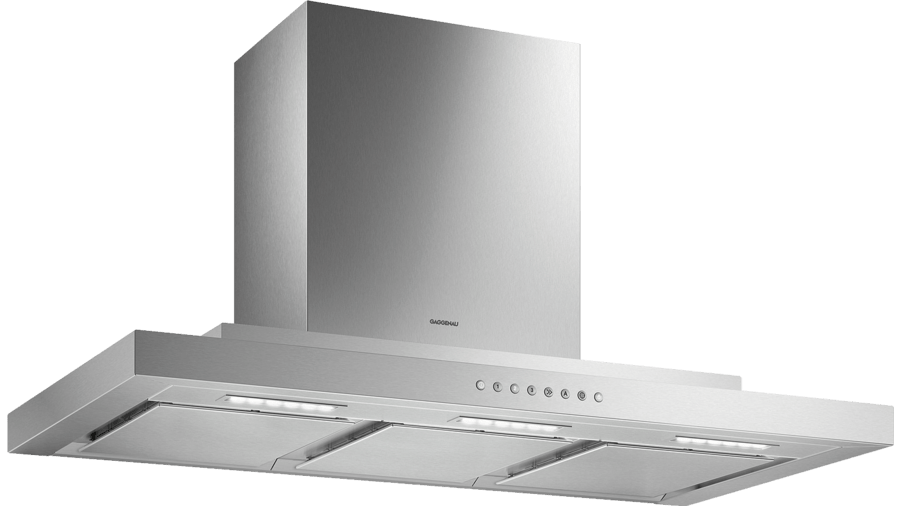

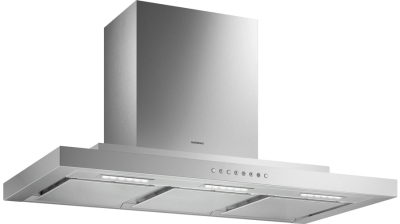

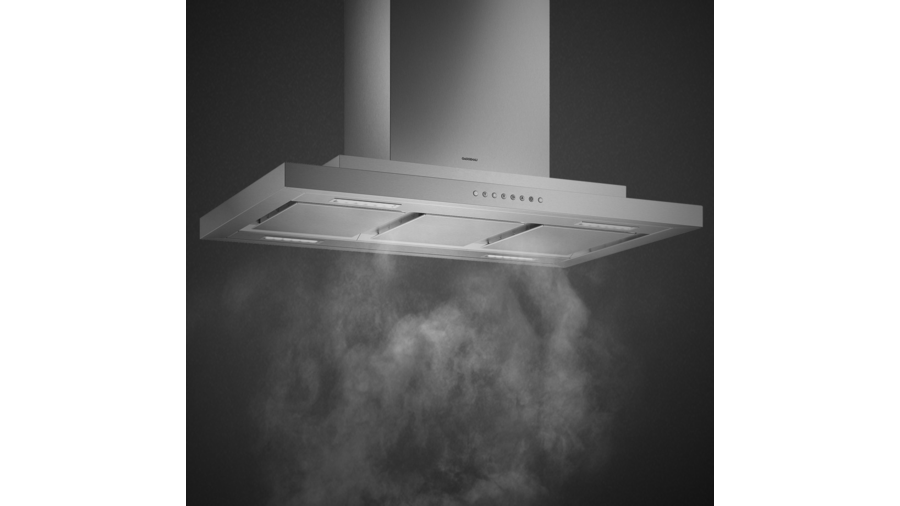

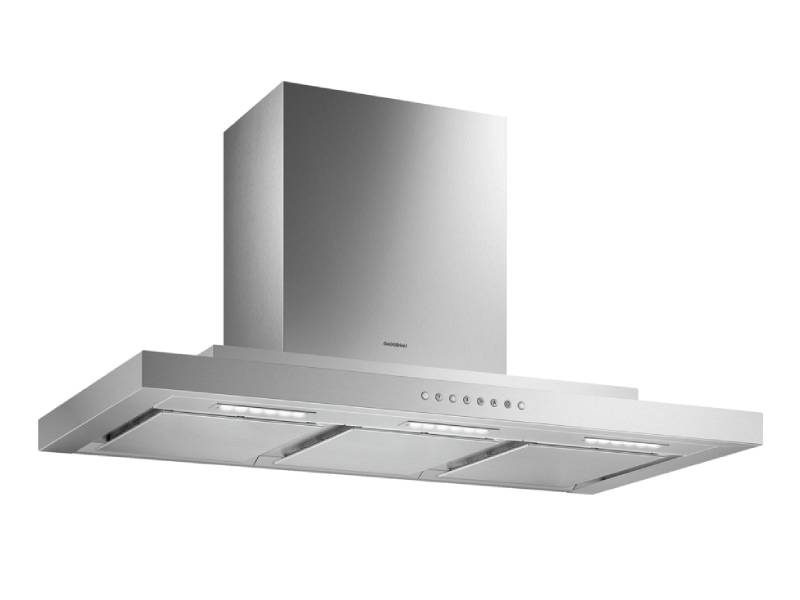

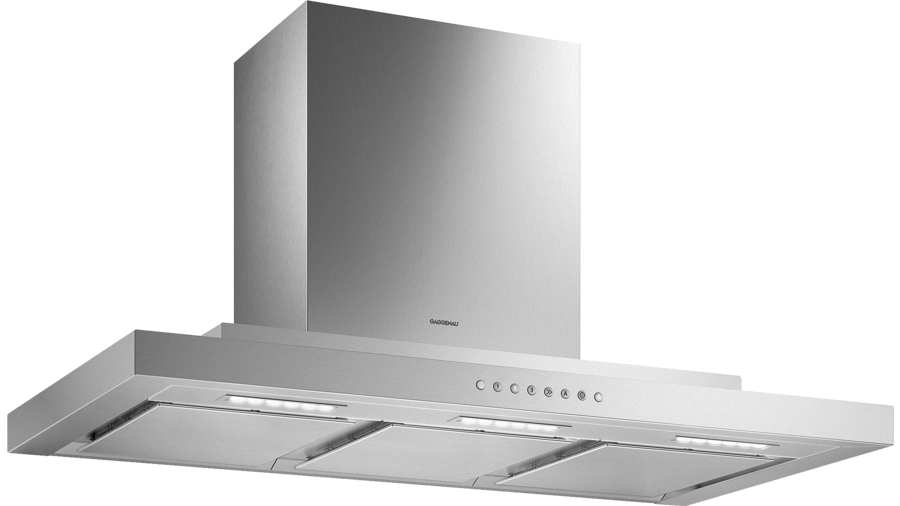

36" Gaggenau 200 series Wall-Mounted Hood Stainless Steel - AW230790

• Classic Gaggenau design
• Highly efficient extraction of cooking vapours
• Low-noise fan
• Patented filter technology with high level of grease absorption
• Rim extraction filter with flat and easy-to-clean stainless steel underside

Additional Information

Output

• Performance and noise level, output level 3/Intensive:Air output according to EN 61591.Sound power level according to EN 60704-3.Sound pressure level according to EN 60704-2-13.Odour reduction for air recirculation in accordance with EN 61591.
• Air extraction:622 / 765 m³/h.70 / 74 dB (A) re 1 pW.55 / 59 dB (A) re 20 μPa.
• Air recirculation:510 / 571 m³/h.74 / 77 dB (A) re 1 pW.59 / 62 dB (A) re 20 μPa.
• Odour reduction air recirculation 95%.

Features

• 3 electronically controlled power levels and 1 intensive mode.
• Grease filter saturation indicator.
• Patented rim extraction filter, dishwasher-safe.
• Airflow-optimised interior for efficient air circulation.
• Easy mounting system for simple installation and alignment.
• The package includes an one-way flap.
• Illuminance 731 lx.

Planning notes

• The package includes the two-part chimney with the dimensions from 582 mm to 864 mm. Individual planning solutions can be implemented using the special accessory chimney extension AD 200 322 or by shortening the lower edge of the inner chimney.
• Clearance above gas appliances min. 76 cm (more than total load gas 12 kW min. 70 cm).
• Clearance above electric appliances min. 76 cm.
• The air recirculation module with activated charcoal filter can be installed on the external chimney or inner chimney.
• When installing a ventilation hood with air extraction mode and a chimney-vented fireplace, the hood's power supply line needs a suitable safety switch.

Connection

• Total connected load 425 W.
• Connecting cable 30" with plug.
