30" Whirlpool Smart Slide in Electric Range with Air Cooking Technology - YWSES7530RW
| Dimensions | |
|---|---|
| Depth | 29.17 " |
| Width | 29.87 " |
| Height | 38.07 " |
| Carton Depth | 31.0 " |
| Carton Height | 43.0 " |
| Carton Width | 32.0 " |
| Gross Weight | 196.0 lbs |
| Depth Closed Excluding Handles | 26.57 " |
| Depth Closed Including Handles | 29.17 " |
| Depth With Door Open 90 Degree | 47.71 " |
| Cutout Depth | 24.0 " |
| Cutout Height | 36.0 " |
| Cutout Width | 30.0 " |
| Maximum Height | 38.07 " |
| Minimum Height | 36.58 " |
| Capacity | 5.3 |
| Configuration | |
| Oven Configuration | Single Oven |
| Range Configuration | Slide-In |

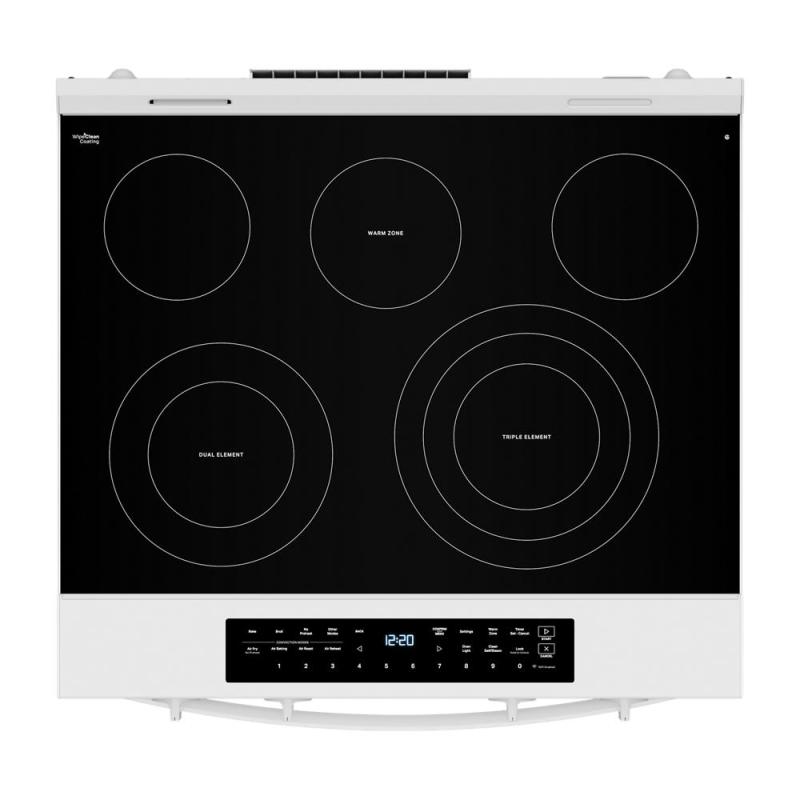

| Cooktop Details | |
| Cooktop Control Location | Front |
| Cooktop Control Type | Knobs |
| Number of Burner | 5 |
| Ignition Type | N/A |
| Center Rear Element Burner Power | 100W |
| Center Rear Element Burner Type | Warming |
| Left Front Element Burner Power | 3000W/1400W |
| Cooktop Configuration | All Burners |
| Cooktop Element Style | Ceran |
| Left Front Element Burner Size | 9in./6in. |
| Left Rear Element Burner Power | 1200W |
| Left Rear Element Burner Size | 6in. |
| Left Rear Element Burner Type | Standard |
| Right Rear Element Burner Power | 1200W |
| Right Rear Element Burner Size | 6in. |
| Right Rear Element Burner Type | Standard |

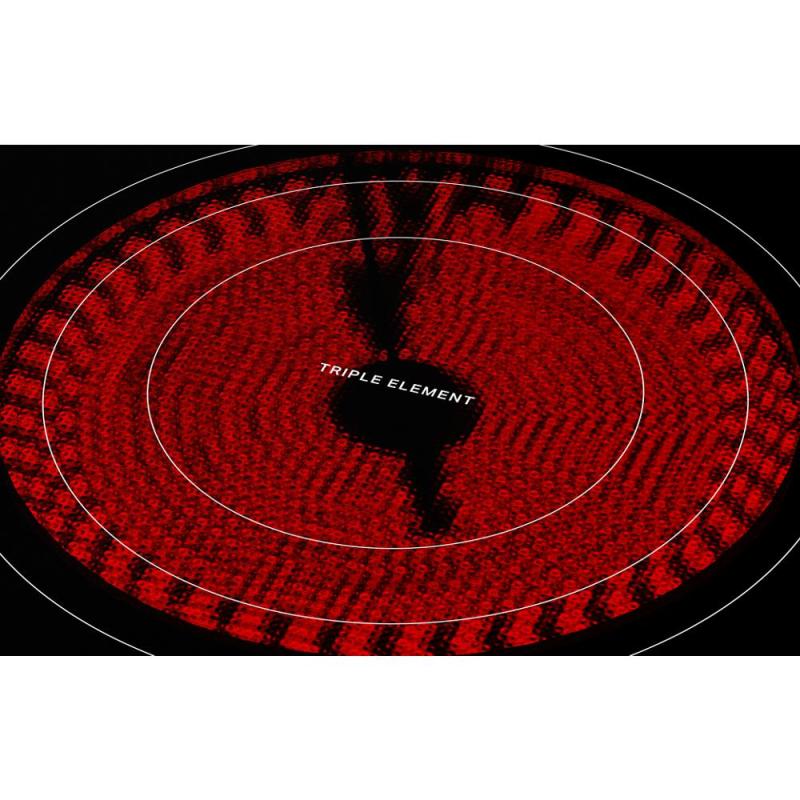

| Right Front Element Burner Size | 12in./9in./6in. |
| Right Front Element Burner Type | Triple |
| Left Front Element Burner Type | Dual |
| Right Front Element Burner Power | 900W1950W3000W |
| DETAILS | |
| Hidden Bake Element | Yes |
| Oven Control Location | Front Control |
| Convection Cooking Technology | True Convection |
| Oven Light Switch Location | Oven Control |
| Oven Light Type | Halogen |
| Oven Control Knob Type | N/A |
| Cleaning Type | Steam Clean |
| Broiler Location | Top Center |
| Oven Interior Depth In Inches | 22.75 |
| Oven Interior Width In Inches | 26.38 |
| Cooktop Surface Material | Glass with WipeClean Coating |
| Convection Functions | Bake Broil |
| Number Of Rack Guides | 5 |
| Bake Element Power | 2400W |
| Number Of Oven Racks | 3 |
| Broiler Element Power | 3400W |
| Number Of Oven Lights | 1 |
| Oven Control Type | Tap Touch |
| Convection Element Type | True |
| Oven Rack Type | 2 Standard and 1 Max Capacity |
| Specifications | |
| Optional Accessories | W11692811, 4396096RB |
| Country Of Origin | USA |
| Dishwasher Safe | No |
| Exterior | |
| Door Removable | Yes |
| Drawer Type | Storage Drawer |
| Features | |
| LP Convertible | N/A |
| Natural Gas Convertible | N/A |
| Power Outage Compatible | Yes |
| Hot Surface Indicator Light | Yes |
| Griddle | No, Optional Accessory |
| Automatic Convection Conversion Temperature Adjust | No |
| Heating Element On Indicator Light | Yes |
| Configuration and Overview | |
| Fuel Type | Electric |
| Certifications | |
| CUL | Yes |
| UL | Yes |
| ADA Compliant | Yes |
| Energy Rating Kwh Year | 601 |
| Star K Certified | Star K Certified |
| Electrical | |
| Hz | 60 |
| Volts | 208 |
| Amps | 40 |
| Watts | 12 |
| Power Cord Included | Yes |
| Compatibility | |
| Works With | Amazon Alexa Android Google Assistant Nest iOS |
| Connectivity | App Bluetooth Remote Access Voice Controlled WiFi |
| Description | |
| Range Type | Slide-in |
| Energy | |
| Annual Energy Usage Kwh | 601 |
| CONTROLS | |
| Knob Type | Weighted |
