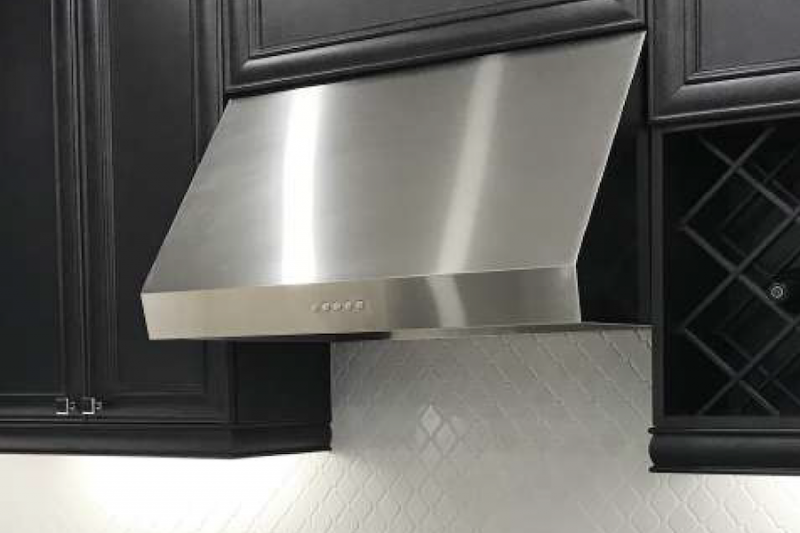

42" Cyclone Pro Collection Undermount Wall Mount with Chimney - PTB81248MB
Literature
You may also like
Perfect for high-heat cooking, the PIE3812 has anincredible 3-speed,1200 CFM fan wrapped in animposing 18″ tall wall-mount style body. Comes withdurable and dishwasher-friendly baffle filters, 3 brightLED lights and an 8″ duct connection for optimalperformance.
Features
- Undermount and wall mount range hood
- 8″ round duct
- Non-stick coated aluminum fan blades
- 3 speed push button control panel
- 3 LED light bulbs (3 x 1.4W, 4000K)
- Dishwasher-safe baffle filters with integrated handles
- 3 minutes time-delay OFF feature
- Plug-in connection
Green Features
- 3 Speed Push Button Control Panel
- Dishwasher Safe Baffle Filters
- Time-Delay OFF Feature
- Grease Cup
- Long-Lasting LED Lights
- Grease Tray
| Specifications | |
|---|---|
| Air Flow Volume | 1200 CFM |
| Electrical Connection | 120V/60Hz |
| Power Consumption | 300 Watts |
| Current | 2.5 Amps |
| Fan Speed | 1599 RPM |
| Fan Type | Centrifugal Blower |
| Finishes | Stainless Steel, Matte Black |
| Knock-out | 8″ Round (Top Only) |
| Duct | 8” Round |
| Dimensions | Width: 36″ / 42″ / 48″ Height: 17 3/4” Depth: 22″ |
| Noise Level | Min. 2 Sones Max. 6 Sones |
