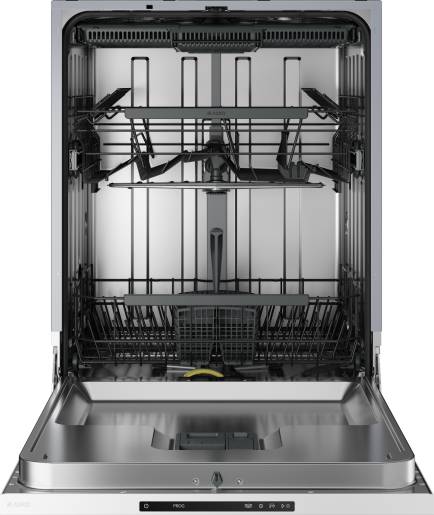

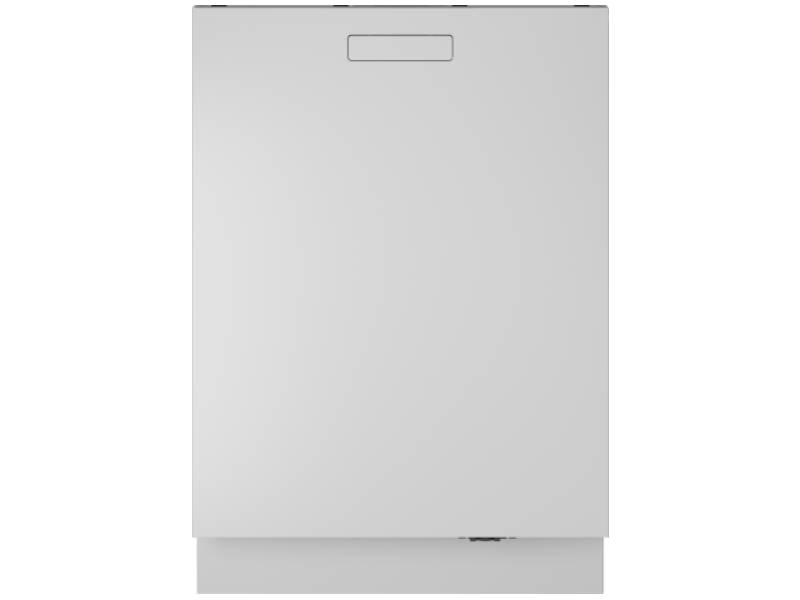

24" Asko Built-in Dishwasher - DBI563IXXLW

You may also like

Status light
A small light placed in the bottom right corner indicates the current status of a program with three colours: Blue tells you when you can still open the door to load more items, red tells you when it’s too late to do so and green tells you when the dishes are ready. The Status Light™ can be either face-on or as a spot on the floor.

Super Cleaning System™ (SCS™)
Rinse the dishes. Clean the interior, including the filter. Choose the best program. How many steps is that? One – and we call it the Super Cleaning System – or our best invention.

Flexiracks™
ASKO Flexiracks™ from sturdy, nylon coated steel and are easily adjustable in different heights depending on which type of load you have.

XXL dishwashers
Our XXL dishwashers have an loading height of 23". Combined with the smart four level rack system the load is 40% more, with countless possibilities to make it all fit in.

Top cutlery tray
The practical top cutlery tray is a perfect place for cutlery and knives. It consists of three parts that can be moved sideways. This allows you to adjust the layout and free up space for taller items in the basket below.

7 Spray™
ASKO’s spray system consists of up to 7 effective spray zones to ensure a totally clean load. In the lower rack there are two power zones to take care of the dirtiest parts.

3 Level rack
ASKO’s three level rack system allows you to optimize the load. Remove, adjust, fold and move the racks, pin rows and cutlery rack to meet your every need.

Telescopic rails
ASKO uses telescopic guide rails with ball bearings to make the racks glide smoothly and quietly. For easy loading and unloading, you can also take out the whole rack.

14 - Loading capacity
Inspired by everyday life. Our goal is that our products should make your everyday life simpler. That is why we have worked so hard through the years to develop the market’s largest and most flexible rack systems. This time, we have been especially careful to first find out what people really put in their dishwashers. We then translated our newly acquired knowledge to a range of unique, innovative and practical rack solutions.

15-3/4" plates in lower rack
Our XXL dishwashers have room for a 40 cm big plate in the lower rack when the middle rack is removed and the upper rack in the upmost position.

Knife holders
Knives are sensitive things, so too are fingers. That is why we have done everything possible to protect both as best we can. Our knife holder is extra deep so that the blades remain steady throughout the wash cycle. There are knife holders on three levels: in the middle basket, in the upper basket and in the top basket. We guarantee a clean cut.

Focus points
Focus points - a hint of natureOpening the door of our new dishwasher can open your eyes to a few things. The high-grade steel might catch your attention at first. Then it may be one of the machine’s many clever features. These are highlighted with a color that mimics the ways in which nature brings focus to things. Closing the door puts the machine back in its place – where it doesn’t compete for space or attention – instead, it makes the room.
| Construction and performance | |
|---|---|
| No need to rinse the dishes thanks to Super Cleaning System™ | Yes |
| 8 Steel™ - Vital parts of the dishwasher made in stainless steel | No |
| Exterior handle | |
| Cleaning systems | Stainless steel spray arms Aqua Level™ Sensor No need to rinse the dishes thanks to Super Cleaning System™ Sensi Clean™ Sensor - measures dirtiness level 2 x WideClean |
| Number of spray zones | 7 |
| Number of spray arms | 3 pcs |
| Automatic water-softener for better washing performance | No |
| Functions, programs and modes | |
| Programs | Self cleaning Rinse and hold programme Time program Standard Intensive program Quick wash Auto wash Sanitize |
| Options and modes | Night mode - Lower noise level. The program time is extended. Speed mode - The program time is shortened. More energy is used. Time set Super Rinse™ - Two extra rinses Enable/disable automatic door opening |
| Delayed start | Possible to delay up to 24 hours |
| Interaction and control | |
| Language settings | Ukrainian, Swedish, Serbian, Slovenian, Slovak, Russian, Portuguese, Polish, Norwegian, Dutch, Latvian, Lithuanian, Japanese, Italian, Croatian, French, Finnish, Estonian, Spanish, English, German, Danish, Czech |
| Wash end indication | Displayed with sound and light |
| Remaining time indication | Yes |
| Status Light™ - Visual indication of dishwashing progress | Yes, spot on floor |
| Type of display | LCD display |
| Wifi | No |
| Use and flexibility | |
| Interior light | No |
| Automatic dosing system | No |
| Lower rack |
Cutlery basket Foldable/divisible rear pin row Handle with plastic logotype Small distance between the basket threads - makes loading easy and prevents small items to fall through. |
| Lower rack type | Core Premium |
| Middle basket | Without middle basket |
| Upper basket system | No |
| Upper basket | Small distance between the basket threads - makes loading easy and prevents small items to fall through Handle with plastic logotype Foldable wine shelves to left Foldable wine shelves to right Fixed pin rows Fixed glass support Standard knife stand Perfect ergonomy with easy sliding telescopic rails |
| Upper rack type | Core Premium |
| Top tray | No logotype Handle With telescopic rails Dividable and removable |
| Number of racks | 3 |
| Number of place settings | 14 pcs |
| Technical data | |
| Water connection | Hot or cold |
| Frequency | 60 Hz |
| Fuse | 15 A |
| Number of phases | 1 |
| Voltage (V) | 120 V |
| Connected load | 1300 W |
| Plug type | USA |
| Power consumption in standby mode | 1.7 W |
| Water consumption | 3 gal |
| Estimated annual water consumption | 647.5 gal |
| Energy consumption - normal program | 0.9 kWh |
| Estimated yearly energy consumption | 205 kWh |
| Duration of standard programme | 120 min |
| Reference programme | 1 Required inlet water pressure psi 0,3-1 Net weight 75 lb |
| Noise level (max) | 42 dB(A) |
| Max. temperature of inflow water | 140 °F |
| Safety and maintenance | |
| Indication of low level of rinse-aid | Notification in display |
| Child safety | Kid Safe™ - Lockable controls |
| Aqua Safe™ system | No |
| Aqua Safe™ | Anti Block™ - Self cleaning drain pump Light and sound alarm Maximum time for water intake Extra durable PEX inlet hose Stand-by water protecion - Leakage detection when machine is off Aqua Level™ Sensor - Ensures an optimized water level Aqua Detect™ - Instant recognition of any leakage in the motor compartment Detection of water leakage on the bottom plate Waterproof bottom plate Sealing points outside container |
| Design and integration | |
| Adjustable kick plate | 50-100/90-120 |
| Max Height adjustment | 1 15/16 '' |
| Depth (incl. wall spacing) | 21 7/8 '' |
| Min. niche height | 33 7/8 '' |
| Min. niche width | 24 '' |
| Possible to install elevated | Yes |
| Sliding door | No |
| Installation |
Multi fit outlet hose Integrated anti-siphon - Prevents spontaneous in- and outlet of water and simplifies elevated installation Steam protection strip |
| From front adjustable rear foot | Yes |
| From the front adjustable door spring | No |
| LOGISTIC INFORMATION | |
| EAN code | 3838783039378 |
| Product code | 746936 |
| Gross weight | 78.9 lb |
| Packaging depth | 26 3/16 '' |
| Packaging height | 36 1/4 '' |
| Packaging width | 25 3/16 '' |
| Dimensions | |
| Length outlet hose | 90 9/16 '' |
| Length inlet hose | 63 3/4 '' |
| Depth with door open | 48 1/2 '' |
| Length of electrical cord | 71 7/16 '' |
| Maximum product height | 35 11/16 '' |
| Depth | 21 7/8 '' |
| Height | 33 11/16 '' |
| Width | 23 13/16 '' |
