Features

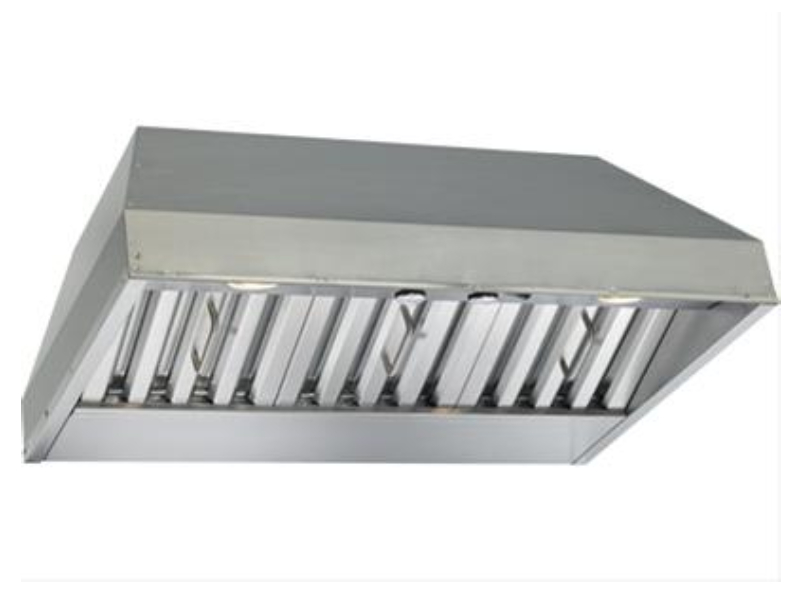

All-in-one design includes liner, blower, filtration, controls, lighting, and damper for easy installation into custom canopy hoods. Intended for all residential applications, including commercial-style cooking surfaces
| Installation Requirements | |
|---|---|
| Backdraft Damper | Included |
| Duct Direction | Vertica |
| Duct Size: Internal Blower | CP34 & CP35: 8", CP37: 10" |
| Electrical Connection | Direct Wire |
| Amps @ 120V | 9.0 Max |
| Accessories | |
| Fresh Air Inlet | 641FA, 643FA, 610FA |
| Universal MUA Damper | MD6TU, MD8TU, MD10TU |
| Liners | Not Available |
| CFM Reducer Kit | ARP8 (use with CP35 only) |
| Non-ducted Recirculating Kit | Not Available |
| Specifications | |
| Non-ducted Capability | No |
| Filter Type | Stainless Steel Baffle Filter |
| Remote Control | Not Available |
| Control Features | Heat Sentry™ |
| Control Type | Infinite Speed Rotary with Separate On/Off Control |
| Features | |
| Lighting Lamps Included | Yes |
| Lighting Levels | 2 |
| Number of Lamps | 2 |
| Lighting Type | Halogen, GU10, MR16, 50-watt |
| Hood Sizes | |
| Width | 40-3/8" |
| Depth | 19-1/4" |
