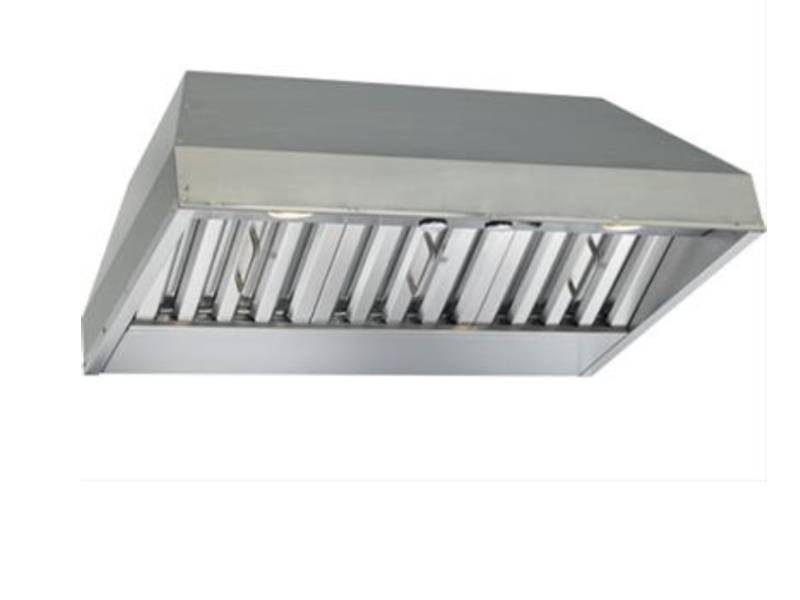

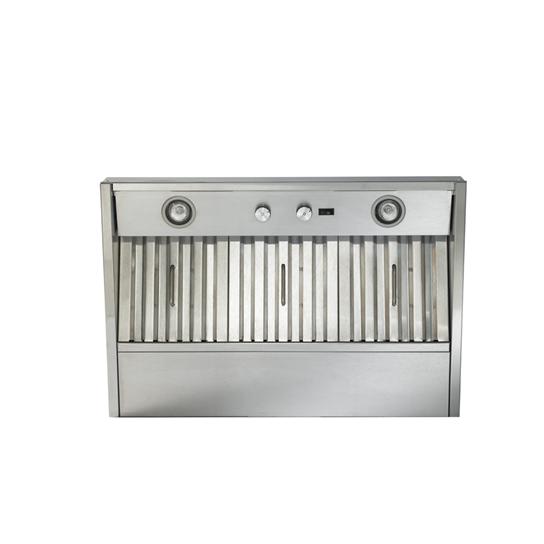

34" Best Built-In Range Hood with 670 MAX CFM Internal Blower in Stainless Steel - CP35I369SB
Literature
You may also like
Features
All-in-one design includes liner, blower, filtration, controls, lighting, and damper for easy installation into custom canopy hoods. Intended for all residential applications, including commercial-style cooking surfaces
- Powerful, centrifugal blower with high-efficiency motor produces 600 CFM
- Cabinet mount - custom applications
- Brushed Stainless Steel Finish
- Width: 34-3/8”
- Depth: 19-1/4”
- 670 Max Blower CFM
- Variable speed blower control with last setting memory
- Two-setting cooktop lighting (Uses two 50W, GU10 halogen lamps. Bulbs included.)
- Easily accessible, dishwasher safe stainless steel baffle filters with handles
- 8” round duct connector with backdraft damper
- Heat Sentry™ - automatically turns blower to high speed when excess cooking heat is detected
| Specifications | |
|---|---|
| Lighting Lamps Included | Yes |
| Lighting Levels | 2 |
| Number of Lamps | 2 |
| Lighting Type | Halogen, GU10, MR16, 50-watt |
| Finish | Brushed Stainless Steel (Grade 430) |
| Filter Type | Stainless Steel Baffle Filter |
| Control Type | Infinite Speed Rotary with Separate On/Off Control |
| Control Features | Heat Sentry™ |
| Accessories | |
| Universal MUA Damper | MD6TU, MD8TU, MD10TU |
| CFM Reducer Kit | ARP8 (use with CP35 only) |
| Fresh Air Inlet | 641FA, 643FA, 610FA |
| Installation Requirements | |
| Electrical Connection | Direct Wire |
| Amps @ 120V | 9.0 Max |
| Backdraft Damper | Included |
| Duct Direction | Vertical |
| Duct Size: Internal Blower | CP34 & CP35: 8", CP37: 10" |
