Jenn-air Luxury Redefined

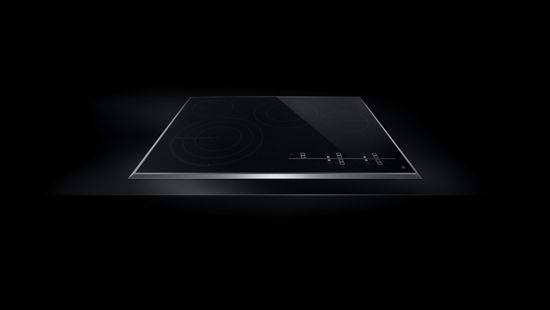

Indulge your untamed appetites with a fast-heating JennAir® radiant cooktop in sleek glass. The most powerful radiant cooktops in their classes* feature white LED emotive controls and a variety of element sizes and wattages.
Top 3 Features
Most Powerful Radiant Cooktop In Its Class

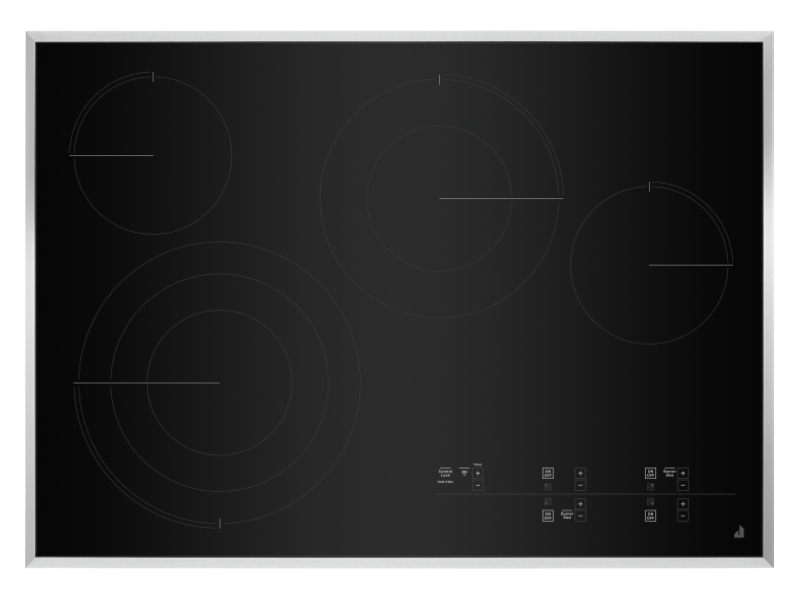

The four-element, 10,300-watt 30" JEC4430H is the most powerful radiant cooktop in its class
12" (30.5cm)/9" (22.9cm)/6" (15.2cm) Triple-Choice™ Element
Reaching up to a powerful 4,500 watts and capable of turning down as low as 1,400 watts, this three-tiered element provides versatility in power levels while accommodating various-sized cookware.
Emotive Controls
Striking, intuitive and easy to clean. Inviting controls wait expectantly for the lightest touch to unleash performance.
Additional Features
Most Powerful Radiant Element In The Industry
The 12"/9"/6" Triple-Choice™ element is the most powerful radiant element available on 36- and 30-inch electric radiant cooktops. It reaches up to 4,500 watts when all three tiers are activated.
Lustre Brushed Metal Design
Blur the lines of temptation with tight corners of lustrous brushed metal that will leave you reeling.

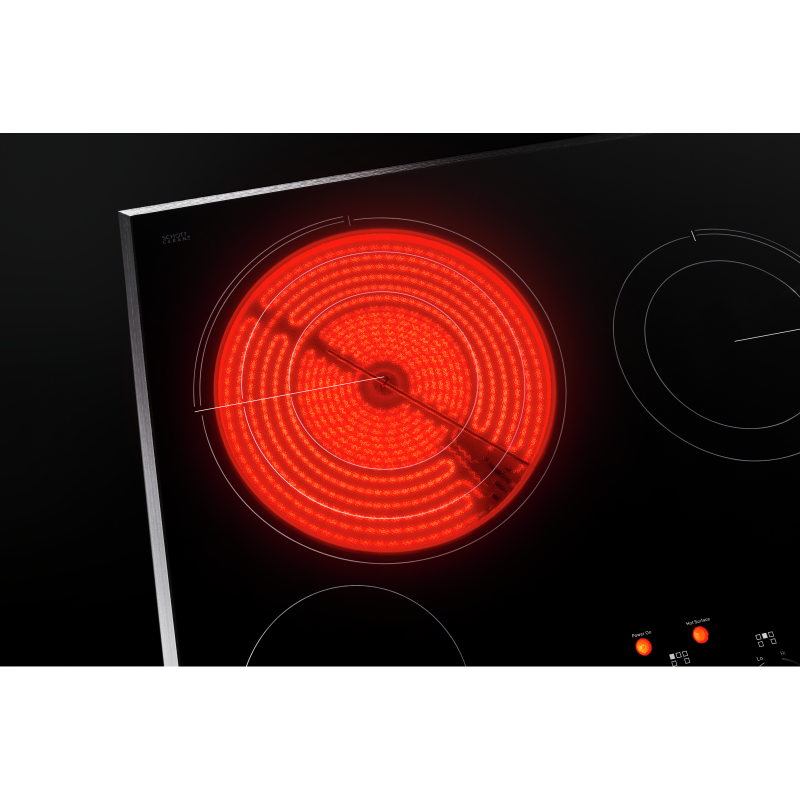

Radiant Elements
Waiting expectantly beneath the stillness of shadow-black glass, electric elements are coiled to deliver heat upon command.
Install Over Single Wall Oven
Versatility and functionality converge with the ability to install in a countertop above our single wall oven.
10”/6” Dual-Choice™ Rapid Boil Element
This two-tiered single element accommodates various-sized cookware in one location and can achieve an output of 3,200 watts of power so liquids boil quickly, while a wide temperature range adds cooking flexibility to simmer sauces and cook foods at low temperatures.
6” 1,300-Watt Single Element
A fast-heating element ideally sized for small sauce pans and sauciers that can reach up to 1,300 watts of power and as low as 300 watts.
Simmer Function on All Elements
Provides the optimal temperature for gently cooking delicate sauces and foods.
Keep Warm™ Function on All Elements
Reward anticipation. Low heat at power level 2 keeps tempting dishes at the right temperature until they’re ready to be served.
Serviced by a Select Few
We narrowed down our dedicated network to only the most experienced providers. Armed with extensive access to products and knowledge, their expertise is unmatched.
Hot Surface Indicators
Light(s) positioned at the controls instantly show which element is still hot—even if the element has been turned off.
Power On Indicator Light
See at a glance that power is on for an electric induction element.
Kitchen Timer
The kitchen timer can be set in hours, minutes, and seconds and counts down the set time. Setting a kitchen timer will remind you when it's time to check your food, but will not turn your burner element off.
Control Lock
Control Lock prevents unintended use of the cooktop and ensures complete, simple cleaning of the controls.
ADA Compliant
Designed to meet ADA standards when installed according to the ADA guidelines.
Cooktop Power Off Function
Conveniently turn off all radiant elements at once.
Dimensions | |
---|---|
Depth | 22 1/8 |
Width | 30 13/16 |
Height | 5 1/4 |
Cutout Depth | 20 3/8 |
Cutout Width | 29 1/16 |
Maximum Height | 5 1/4 |
Carton Depth | 25 |
Carton Height | 9 1/4 |
Carton Width | 35 |
Gross Weight | 46 |
Net Weight | 41.3 |
Certifications | |
Prop 65 | Standard |
ADA Compliant | ADA Height and Operation Compliant |
UL | Yes |
Description | |
Combinations with Oven | JJW2427,JJW2430,JJW3430 |
Cooktop Type | Traditional |
Fuel Type | Electric Radiant |
Size (in.) | 30 |
Features | |
Hot Surface Indicator Light | Yes |
Digital Display | No |
Automatic Pan Detection | No |
Downdraft Vent | No |
Heating Element On Indicator Light | Yes |
Installs Over Built-In Oven | Yes |
Griddle | NA |
LP Convertible | No |
Power Boost | No |
Power Outage Compatible | No |
CONTROLS | |
Infinite Heat Controls | No |
Control Location | Right |
Control Type | Electronic Touch |
Cooktop Details | |
Cooktop Element Style | Radiant |
Cooktop Surface Color | Black |
Number of Cooking Element-Burners | 4 |
Number of Open Bays | NA |
Center Rear Element-Burner Power | 3200/2300W |
Center Rear Element-Burner Size | 10"/6" |
Left Front Element-Burner Power | 4500/3000/1500W |
Left Rear Element-Burner Power | 1300W |
Right Rear Element-Burner Size | 6" |
Left Rear Element-Burner Size | 6" |
Left Rear Element-Burner Type | Standard |
Right Rear Element-Burner Type | Standard |
Right Rear Element-Burner Power | 1300W |
Cooktop Configuration | All Burners |
Left Front Element-Burner Size | 12"/9"/6" |
Left Front Element-Burner Type | Triple |
Center Rear Element-Burner Type | Dual |
DETAILS | |
Cooktop Surface Material | Glass |
Electrical | |
Amps | 40 |
Power Cord Included | No |
Volts | 240 |
208V Compatible | Yes |
Hz | 60 |
Refinement | |
Style | Cooktops |
Energy | |
Annual Energy Usage [kWh] | 258 |
Design Type | |
Design Expression | Lustre Stainless |
