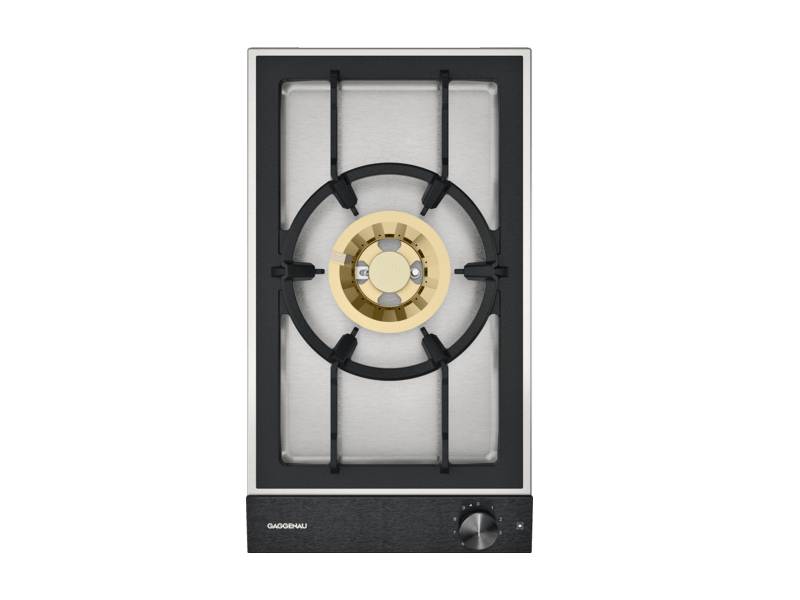

12" Gaggenau Vario 200 Series Gas Wok Cooktop - VG231220CA

• Can be combined with cooktops of the Vario 200 series to a harmonic unity
• Control panel for comfortable and secure operation
• Mechanical power level regulation for 9 power levels, with exact setting and reproduction of flame size
• Multi-ring burner of solid, heat-resistant brass as used in professional kitchen
• Electric ignition of burner. Simply press the knob, turn it and hold it there until a stable flame burns

Additional information

Cooking zones

• 1 multi-ring wok burner 1,000 - 18,800 BTU (300 W – 5500 W), suitable for pots up to max. ø12 5/8"

Operation

• Control knobs with illuminated ring.
• Integrated control panel.
• One-handed operation.
• Electric ignition.
• To close the cover, the cast iron pan support can be easily reversed.

Features

• Cast iron pan support.
• Brass burner rings.

Safety

• Thermoelectric safety pilot.
• Residual heat indicator.
• Operation indicator.

Planning notes

• Special nozzles can be ordered as spare parts.
• Appliance can be snapped into the countertop from above.
• Above countertop minimum clearance of at least 11 13/16" from adjacent heat-sensitive furniture or contact surfaces must be observed or thermal insulation must be installed.
• Minimum distance between gas cooktop(s) with more than 37,533 BTU (11kW) and ventilation hood must be 30" (76cm).

Rating

• Total rating: 58,000 BTU (5.5 KW).
• Total Amps: 1 A. 120 V / 60 Hz
• Connecting cable 55" with plug.
