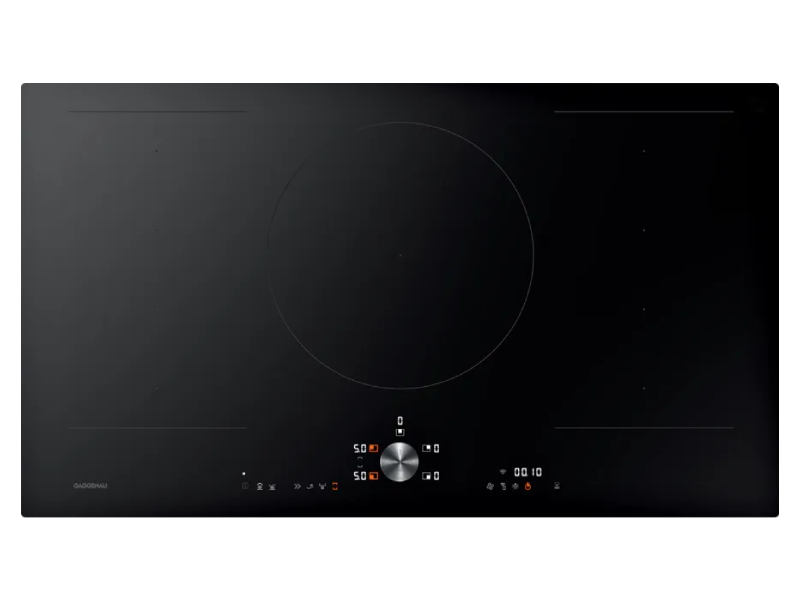

36" Gaggenau 200 Series Flex Induction Cooktop - CI292602
Literature
You may also like
Highlights
- Frameless for flush mounting
- Flex function for combining the rectangular cooking areas
- Free positioning of cookware inside combined cooking areas
- Cooking sensor function for temperature control in pots
- Frying sensor function for temperature control in pans
Additional Information
Cooking zones
- 2 flex induction cooking areas 19x21,5 cm (2200 W, with booster 3600 W), linked together 38x21,5 cm (3300 W, with booster 3600 W).
- 2 flex induction cooking areas 19x21,5 cm (2200 W, with booster 3600 W), linked together 38x21,5 cm (3300 W, with booster 3600 W).
- 1 induction cooking zone ø 8 1/4" (21cm) (2200 W, with booster 3700 W), automatically switches to ø 10 1/4" (26cm) (2600 W, with booster 3700 W) and to ø 12 5/8" (3300 W, with booster 3700 W).
Operation
- Twist-Pad control with removable magnetic knob.
- User friendly control with bicoloured display (white / orange).
- Cooking zone and cooking area marking.
- Electronic power control in 17 output levels.
Features
- Flex function for rectangular cooking areas.
- Cooking sensor function (in use with cooking sensor CA 060 600).
- Frying sensor function.
- Booster function for pots.
- Booster function for pans.
- Keep warm function.
- Stopwatch.
- Short-term timer.
- Options menu.
- Power management.
- Cooktop-based ventilation control (with suitable hood).
- Home network integration for digital services (Home Connect) wireless via WiFi.
- The use of the Home Connect functionality depends on the Home Connect services, which are not available in every country. For further information please check: home-connect.com.
Safety
- Main switch.
- Operation indicator.
- Pot detection.
- Digital 2 stage residual heat indicator
- Child lock.
- Safety shut-off.
Planning notes
- Operates with magnetic (induction) iron pots and pans only. For an optimal heat distribution, the use of sandwich bottom cookware is recommended.
- The wok pan WP 400 001 cannot be used with this appliance.
- Appliance must be fixed from underneath.
- Appliance weight: approx. 29 kg.
Connection
- Total rating: Connected load: 9360 W
- Total Amps: 50 A.
- 208 - 240 V / 60 Hz.
- Plan for a 37'' connecting cable without plug (hardwire required).
- Please check the user manual for how to switch off the WiFi module.
