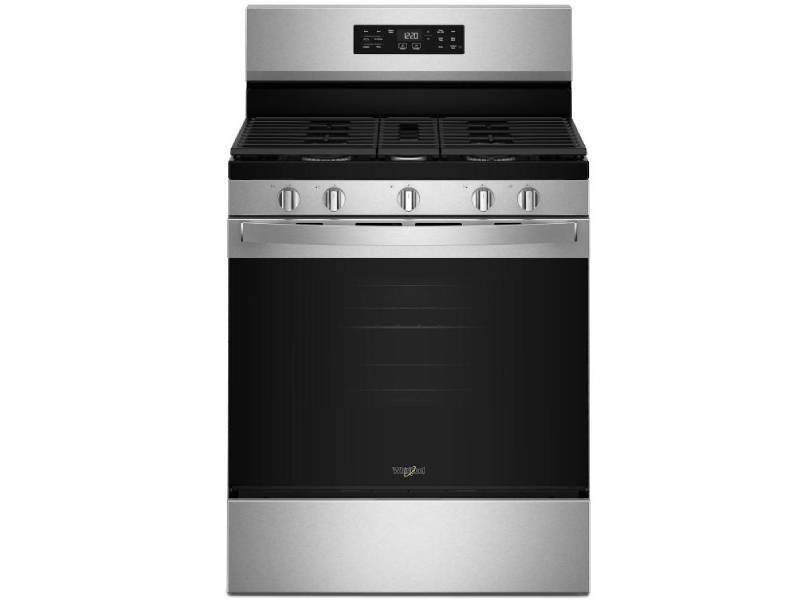

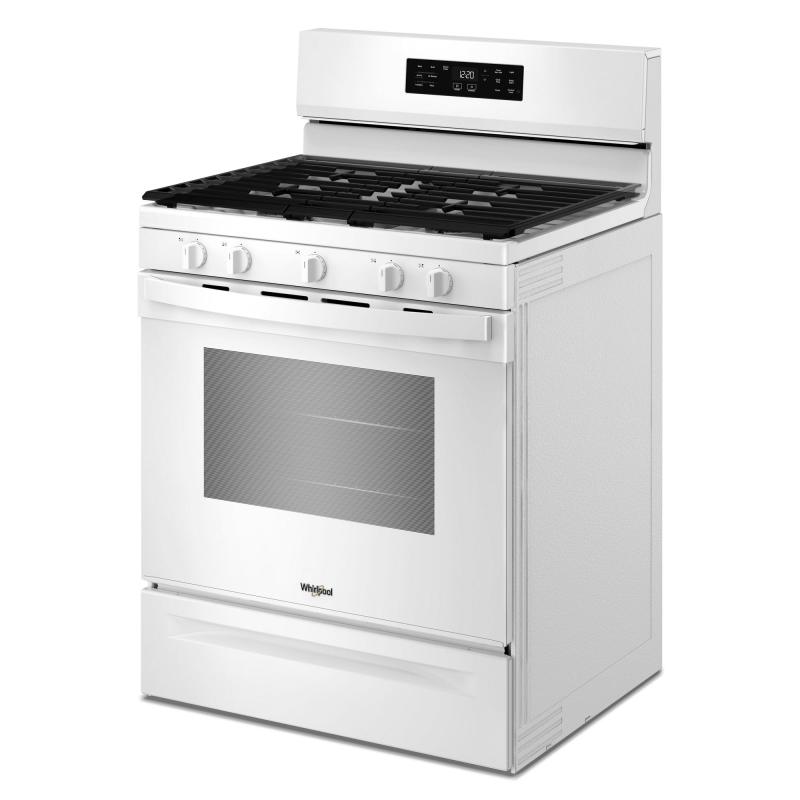

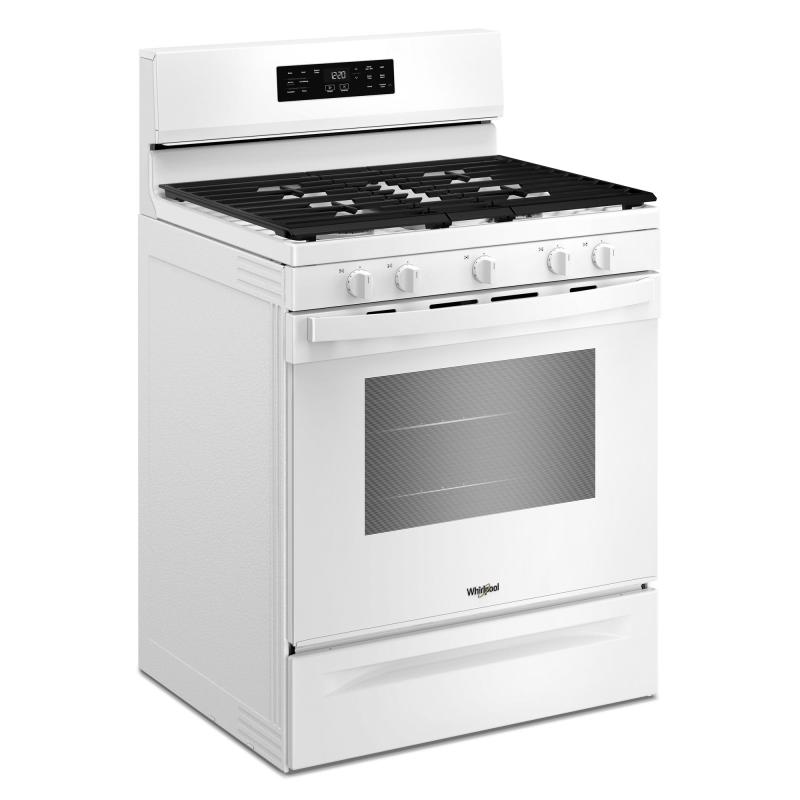

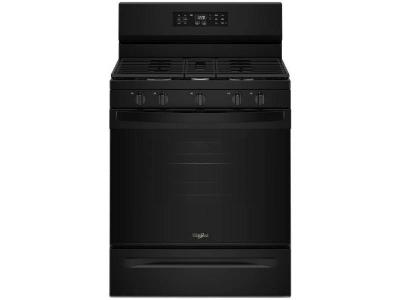

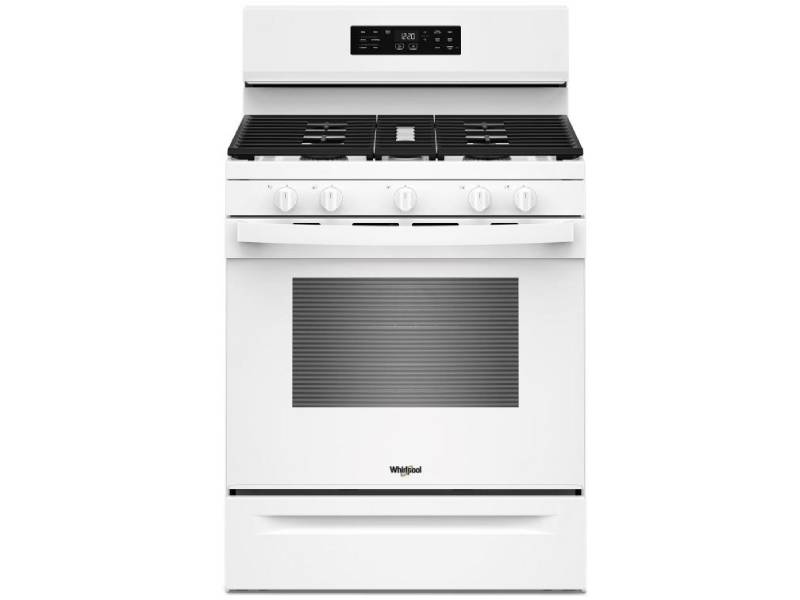

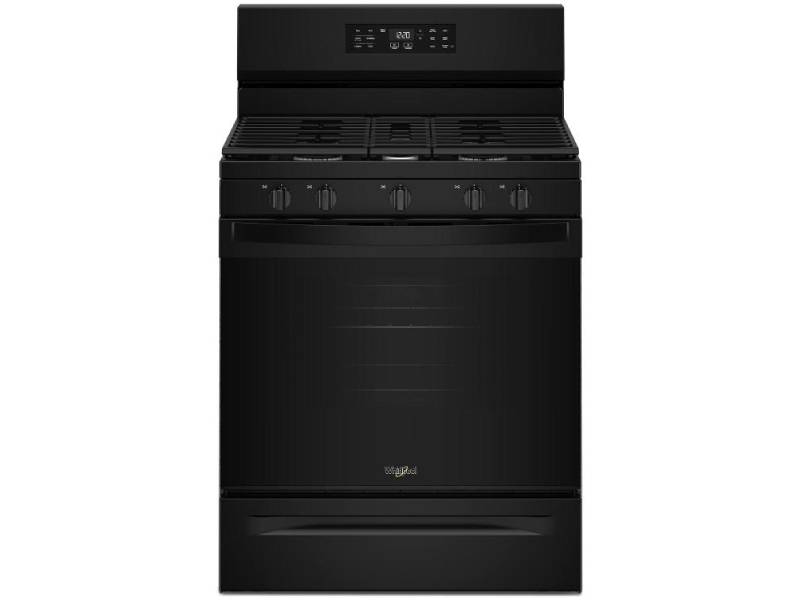

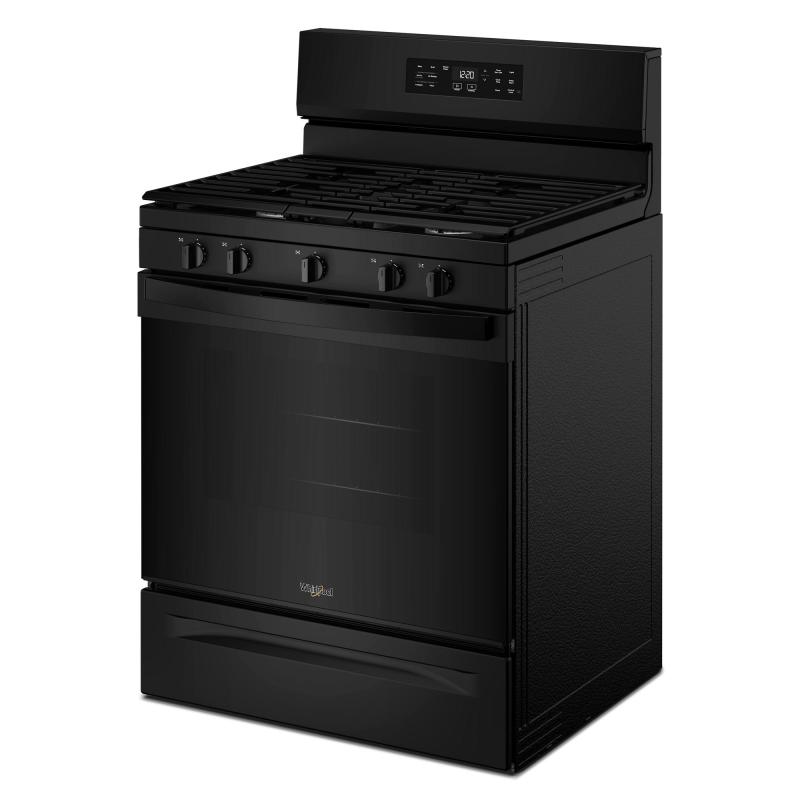

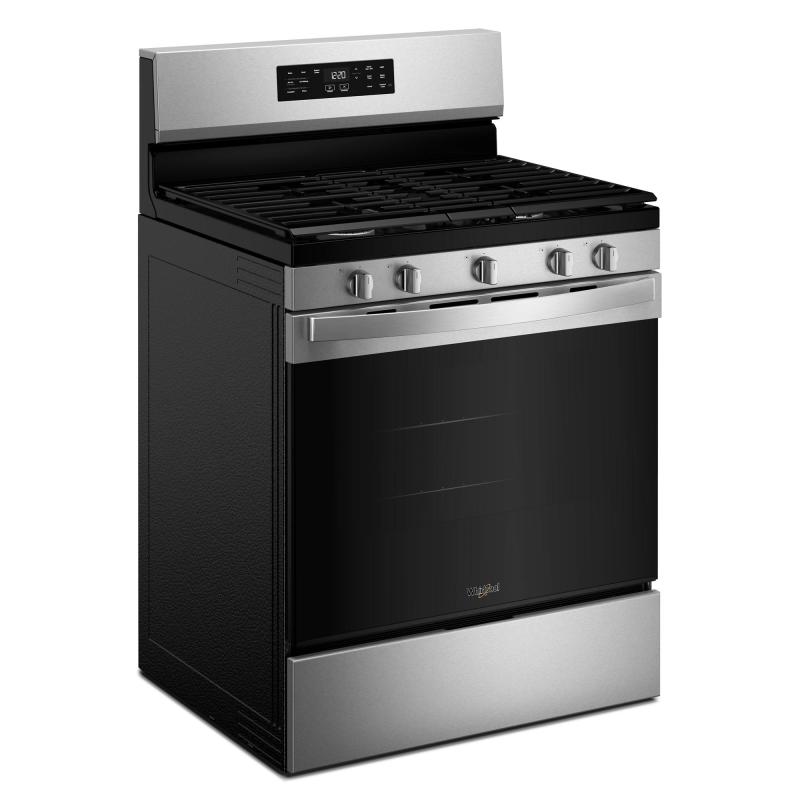

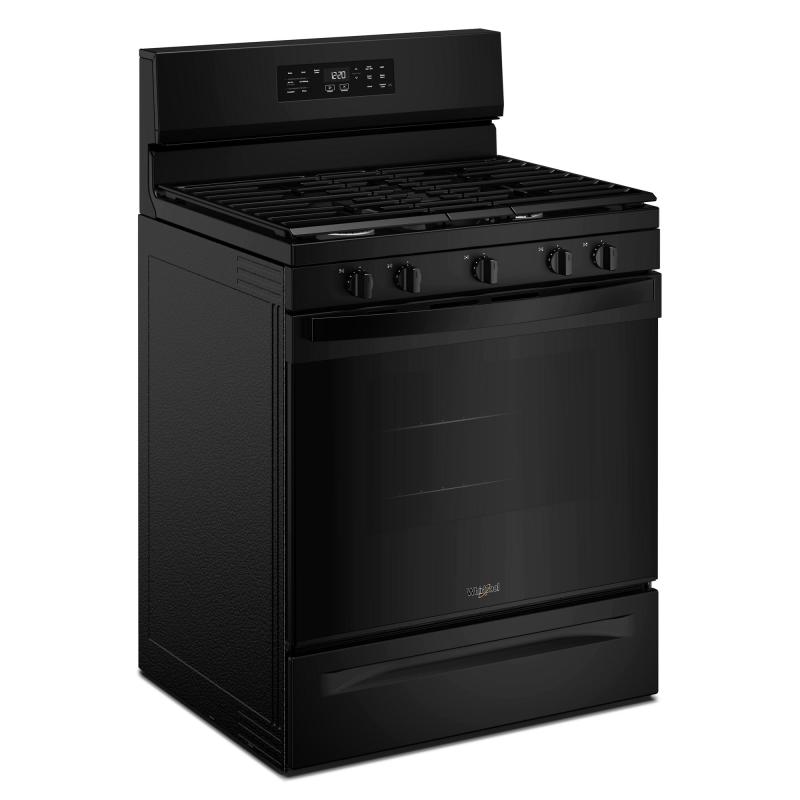

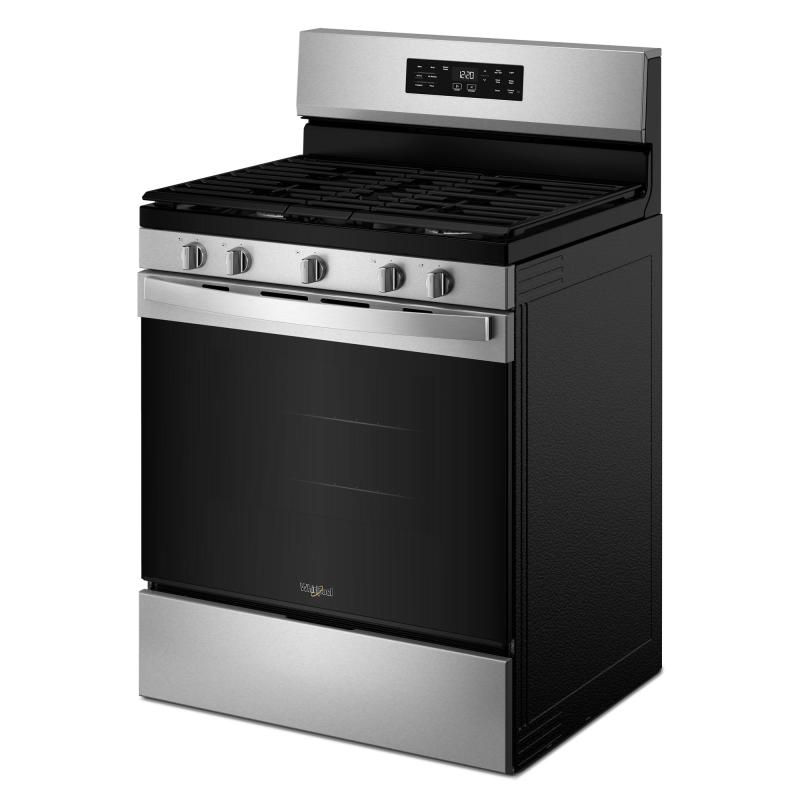

30" Whirlpool Gas Range with Air Cooking Technology and Steam Clean - WFGS4530SZ

Top Features
Air Cooking Technology
Experience the Difference with Air Cooking Technology, featuring more airflow with No Preheat Air Fry and Air Baking.
(Compared to thermal bake.)
Cooking Modes
Make more feel-good meals with a variety of cooking modes. Choose from modes that use Air Cooking Technology, like No Preheat Air Fry and Air Baking, or use traditional thermal cooking modes like Bake or Broil.

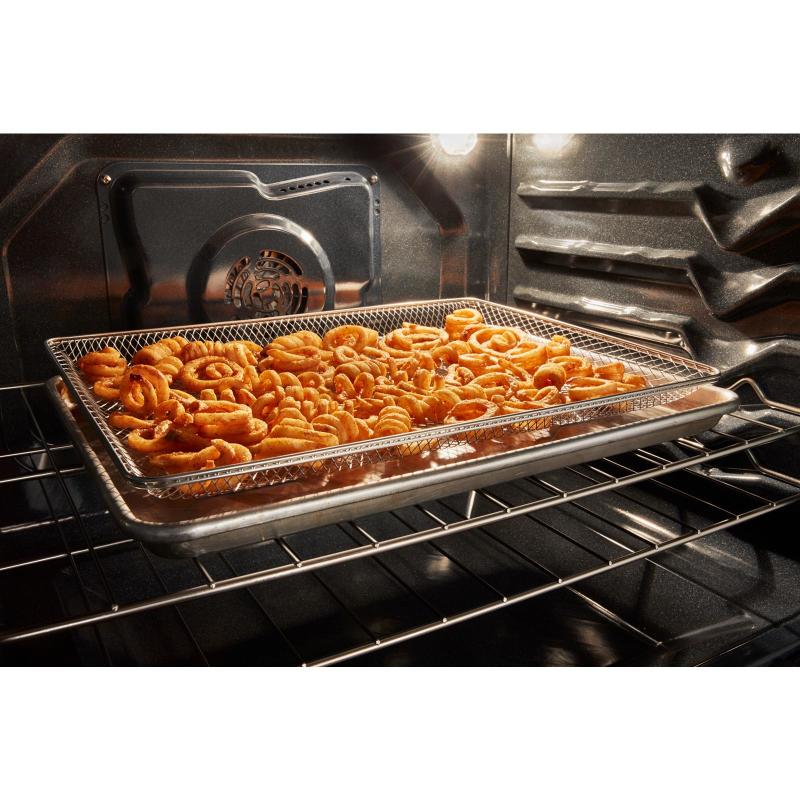

No Preheat Air Fry
Save up to 20 minutes* and get the right heat at the right time with our most advanced air fry mode. Get fast, crispy results on chicken wings and mozzarella sticks without the guilt. *Compared to WFE550S0LZ
Additional Features

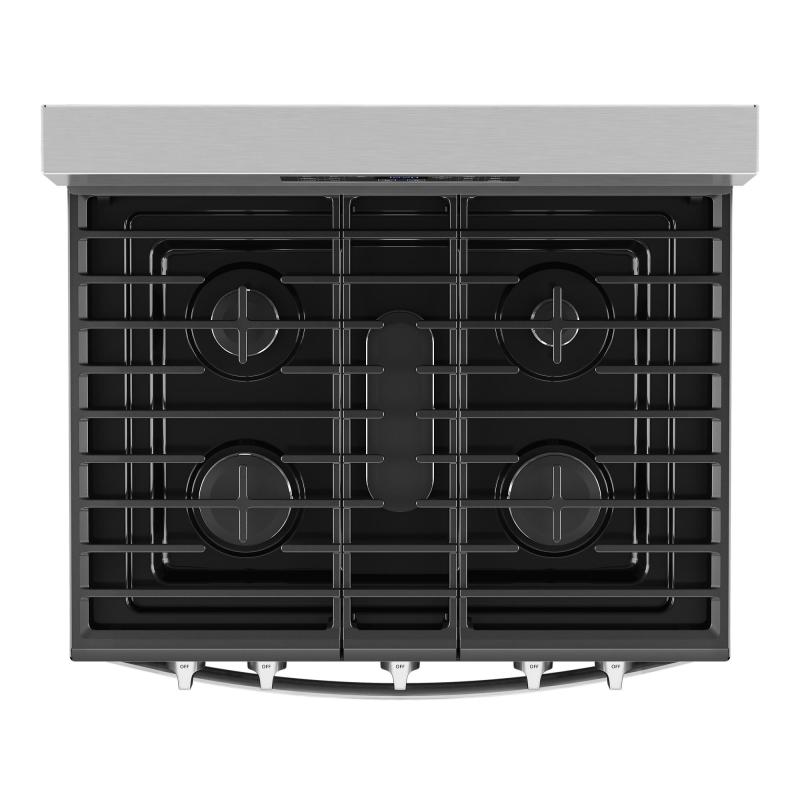

Griddle Zone
Maximize your cooking space for a variety of mealtime options with the 8,000 BTU Griddle Zone. One long, oval-shaped burner makes it easy to cook up all that delights, all at once.
Steam Clean
Use the Steam Clean cycle regularly to help prevent large soils from building up. To quickly and easily loosen light messes inside the oven without harsh chemicals or cleaners—just add water, run the cycle, and wipe away.
Air Baking
Go from gooey to golden and get even results when baking on multiple racks with Air Baking. Our high-speed fan optimizes air flow and drives consitent heat throughout the oven. Get golden results on breads, pastries and more.
SpeedHeat™ Burner
Use the SpeedHeat Burner to boil 20% faster* with high heat, so you can get dinner to the table quickly. *Compared to 9.5K burner on the same model.

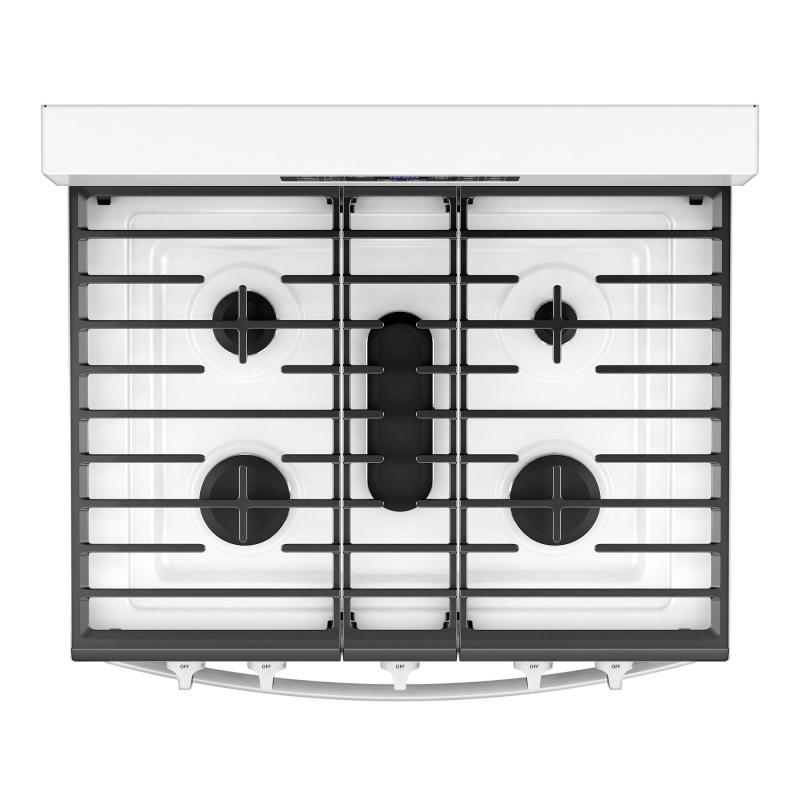

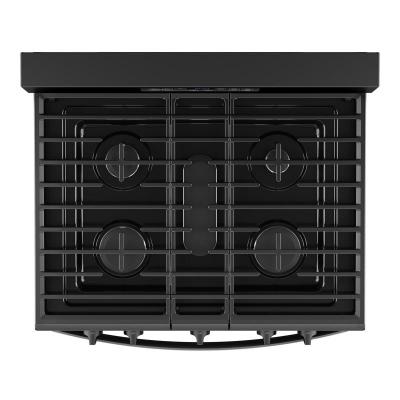

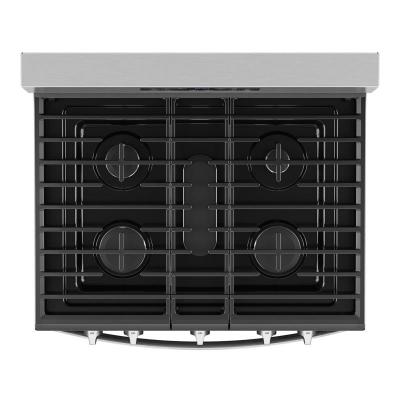

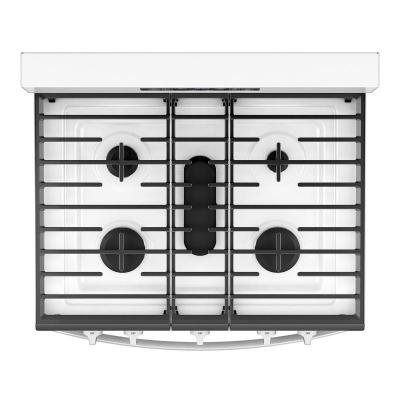

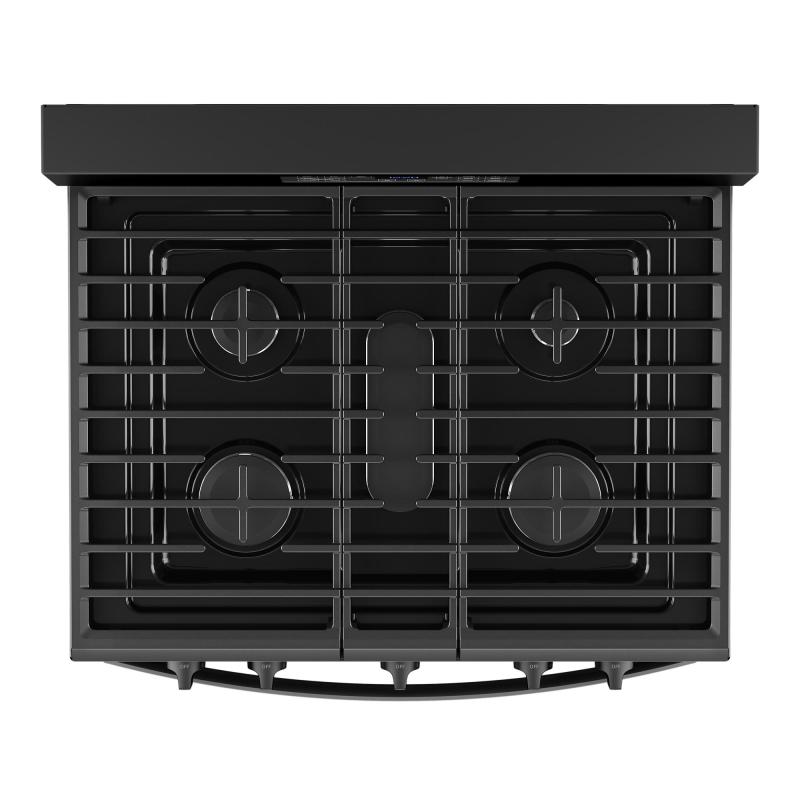

Edge-to-Edge Grates
Enjoy plenty of space to sauté, boil and simmer with Edge-to-Edge Cast-Iron Grates and the flexibility of a cooktop with a range of burner sizes and power levels.
No Preheat Mode
Take preheating off your plate with No Preheat Mode. Simply place your food in the oven and start baking. The oven will adjust the cook time for frozen pizzas and more.
Bake
Spend less time monitoring with a built-in temperature sensor to help Bake evenly. This sensor manages oven temperature for delicious results every time.
Broil
Redefine mealtime with Broil to make crispy-melty nachos, juicy-seared meat, toasty grilled cheese and more.
Cooktop Flexibility
Easily cook multiple dishes at once with a flexible cooktop that offers a range of element sizes and power levels.
Large Capacity Oven
Cook for a crowd and fit large dishes, like a full-sized turkey, into the spacious, large-capacity 5.0 cu. ft. oven.

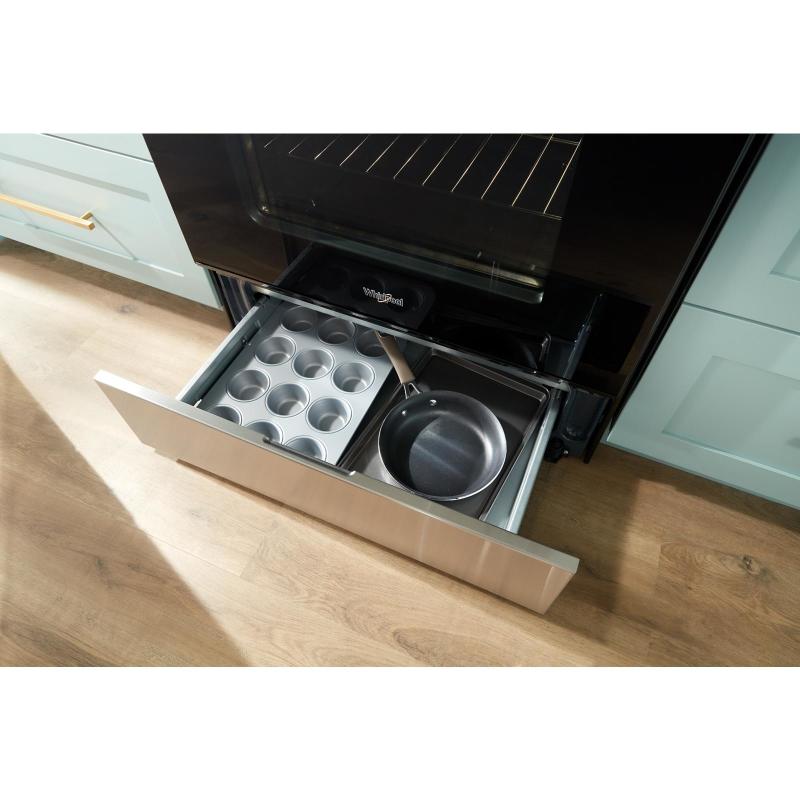

Storage Drawer
Easily store kitchen items from baking sheets to cooking pans in the storage drawer to free up space elsewhere in your kitchen.
Sabbath Mode
Sabbath mode keeps the oven in Bake mode until it can be shut off, allowing you to cook and warm food during the Sabbath. All other oven settings, including temperature displays, sounds, changes in light status and cleaning cycles will be disabled.
| DETAILS | |
|---|---|
| Number Of Oven Racks | 2 |
| Number Of Rack Guides | 5 |
| Oven Cleaning Type | Steam Clean |
| Oven Control Knob Type | N/A |
| Broiler Location | Top Center |

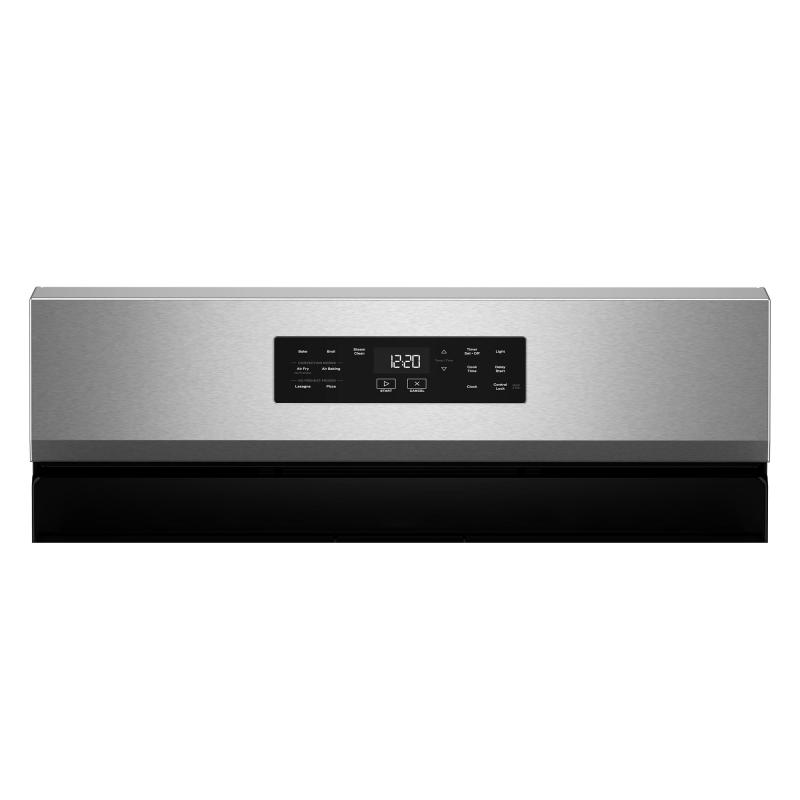

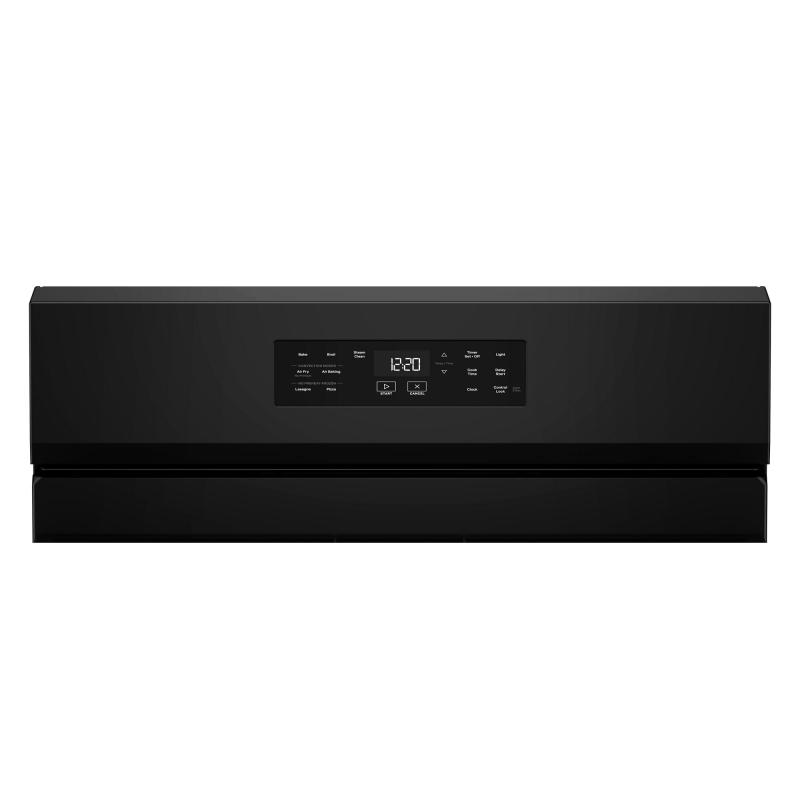

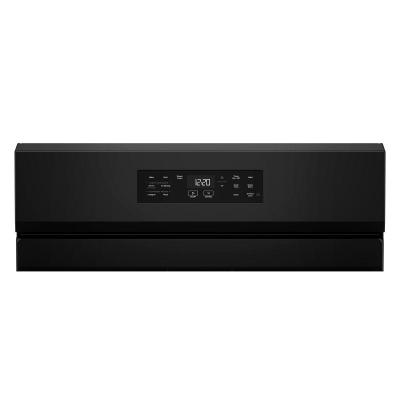

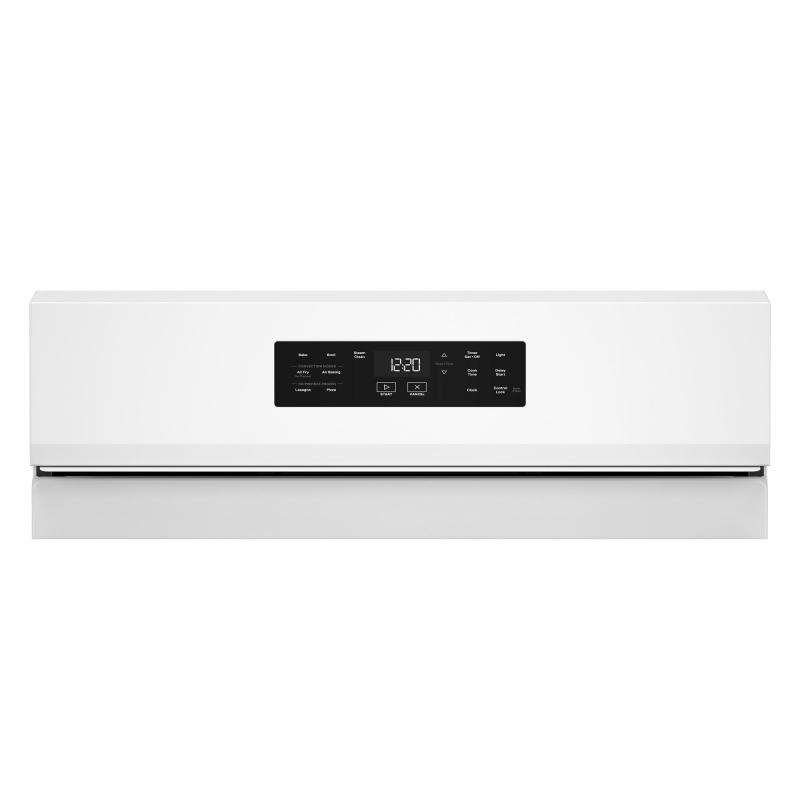

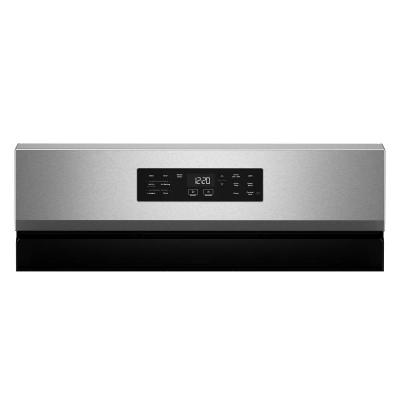

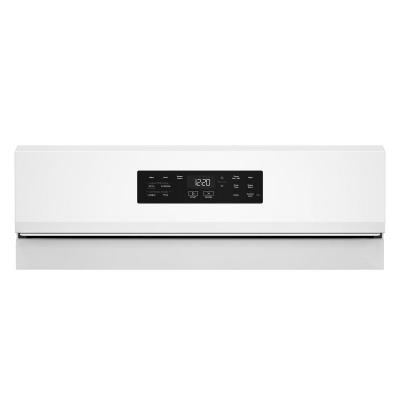

| Oven Control Type | Tap Touch |
| Oven Cooking System | Convection |
| Oven Interior Depth In Inches | 18.5 |
| Oven Interior Width In Inches | 24.5 |
| Oven Light Switch Location | Oven Control |
| Oven Rack Type | 2 Standard |
| Oven Light Type | Halogen |
| Rack Guide Type | Embossed |
| Bake Element Power | 2400W |
| Broiler Element Power | 1300WElectricBroil |
| Oven Control Location | Rear Control |
| Convection Element Type | Fan |
| Convection Functions | No |
| Cooktop Surface Material | Porcelain Coated Steel |
| Hidden Bake Element | N/A |
| Number Of Oven Lights | 1 |
| Interior Color | Grey |
| Dimensions | |
| Depth Closed Including Handles | 28.0 " |
| Capacity FT3 (cubic feet) | 5.0 |
| Minimum Height | 46.7 " |
| Maximum Height | 52.2 " |
| Depth With Door Open 90 Degree | 46.69 " |
| Gross Weight | 173.0 lbs |
| Depth Closed Excluding Handles | 25.31 " |
| Cutout Width | 30.0 " |
| Cutout Height | 36.0 " |
| Cutout Depth | 24.0 " |
| Carton Height | 49.0 " |
| Carton Width | 32.0 " |
| Carton Depth | 29.0 " |
| Height | 47.88 " |
| Width | 29.88 " |
| Depth | 27.75 " |
| Cooktop Details | |
| Right Front Element Burner Power | 15000BTU |
| Right Front Element Burner Size | N/A |
| Right Front Element Burner Type | Extra Large |
| Right Rear Element Burner Power | 5000BTU |
| Right Rear Element Burner Size | N/A |
| Right Rear Element Burner Type | Simmer |
| Center Rear Element Burner Power | 8000BTU |
| Center Rear Element Burner Type | Sealed Burner |
| Center Rear Element Burner Size | N/A |
| Cooktop Configuration | All Burners |
| Cooktop Control Location | Backguard |
| Cooktop Control Type | Knobs |
| Cooktop Element Style | Sealed Burners |
| Grate Details | Dishwasher Safe Matte Finish Porcelain Coated Steel Grates |
| Ignition Type | Direct Spark Ignition |
| Left Front Element Burner Power | 15000BTU |
| Left Front Element Burner Size | N/A |
| Left Front Element Burner Type | Large |
| Left Rear Element Burner Power | 9500BTU |
| Left Rear Element Burner Size | N/A |
| Left Rear Element Burner Type | Standard |
| Number Of Cooking Element Burners | 5 |
| Auto Re Ignition | Yes |
| Number Of Grates | 3 |
| Description | |
| Size In | 30 |
| Range Type | Freestanding |
| Exterior | |
| Door Removable | Yes |
| Drawer Type | Storage Drawer |
| Handle Type | Reach-Through Handle |
| Handle Material | Metal |
| Handle Color | Print Resist Stainless Steel |
| Electrical | |
| Power Cord Included | Yes |
| Amps | 15 |
| Volts | 120 |
| Hz | 60 |
| Watts | 1400 |
| Certifications | |
| ADA Compliant | No |
| UL | Yes |
| CUL | Yes |
| Star K Certified | Star K Certified |
| Configuration and Overview | |
| Fuel Type | Gas |
| Configuration | |
| Oven Configuration | Single Oven |
| Range Configuration | Freestanding |
| CONTROLS | |
| Control Type | Knobs |
| Knob Color | Print Resist Stainless Steel |
| Knob Type | Plastic |
| Specifications | |
| Dishwasher Safe | Yes |
| Cast Iron Vs Porecelain | Porcelain Coated Grates |
| Optional Accessories | 4396096RB, W11692811 |
| Country Of Origin | USA |
| Matte Finish Vs Satin Finish | Matte Finish |
| Features | |
| Hot Surface Indicator Light | Yes |
| Heating Element On Indicator Light | Yes |
| Griddle | No |
| Automatic Convection Conversion Temperature Adjust | No |
| LP Convertible | Yes |
| Natural Gas Convertible | No |
| Power Outage Compatible | Yes |
| Total Gas Btus Cooktop | 47,500 |
| Total Gas Btus Oven S | 16,500 |
