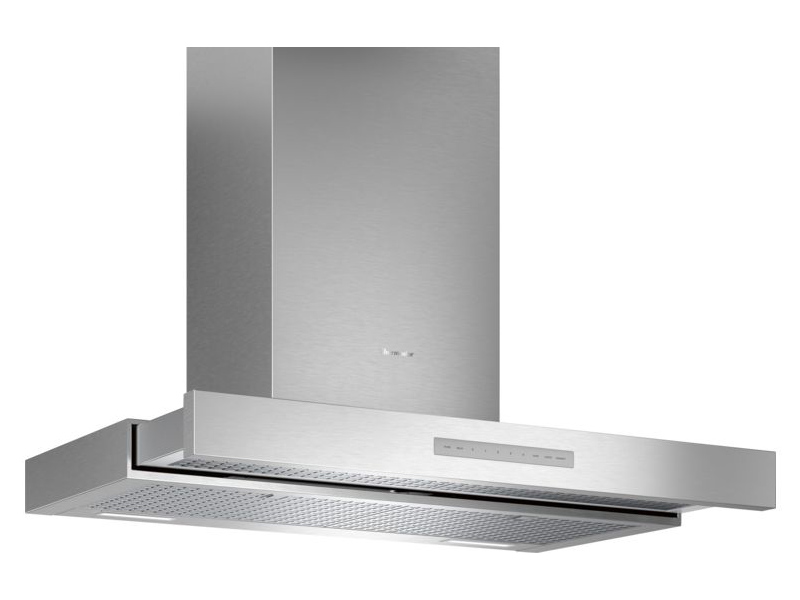

36" Thermador Masterpiece Drawer Chimney Wall Hood, 600 CFM - HDDB36WS
Literature
You may also like
Masterpiece Chimney Drawer hoods blend luxury and performance, featuring a canopy that can be pulled forward or pushed back.
- Pull canopy open for increased capture, or push back for flush design
- Noise Control Deluxe reduces noise up to XX% compared without it
- Equipped with the Thermador Connected Experience by Home Connect
- Cooktop Hood Sync enables control through Freedom Induction Cooktop
- Features automatic mode, delay shut-off, and check filter light
Design
- Sleek, smooth touch control make cleaning easy with a damp cloth
- Beautiful illumination with white multiple level LED lighting
- 0-100% light slider in Home Connect app allows perfect level of light
- Dishwasher-safe hybrid mesh filters with stainless steel frame
- Chimney extension kit for 9'-12' tall ceilings sold separate
- Built-in remote control panel accessory available, sold separate
| General | |
|---|---|
| Depth of the product | 462 mm |
| Installation Type | Built-in |
| Air circulation | Convertible |
| Control Type | Illuminated buttons, touch control |
| Construction type | |
| Diameter of air duct (mm) | 150 mm |
| Colour | Stainless steel |
| Installation Type | Wall-mounted |
| Material | Stainless steel |
| Material chimney | Stainless steel |
| Motor location | Integrated motor in hood chimney |
| Number of Motors | 1 |
| Air circulation | Convertible |
| Typology | Pull-out |
| Connection | |
| Watts (W) | 476 W |
| Power cord length (cm) | 0 cm |
| Frequency (Hz) | 60 Hz |
| Total output power of the motors | 476 W |
| Volts (V) | 120 V |
