Thermador DWHD770CFP

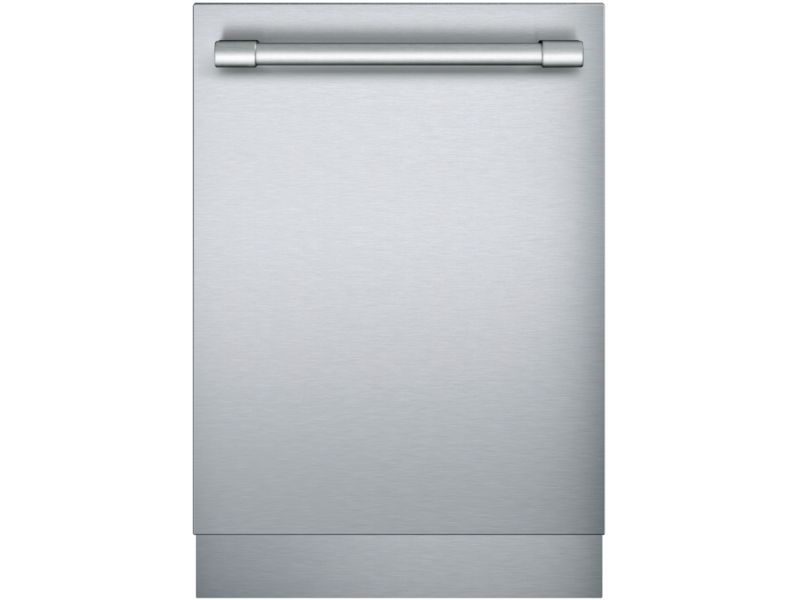

24" Thermador Dishwasher in Stainless steel - DWHD770CFP

Thermador DWHD770CFM
24" Thermador Dishwasher in Stainless steel - DWHD770CFM
Thermador DWHD770CFP
24" Thermador Dishwasher in Stainless steel - DWHD770CFP
Thermador DWHD770CPR
24" Thermador Dishwasher Custom in Panel Ready - DWHD770CPR


Authorized Dealer Price Match Guarantee
Price Match Guarantee
Best Brand Appliance offers a price match guarantee for lower priced items on identical in-stock items from competing authorized dealers. Exclusions Apply*.



Toronto:   (416) 901-6383
Vaughan: (905) 264-3137
Oakville/Burlington: (905) 592-0269


More options
Literature

Highlights

Stainless Steel Panel with Professional Handle

Professional style bold brushed stainless steel handles



StarDry with Zeolite

Introducing StarDry with Zeolite, and exclusive Thermador drying solution. Without the use of chemicals, and with no need for replenishment, our StarDry with Zeolite can even dry containers with hard-to-reach crevices. No one dries better.



Star Glow illuminates your dishwasher with any color of your choice when paired with Home Connect

A Thermador exclusive, Star Glow illuminates the inside of the dishwasher in a variety of colors, so you can set the mood that matches the occasion via the Thermador Connected Experience by Home Connect



WiFi-Enabled: monitor and control your appliance remotely, via the Home Connect app, works with smart home devices and services like Amazon Alexa

WiFi-Enabled: monitor and control your appliance remotely, via the Home Connect app, works with smart home devices and services like Amazon Alexa


  • StarDry : Uses Zeolite technology to absorb moisture, and dry containers with hard-to-reach crevices. No other dishwasher dries better.
  • Powerfully Quiet: enjoy a signature cleaning cycle at 42 dBA, perfect for after-dinner conversation
  • Star Glow illuminates your dishwasher with any color of your choice when paired with Home Connect Close
  • WiFi-Enabled: monitor and control your appliance remotely, via the Home Connect app, works with smart home devices and services like Amazon Alexa
  • Time remaining PowerBeam: shines a countdown of the remaining time of the cycle on the floor
Construction type
Installation typeBuilt-in
Panel readyNot possible
Drying systemInherent heat, Zeolith
Height of the product860 mm
Concealed heating elementYes
Installation TypeBuilt-under
Water softenerYes
Tub materialStainless steel
Removable topNo
Width of the product598 mm
SIZE AND WEIGHT
Overall appliance dimensions (HxWxD)860 x 598 x 602 mm
Depth with open door 90 degree1,231 mm
Maximum height for installation890 mm
Minimum width for installation610 mm
Maximum width for installation618 mm
Depth for installation610 mm
Height of removable worktop0 mm
Net weight46.6 kg
Programmes
Status indicatorEnd of program audible, rem. time proj. White, sanitized LED US, water inlet
List of programmesAuto 53-60
Program 1Intensive
Program 2Auto
Program 3Economy
Program 4Delicate
Program 5Quick L
Program 6Quick S
Program 7Pre-Rinse
Programme duration, programme1 (min.)110-135
Programme duration, programme3 (min.)130-135
Programme duration, programme2 (min.)105-129
Programme duration, programme4 (min.)75-85
Programme duration, programme5 (min.)60
Programme duration, programme6 (min.)30
Programme duration, programme7 (min.)9
Temperature, programme 1 (°C)66-71
Technical Overview
Overall appliance dimensions (HxWxD)860 x 598 x 602 mm
ColorStainless steel
General
Installation typeBuilt-in
Installation TypeBuilt-under
ColorStainless steel
Color / Control PanelGrey
Removable topNo
Panel readyNot possible
Adjustable plinthNo
Maximum number of place settings (EU 2017/1369)16
List of programmesAuto 53-60
Cycle Optionshalf load, HygienePlus, Intensive Zone, Remote Start, VarioSpeed, Zeo Dry
aquaStopNo
Drying systemInherent heat, Zeolith
3rd RackMyWay Rack
Accessories Partsbaking-sheet spray head grey
Construction type
Color / Material housingLacquered
Color / Control PanelGrey
Consumption values
Water consumption, programme 4 (l)9-14.6
Water consumption, programme 5 (l)14.3
Water consumption, programme 6 (l)10.5
Water consumption, programme 7 (l)4.1
Maximum temperature for water intake (°C)60
Maximum number of place settings (EU 2017/1369)16
Connection
Watts1,440 W
Power cord length170 cm
Fuse protection12 A
Length outlet hose230 cm
Consumption values
Water consumption, programme 3 (l)8.8-21
Water consumption, programme 2 (l)12.9-24.1
Connection
Plug typeNema5-15P
Programmes
Temperature, programme 2 (°C)53-60
Temperature, programme 3 (°C)45-58
Temperature, programme 4 (°C)45-50
Temperature, programme 5 (°C)50
Temperature, programme 6 (°C)45
SAFETY
aquaStopNo
ChildLockNo
Consumption values
Glass protectionYes
Energy consumption, programme1 (kWh)1.15-1.24
Energy consumption, programme2 (kWh)0.74-0.89
Energy consumption, programme3 (kWh)0.82-0.87
Energy consumption, programme4 (kWh)0.5-0.57
Energy consumption, programme5 (kWh)0.9
Energy consumption, programme6 (kWh)0.52
Water consumption, programme 1 (l)18.6-24.2
