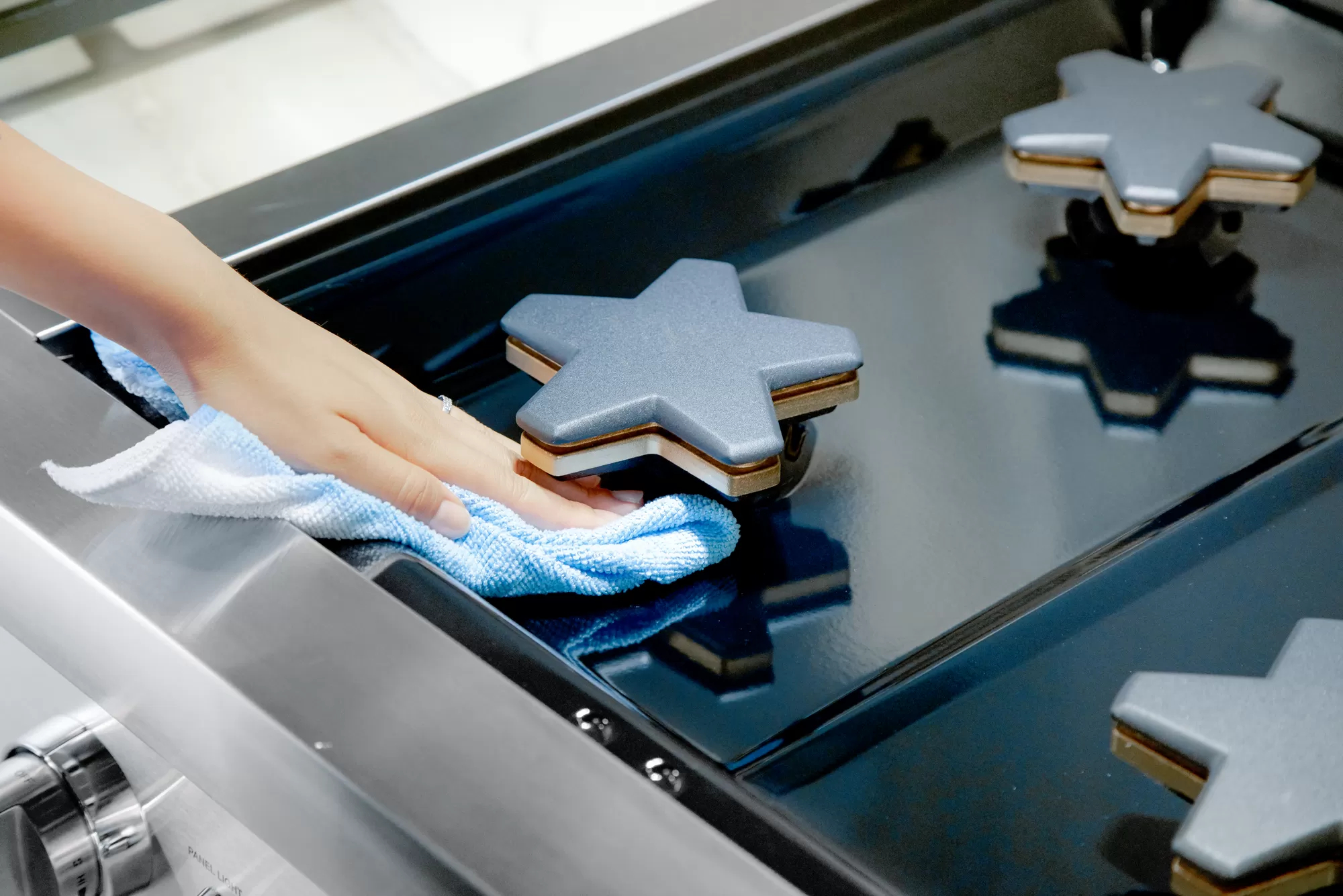

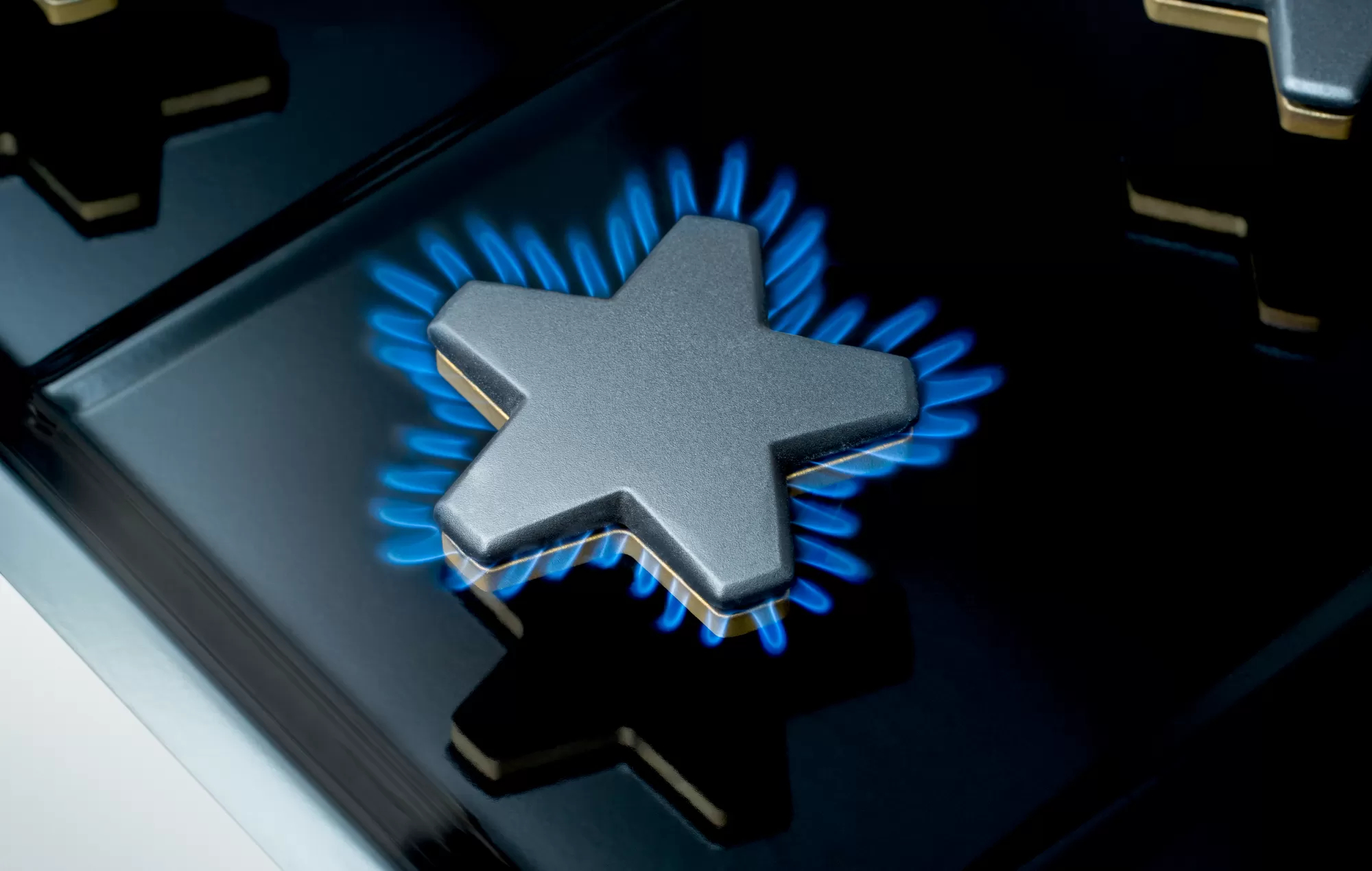

Non-stick griddle and Star® Burners deliver superior power and heat distribution, connected oven for remote control and monitoring
INNOVATION
PERFORMANCE
DESIGN
| TECHNICAL DETAILS | |
|---|---|
| Circuit Breaker | 20 A |
| Volts | 120 V, 60Hz |
| Energy Source | Gas |
| Plug Type USA | 120V – 3 Prong |
| Power Cord Length | 65" (1,651mm) |
| Gas Supply | 3/4" |
| Warranty | |
| Limited Warranty, Entire Appliance, Parts and Labor | 2 Year |
| RANGETOP | |
| Total number of cooktop Burners | 6 + Griddle |
| 1 – Power of Back Left Burner BTU | 15,000 and XLO |
| 2 – Power of Front Left Burner BTU | 18,000 and XLO |
| 3 – Power of Back Center Burner BTU | 15,000 |
| 4 – Power of Front Center Burner BTU | 18,000 |
| 7 – Power of Front Right Burner BTU | 18,000 |
| 6 – Power of Back Right Burner BTU | 15,000 |
| 5 – Power of Center 12" Electric Griddle | 1,630 W (6-Pass) |
| OVEN | |
| Oven Capacity Lg. / Sm. | 4.6 / 2.5 cu. ft. |
| Cooking Modes, Lg. Oven Bake, Convection Bake, Roast, Broil | - |
| Cooking Modes, Sm. Oven Bake, Proof, Keep Warm, Roast, Broil | - |
| Sabbath Lg. / Sm. | Yes / Yes |
| Self-Clean Lg. / Sm. | No / No |
| Telescopic Rack(s) Lg. / Sm. | 3 / 1 |
| Interior Lights Lg. / Sm. | 2 / 1 |
| Bake Power Lg. / Sm. | 20,500 BTU / 15,000 BTU |
| Broil Power Lg. / Sm. | 17,500 BTU / 7,000 BTU Infrared |
| Home Connectâ„¢ (Wi-Fi Enabled) | Yes, Large Oven Only |
| Lg. Cavity Interior Dimensions (HxWxD) | 16 1/2" x 26" x 18 5/8" |
| Lg. Cavity Usable Dimensions (HxWxD) | 11 1/4" x 22 3/8" x 16 3/4" |
| Sm. Cavity Interior Dimensions (HxWxD) | 16 1/2" x 14 1/4" x 18 5/8" |
| Sm. Cavity Usable Dimensions (HxWxD) | 11 7/8" x 10 7/8" x 16" |
| Dimensions & Weight | |

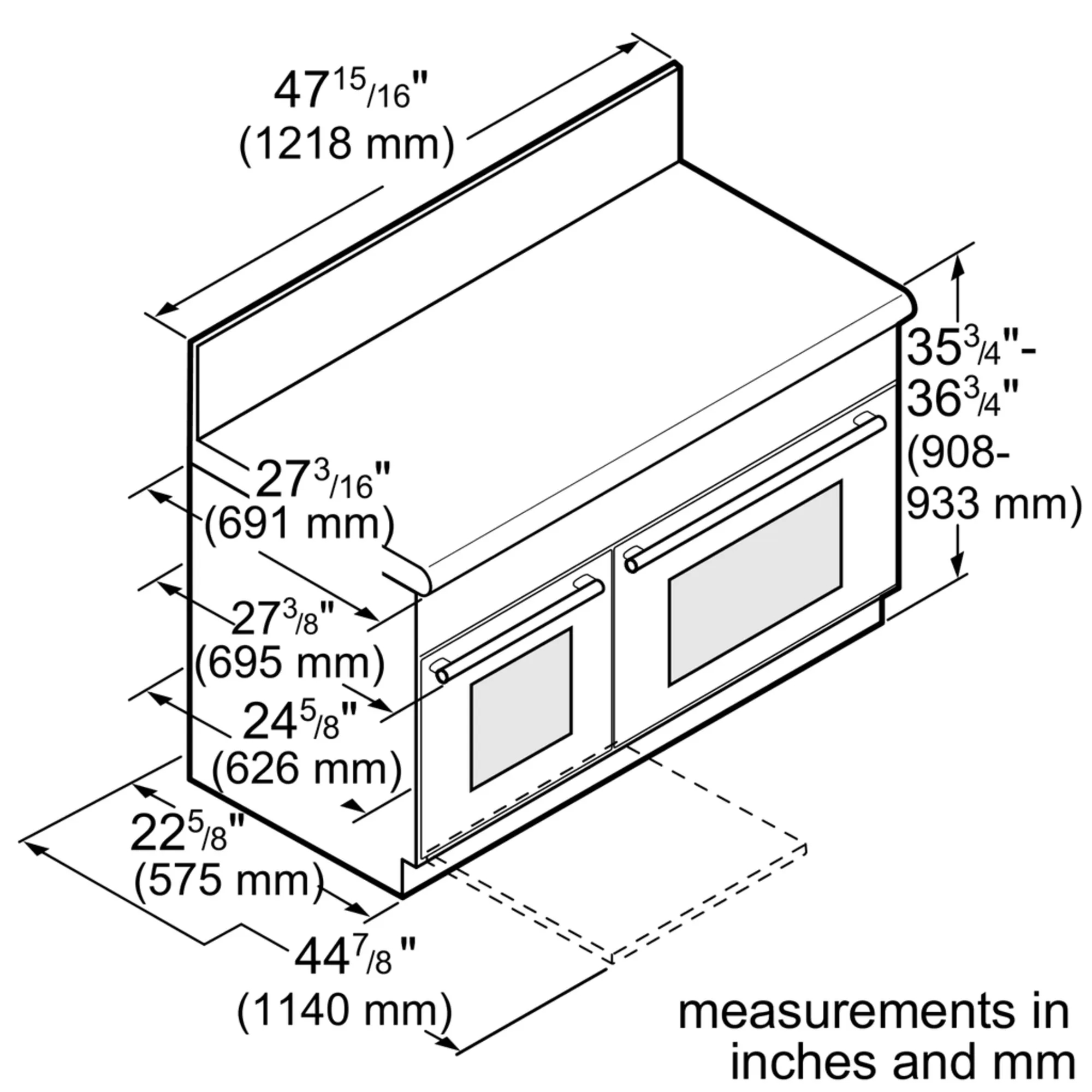

| Overall Appliance Dimensions (HxWxD) | 35 3/4" – 36 3/4" x 47 15/16" x 24 5/8" |
| Required Cutout Size (HxWxD) | 35 3/4" – 36 3/4" x 48" x 24" |
| Net Weight | 556 lbs. |
