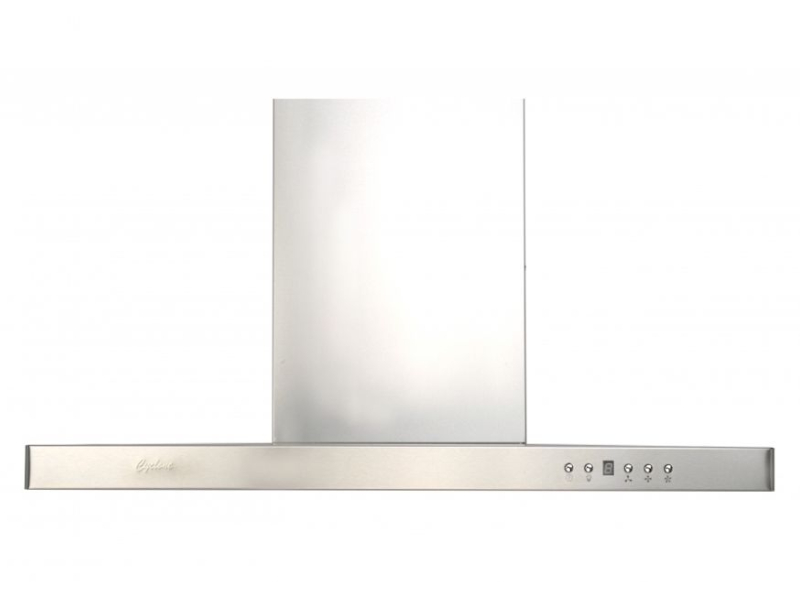

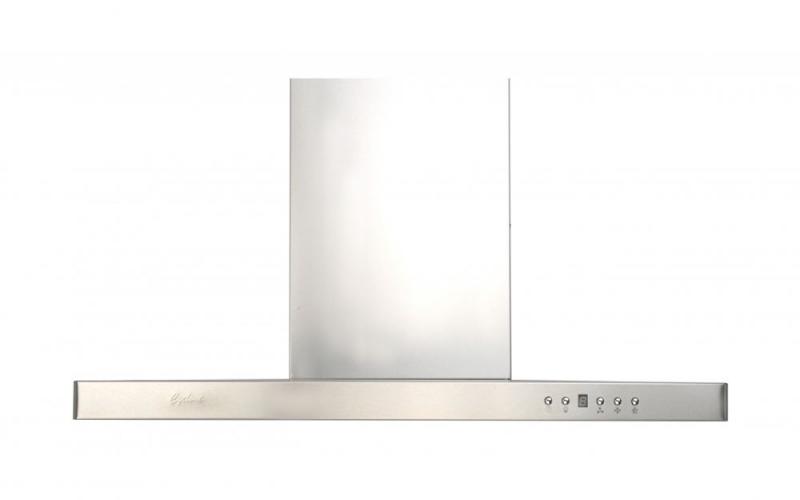

24" Cyclone Pro Collection Wall Mount Range Hood With Baffle Filter - SCB72224
Literature
You may also like
Designed with an emphasis on the beauty of simplicity, the straightforward design of this model blends seamlessly with a modern kitchen environment. Features 650 CFM of drawing power, LED lights at the front of the machine, and fitted with a time-delay OFF feature up to nine minutes.
Features
- Wall mount range hood
- 6″ round ducting
- Non-stick aluminum fan blades
- 3 speed push button control
- 2 LED lights (2 x 1.4W, 4000K)
- Quick release aluminum mesh filters
- Standard chimney fits up to 9ft. ceiling
- Up to 9 minute time-delay OFF feature
- Plug-in connection
Green Features
- 3 Speed Push Button Control Panel
- Long-Lasting LED Lights
- Time-Delay OFF Feature
- Grease Cup
| Specifications | |
|---|---|
| Air Flow Volume | 650 CFM |
| Electrical Connection | 120V/60Hz |
| Power Consumption | 240 Watts |
| Current | 2 Amps |
| Fan Speed | 1599 RPM |
| Fan Type | Centrifugal Blower |
| Finishes | Stainless Steel |
| Ducting | 6” Round |
| Dimensions | Width: 24″ / 30″ / 36” Height: 44 1/2” Depth: 19 3/4″ |
| Noise Level | Min. 2 Sones Max. 7 Sones |
| Options | |
| Filters | SCB722 – Quick-ReleaseStainless Steel Baffle Filters |
| Chimney Flues | B2.CH16 – short (7’-8’ ceilings), B2.CH22 – standard (8’-9’ ceilings), B2.CH32 – extended (9’-11’ ceilings) |
| Widths | 24″ / 30″ / 36” |
| Models | SCB72224, SCB72230, SCB72236 |
