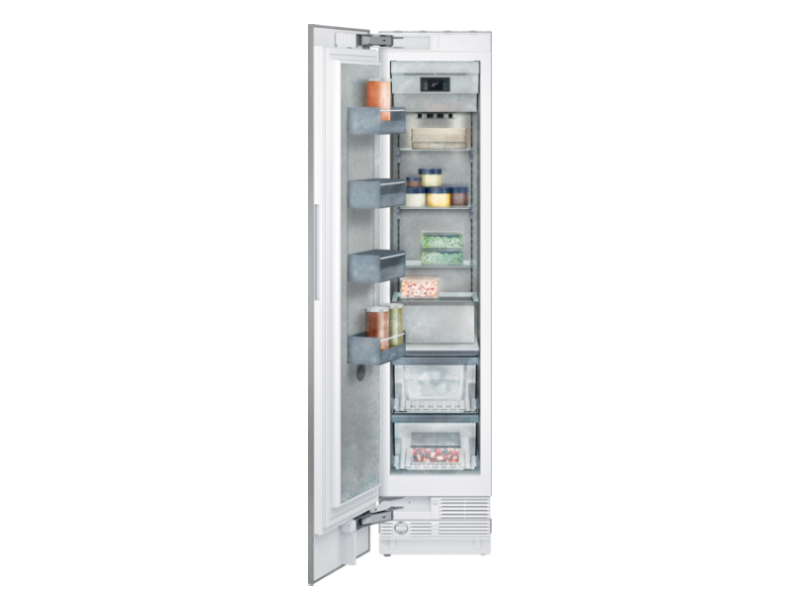

18" Gaggenau 400 Series Vario Built-in Freezer with Soft Close Flat Hinge - RF411705

Highlights

• RF411705
• Vario freezer 400 series
• Fully integrated, panel ready
• Niche width 45.7 cm, Niche height 213.4 cm
• Stainless steel interior with solid anthracite aluminium elements

Additional Information

Operation

• TFT touch display operation.
• Clear text display in 44 languages.

Technical Features

• Dynamic cold air distribution with Multi-Flow Air System.
• Automatic defrosting with defrost water evaporation.
• Cushioned door closing system.
• Sabbath mode certified by Star-K.
• When rest mode is active, the appliance can only be opened using a handle.
• Open-door and malfunction warning system.
• Home network integration for digital services (Home Connect) wireless via WiFi.
• The use of the Home Connect functionality depends on the Home Connect services, which are not available in every country. For further information please check: home-connect.com.

Freezer compartment

• No-frost technology with fast freezing at -30 °C.
• Temperature adjustable from -16 °C to -24 °C.
• 4-star freezer compartment.
• Freezing capacity 6.3 kg/24 h.
• 4 safety glass shelves, white glass, 3 of which are individually height adjustable.
• 2 fully extendable drawers with transparent front.
• Flat door rail system with fully flexible positioning of door racks.
• 4 height-adjustable door racks.

Ice dispenser

• Integrated automatic ice maker in the freezer compartment, with fixed water connection.
• Particle filter for water inlet, integrated in ventilation grille area.
• Saturation indicator shown in TFT touch display.
• Ice maker can be switched off independently.
• Ice cube production approx. 1.4 kg/24 h.
• Removable ice storage container with approx. 2.5 kg capacity.

Consumption data

• Energy consumption 404 kWh/year.
• Noise level 42 dB (re 1 pW).

Planning notes

• Flat hinge.
• Door hinge left, reversible.
• Door opening angle of 115°, fixable at 90°.
• For installation with a door opening angle of 90° the ice storage container must be exchanged for the small ice storage container (RA 448220). This must be done prior to fixing the door.
• Max. door panel weight 55 lbs (25 kg).
• Shut-off valve for water connection must be planned next to the appliance and always be accessible.
• If the water pressure exceeds 0.8 MPa (8 bar), connect pressure relief valve between water tap and hose set.

Rating

• Total rating 1.079 kWh/24h.
• Total Amps: 10 A.
• Connecting cable 118" (3.0 m), detachable.
• Cold water connection required.Electrical location 6'' above ground in lower left corner of unit.
• Supply hose 1.2 m with 1/4'' male compression fitting (standard icemaker connector).
• Water pressure 2 to 8 bar.
