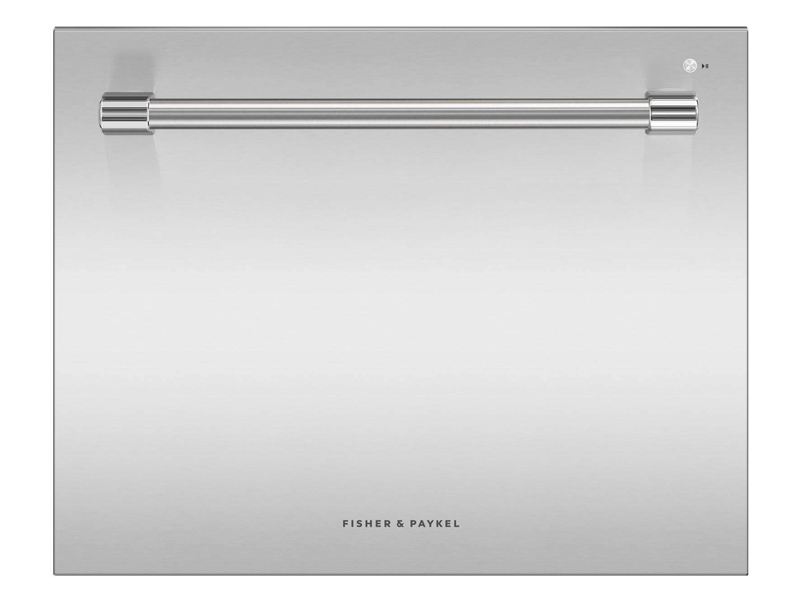

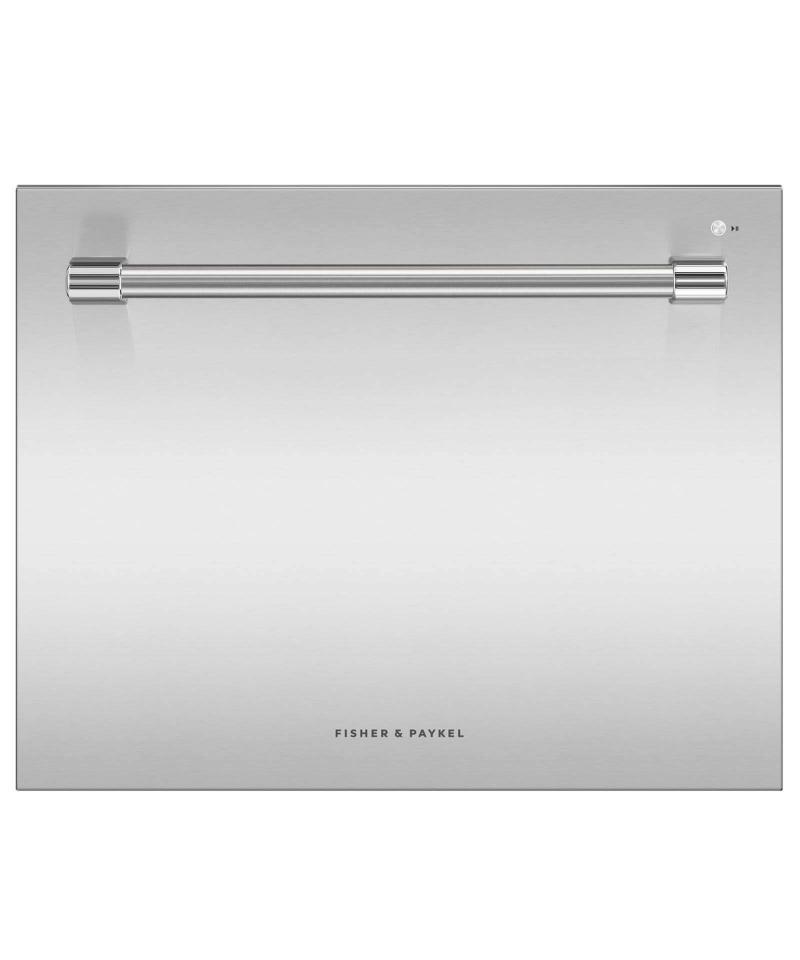

This Fisher & Paykel Single DishDrawer Dishwasher makes life easier with minimal bending when loading and the ability to wash small loads quickly.
Ease of use

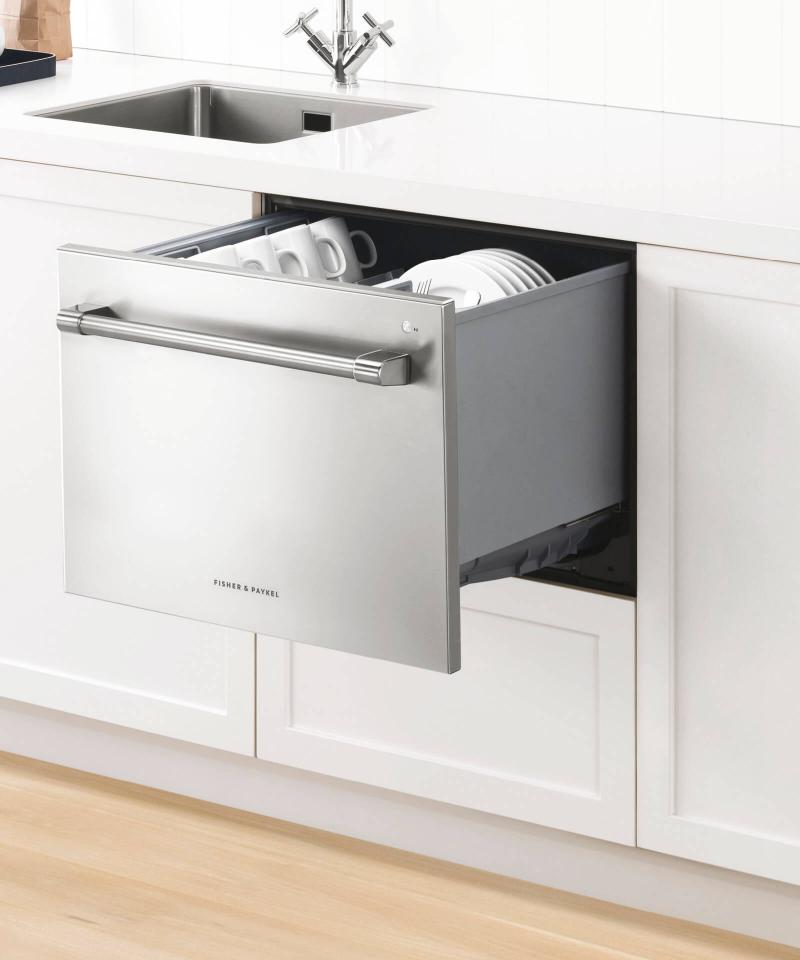

DishDrawer Dishwashers are as easy to open and close as kitchen drawers and can be conveniently positioned at bench height for ease of loading and minimal bending. Flexible racking allows you to make adjustments to fit in a variety of dishes.
Designed to match

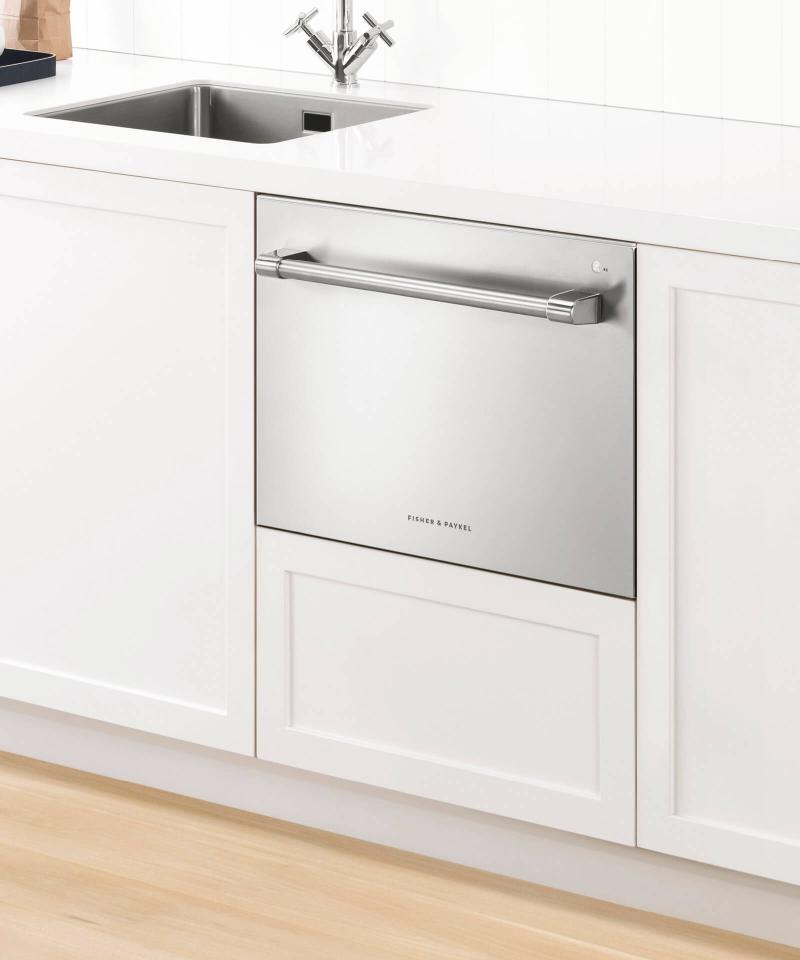

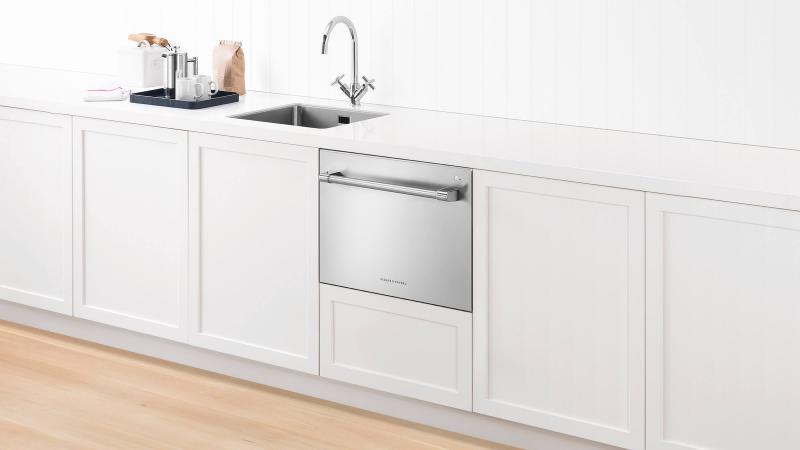

DishDrawer Dishwashers can be installed in any kitchen space and are designed to match the Fisher & Paykel family of kitchen appliances, with matching handles, premium styling and quality materials.
Quick, Sanitize and Extra Dry options
The Quick wash modifier delivers a faster wash while maintaining performance. The Sanitize option provides extra protection killing 99.9% of bacteria in the final rinse. The Extra Dry setting is perfect for plastic dishes.
Quiet performer
Running at a very low decibel rate, these DishDrawer Dishwashers do their job without making a fuss. The combination of intelligent technology and simple mechanics means greater reliability and excellent wash performance.
| Capacity and loading | |
|---|---|
| Accommodates round plates up to | 12.25 |
| Adjustable height, foldable cupracks | Yes |
| Fold down tines | Yes |
| Pitch adjustable tines | Yes |
| Place settings | 7 |
| Power Requirements | |
| AMP draw | 5.8A |
| Supply frequency | 60Hz |
| Supply voltage | 120V |
| Wire | 3 |
| Water connection | |
| Supplied hose to suit 3/8" (9mm) male compression fitting | Yes |
| Water connection | Max 140°F |
| Water pressure | 0.03 Mpa - 1 Mpa (4.3-145 psi) |
| Measurements | |
| ADA compliant | Yes |
| Performance | |
| Energy star | Yes |
| Energy usage | 141kWh/year |
| Water usage | <2 gal |
| CONTROLS | |
| Child lock | Yes |
| Electronic fault/Diagnostic indicator | Yes |
| End of cycle beeps | Yes |
| Energy saving delay start option of up to 12 hours | Yes |
| Internal wash selector | Yes |
| One button start | Yes |
| Rinse aid indicator light | Yes |
| Performance | |
| Fan assisted drying | Yes |
| Flow through detergent dispenser | Yes |
| Quiet operation | Yes |
| SmartDrive technology | Yes |
| WASH PROGRAMS | |
| Delicate | Yes |
| Delicate eco | Yes |
| Eco options | Yes |
| Fast | Yes |
| Fast Eco | Yes |
| Heavy | Yes |
| Heavy eco | Yes |
| Medium | Yes |
| Normal eco | Yes |
| Rinse | Yes |
| Wash programs | 9 |
| Accessories | |
| Cutlery basket | 1 |
| Square handle option | AHV2-DD24 |
| Style And Series | |
| Product Style | Professional |
