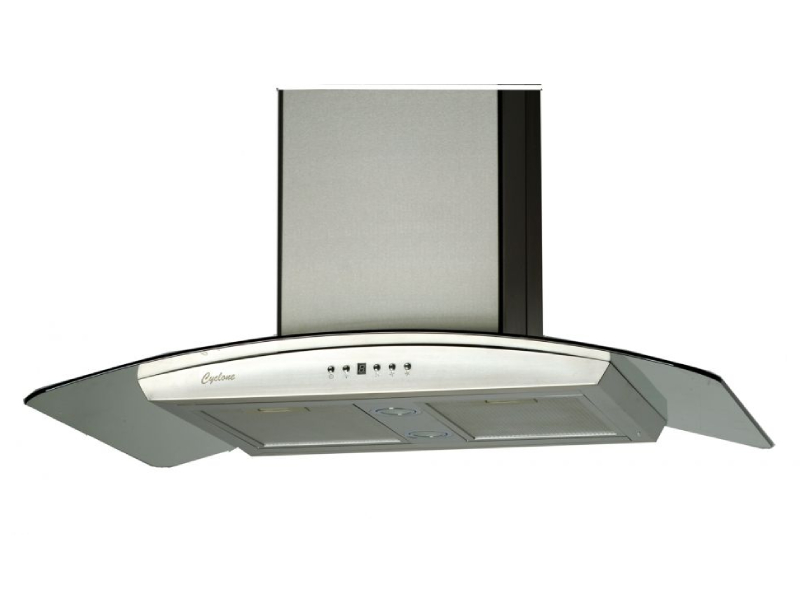

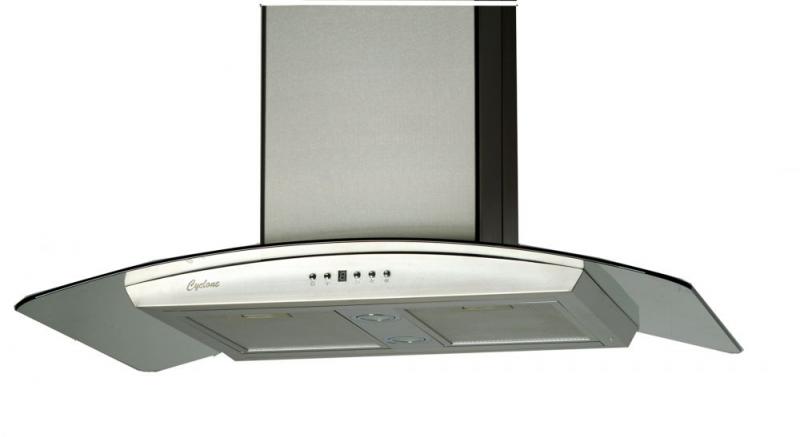

36" Cyclone Alito Collection Wall Mount Range Hood With Baffle Filter - SCB30136
Literature
You may also like
A very attractive exhaust fan, the SC(B)301 is theperfect balance of substance and style. The archedglass canopy frames a classic design giving it amoder appeal. The hood features a three-speeddigital control panel, two LED light, two mesh orbaffle filters and a quiet, efficient motor. Fitted with a time-delay OFF feature up to nine minutes.
Features
- Wall mount range hood
- 6 round duct adapter
- Non-stick aluminum fan blades
- 3 speed push button control
- 2 LED lights (2 x 1.4W, 4000K)
- Quick release aluminum mesh filters
- Standard chimney fits up to 9 ft. ceiling
- Up to 9 minute time-delay OFF feature
- Plug-in connection
Green Features
- 3 Speed Push Button Control Panel
- Long-Lasting LED Lights
- Time-Delay OFF Feature
- Grease Cup
| Specifications | |
|---|---|
| Air Flow Volume | 300 CFM |
| Electrical Connection | 120V/60Hz |
| Power Consumption | 200 Watts |
| Current | 1.8 Amps |
| Fan Speed | 1350 RPM |
| Fan Type | Centrifugal Blower |
| Finishes | Stainless Steel |
| Ducting | 6” Round |
| Dimensions | Width: 30” / 36” Height: 44 ½” Depth: 19 ¾” |
| Noise Level | Min. 2 Sones Max. 4 Sones |
| Options | |
| Filters | SCB301 – Quick Release Stainless Steel Baffle Filters |
| Chimney Flues | B1.CH16 – short (7’-8’ ceilings) B1.CH22 – standard (8’-9’ ceilings) B1.CH32 – extended (9’-11’ ceilings) |
| Widths | 30” / 36” |
| Models | SCB30130,SCB30136 |
