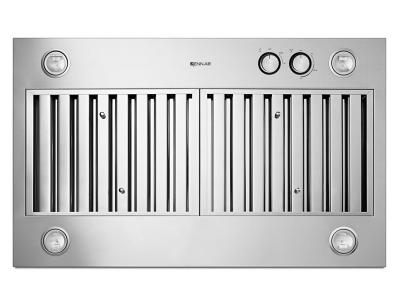

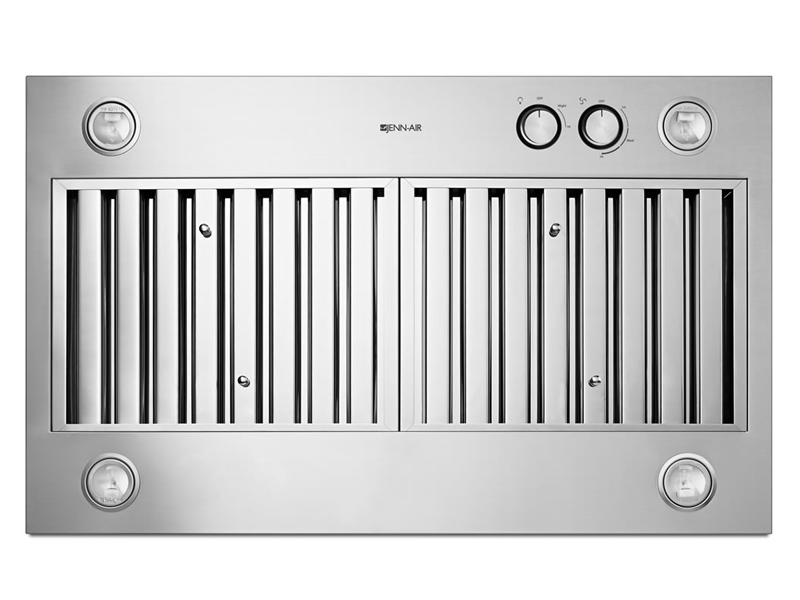

This custom hood liner features a hidden ventilation system mounted to the inside of a custom vent cover (which can be made of metal, wood, plaster or tile), offering a uniquely streamlined look. It also offers you a choice of motors for different levels of ventilation power.
Dishwasher-Safe Stainless Steel Baffle Filters
These stainless steel baffle filters, which effectively capture smoke, grease and cooking odors as they’re drawn through the hood, can be easily cleaned in the dishwasher.
Compatible with Cooking Surfaces up to 105,000 BTUs
This luxury custom hood liner is designed to withstand high heat outputs of up to 105,000 BTUs.
600 or 1,200 CFM Internal or In-Line Blower (Sold Separately)
The single or dual centrifugal blower motor design allows you to choose two levels of ventilation performance. 600 CFM offers a high level of power, while 1,200 CFM is exceptionally powerful, designed to meet the demands of high-heat gas burners and capture even the most persistent and cooking odors.
Auto On (Heat Sensor) Feature
The intuitive auto on (heat sensor) feature protects against high temperatures. When excessive amounts of heat are detected, the sensor activates to increase to the maximum setting, and turns off when temperatures subside.
Knob controls provide precise adjustment and easy selection of ventilation speeds.
10-Inch Round Exterior Venting
Large-diameter venting that enables quiet airflow for efficient performance.
Three Fan Speed Settings
Three different settings on this luxury custom hood liner allow you to control the ventilation level for optimum performance and energy efficiency.
Four Halogen Lights with Night-Light Setting
Twice as energy efficient and long lasting as incandescent light bulbs, these halogen lights beautifully illuminate the cooking surface from above. They include a “dim” setting that can serve as a low-level light when the hood is not in use.
|Configuration and Overview
|Number of Fan Speeds
|Removable Grease Filter
