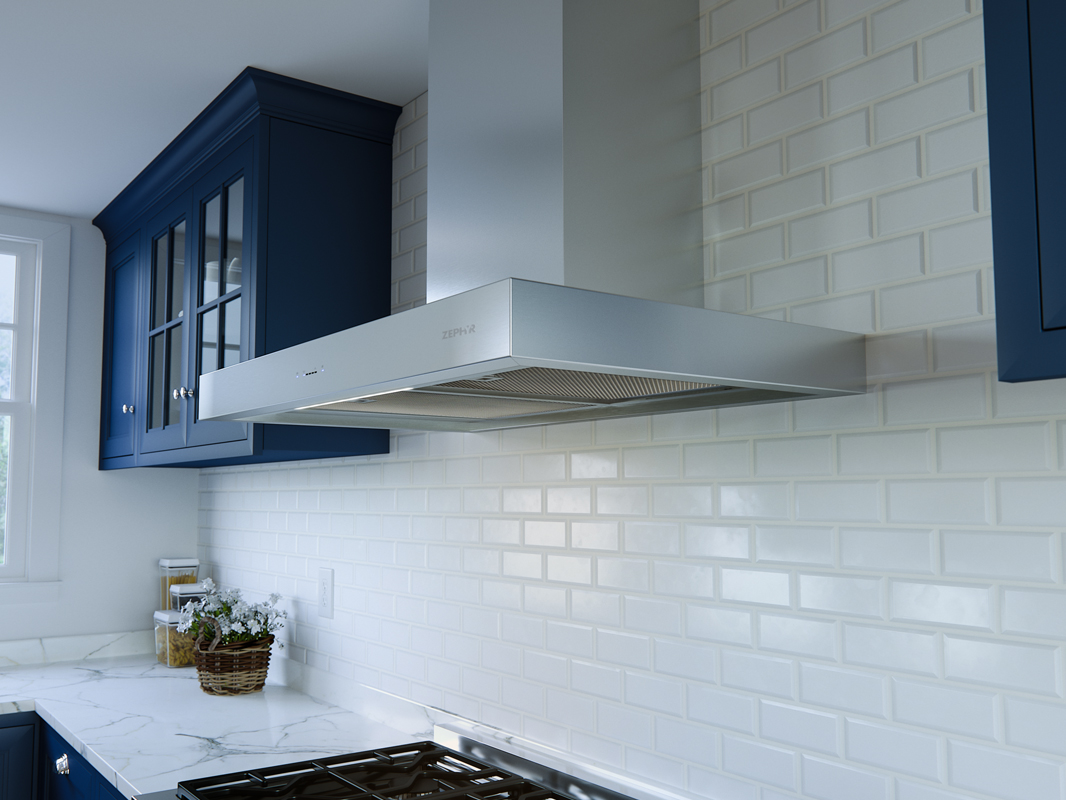

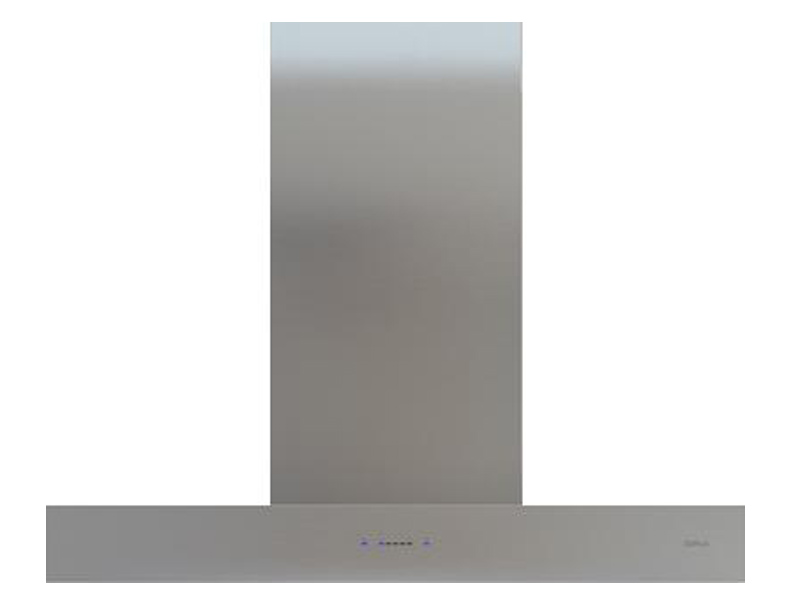

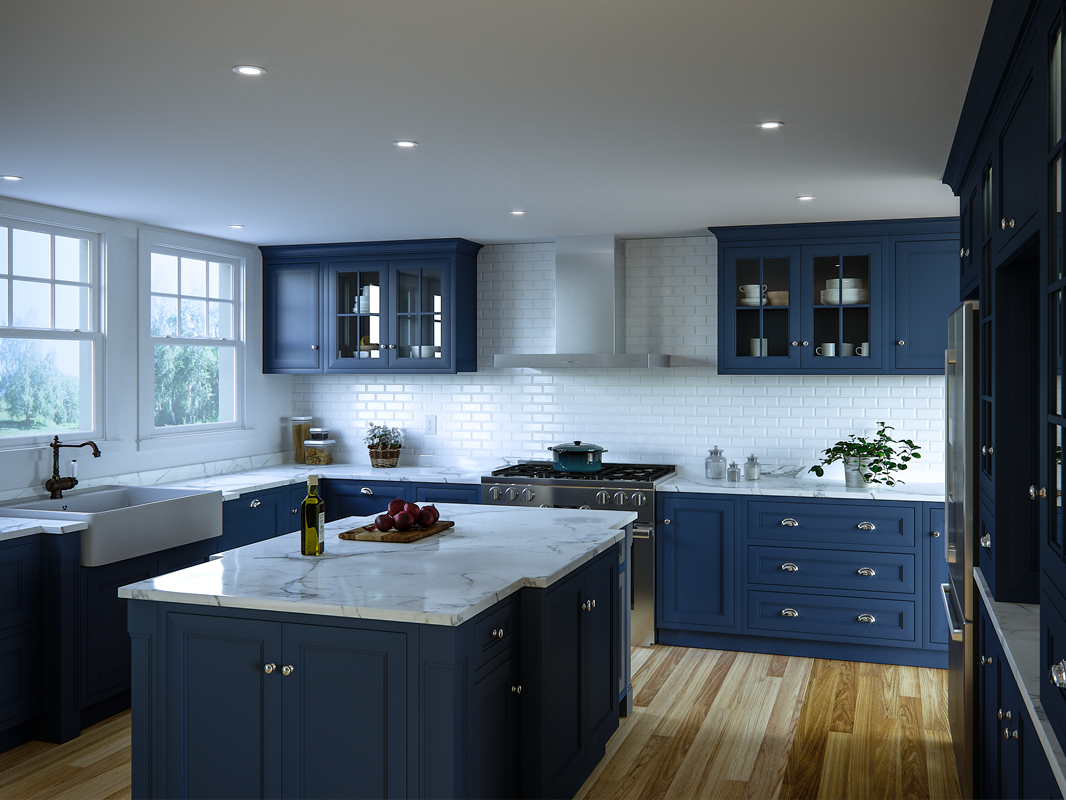

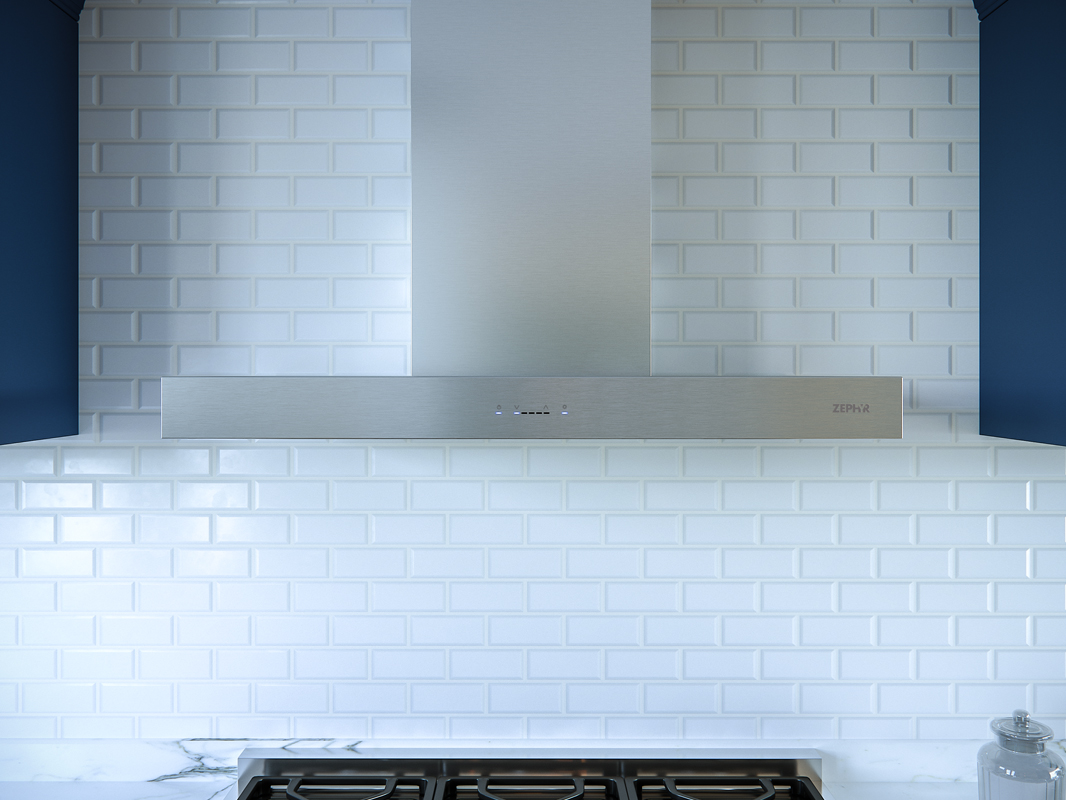

30" Zephyr Europa Roma 600 CFM Wall Mount Vent Hood - ZRO-E30DS
Literature
You may also like
Roma’s sleek low-profile 3” design is ideal for the design-savvy renovator, the high-rise developer who strives for quality or the builder who buys in mass but won’t settle for mediocrity. Roma’s contemporary design is complemented with ICON Touch® controls and a 600-CFM blower that operates at an ultra quiet single sone. Includes BriteStrip™ LED lighting and ACT™ technology.
FEATURES
- Dual-Level Lighting
- Airflow Control Technology™ (ACT™)
- Aluminum Mesh Filters
- BriteStrip™ LED Lighting
- ICON Touch® Controls
- Low-profile Body
- Optional Recirculating Kit
- Optional Duct Cover Extension Kit
- Optional Make-Up Air Kit
| Specifications | |
|---|---|
| Size | 30” |
| Blower CFM (Min. - Max.) | 200 - 600 |
| Sones (Min. - Max.) | 1 - 6 |
| ACT 390 CFM (Min. - Max.) | 200 - 390 |
| ACT 390 Sones (Min. - Max.) | 1 - 4 |
| ACT 290 CFM (Min. - Max.) | 200 - 290 |
| ACT 290 Sones (Min. - Max.) | 1 - 3 |
| MOUNTING HEIGHT RANGE** | 26” - 34” |
| WARRANTY | 3 years parts, 1 year labor |
| Features | |
| ACT™ Technology | Yes |
| Controls | ICON Touch® |
| Speed Levels | 5* |
| Auto Delay-Off | Yes |
| Lighting | BriteStrip™ LED, x1 |
| Dual-Level Lighting | Yes |
| Filters | Aluminum Mesh x2 |
| Recirculating Option | Yes |
| Extension Duct Cover Option | Yes, Up to 12’ Ceiling |
| DUCT SPECIFICATIONS | |
| Vertical Internal Blower | 6” Round |
| Horizontal Internal Blower | NA |
| AC POWER | 120V, 60Hz at Max. 4A |
| OPTIONAL ACCESSORIES | |
| Recirculating Kit | ZRC-01RO |
| Extension Duct Cover | Z1C-00RO |
| Make-Up Air Kit | MUA006A |
