Dual-Centrifugal Fans
Move air quietly and efficiently — up to 400 cu. ft. of air per minute.

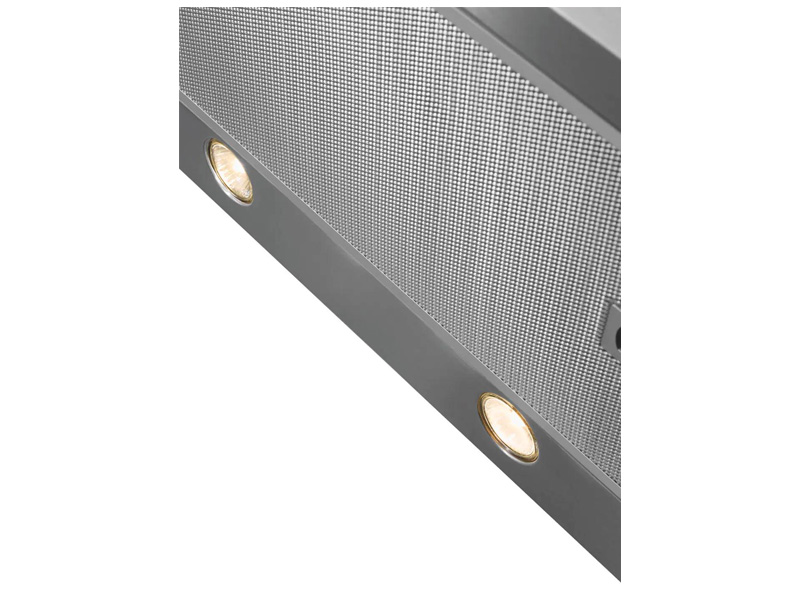

Halogen Lighting
For bright illumination of the cooktop surface.
Washable Filters
Dishwasher safe for easy cleaning. The aluminum filter provides strength and durability not found in foam filters.
| General Specifications | |
|---|---|
| Filter Type | Dishwasher-Safe |
| Power Type | Electric |
| Size | 30'' |
| Installation Type | Wall Mounted |
| Collection | Frigidaire |
| ELECTRICAL SPECIFICATIONS | |
| Amps @ 120 Volts | 4.0 |
| Circuit Amps | 15.0 |
| Connected Load (kW Rating) @ 120V | 0.516 |
| Voltage Rating | 110 / 120V / 60Hz |
| Watts @ 120 Volts | 520 |
| Certifications & Approvals | |
| UL/cUL Approval | Yes - cULus |
| Vent & Light System | |
| Air Discharge | Vertical |
| Blower Type | Centrifugal |
| Duct Diametre | 6" Round |
| Ducted / Ductless Vent Installation | Convertible - outside or recirculated inside |
| Exhaust Duct | Convertible |
| Exhaust Fan Capacity (CFM) | 400 |
| Exhaust Fan Speeds | 3 |
| Filters | 2 |
| Lights | 2 |
| Sones Rating | 3.65 to 6.54 (1 to 3 speeds) |
| Sound Level (dBA) | 58.7 to 67.1 (1 to 3 speeds) |
| Vent Style | Stainless Steel / Glass Canopy |
| Work-Area Light | Halogen Lighting |
| CONTROLS | |
| Control Buttons | 5 |
| Controls | Mechanical |
| Electronic Controls with LCD Display | No |
| Accessories | |
| Recirculation Kit for Wall-Mount Hoods | Glass - Optional order item no. FHWRKT60LS |
| Wall-Mount Extended Kit | Glass - Optional order item no. FHW10X60LS |
| Exterior Dimensions | |
| Depth | 19-11/16" |
| Height (Min.) | 26-1/2" |
| Height (with Flue Extension) | 43-29/32" |
| Width | 29-7/8" |
