Features

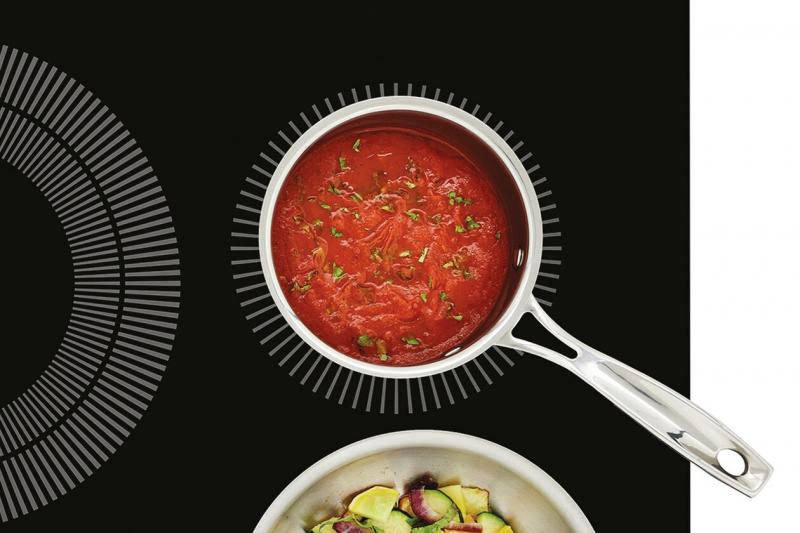

Consistent Results with the Even Temp element
With our EvenTemp cooktop technology, heat is evenly distributed across the element's surface, which reduces hot spots and cold areas in your pan.

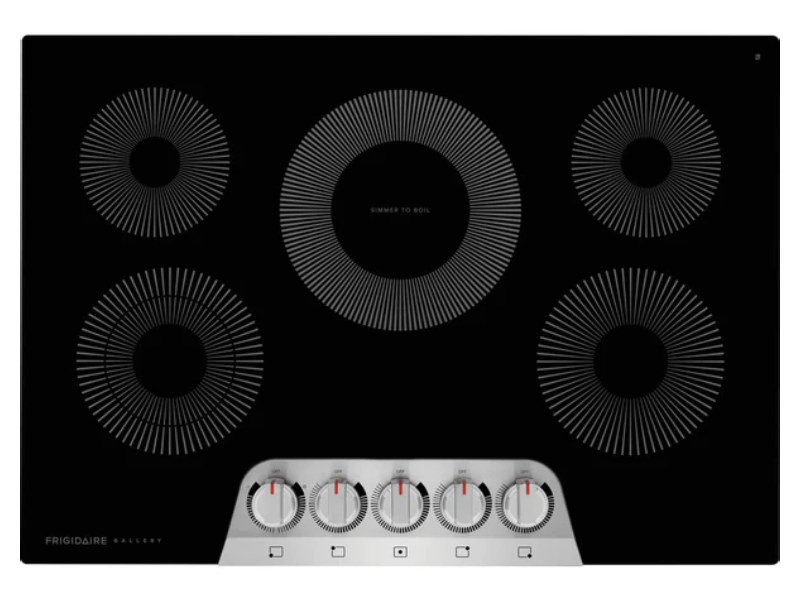

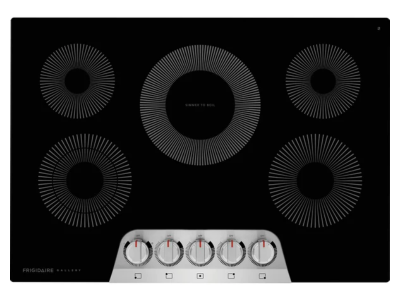

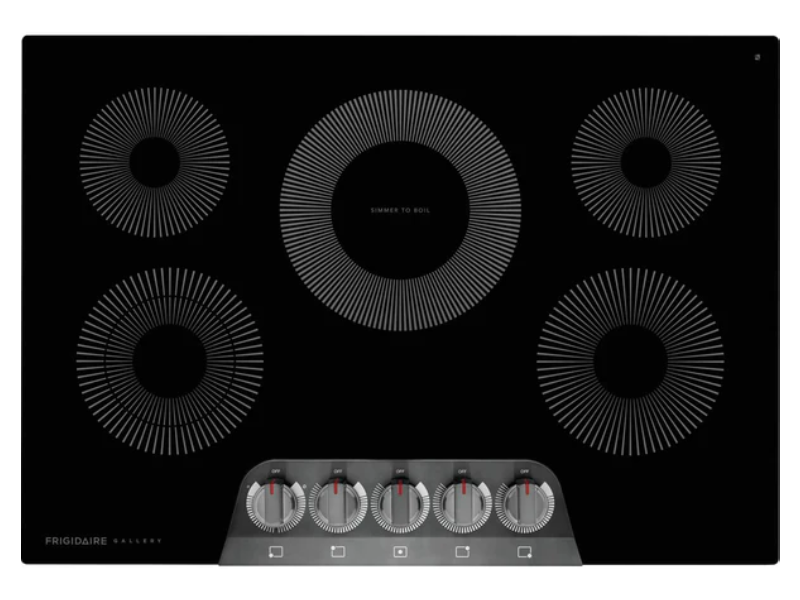

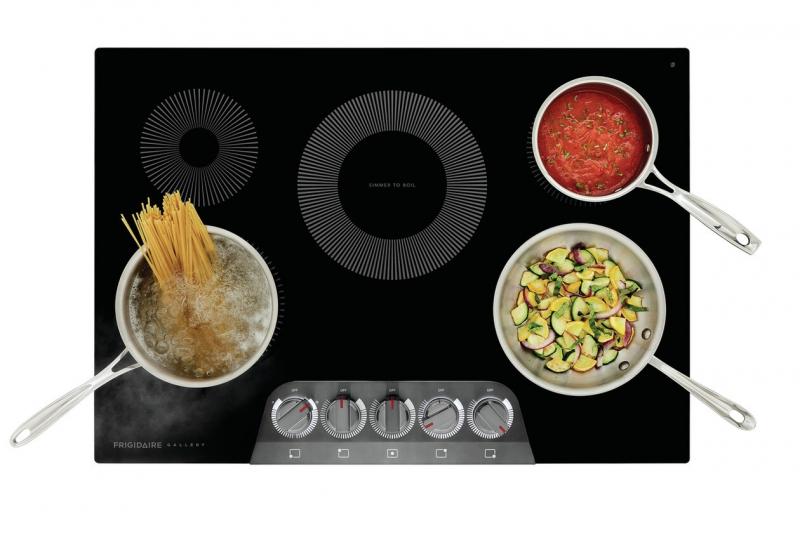

Flexible Five Element Cooktop
With five elements, this cooktop is designed to handle all of your cooking needs, including our powerful 3,200 Watt EvenTemp Element, a Dual Expandable Element, and convenient Keep Warm Zone.

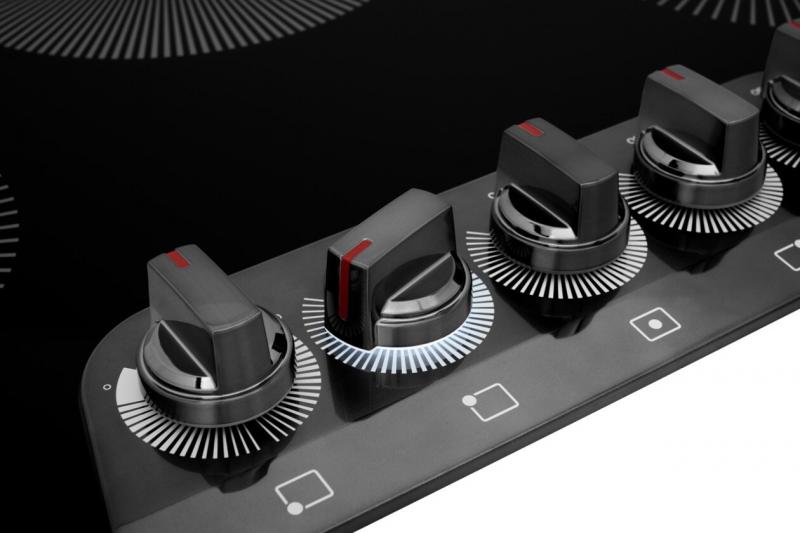

Backlit LED Knobs
Backlit LED knobs light up when your element is in use.
Peace of Mind with the Frigidaire Fit Promise
We promise that your new 30" Frigidaire radiant cooktop will fit your existing countertop cutout of the same width and configuration, or we will reimburse you for cabinet modification costs up to $100. 1

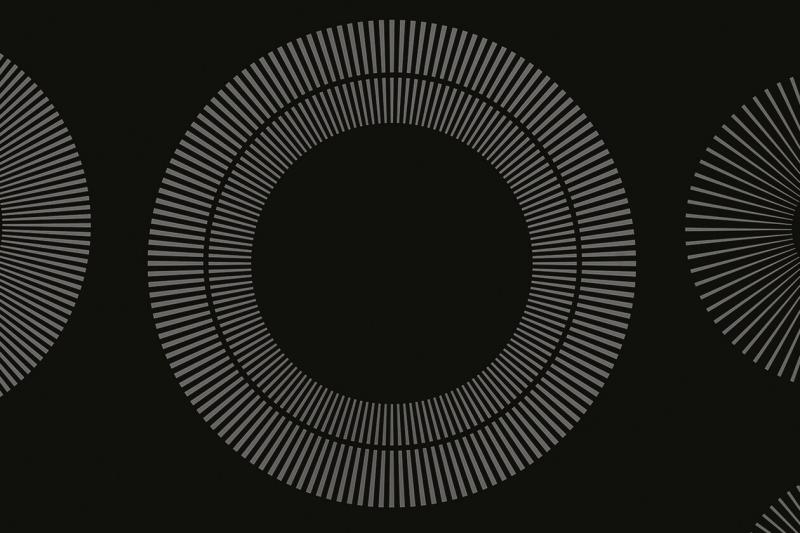

SpaceWise Dual Expandable Element
Our convenient 2-in-1 element expands from 5" for smaller pots to 7" for larger cookware, providing more cooktop flexibility.
Cooktop Keep Warm Zone
Keep food warm until everything - and everyone - is ready.

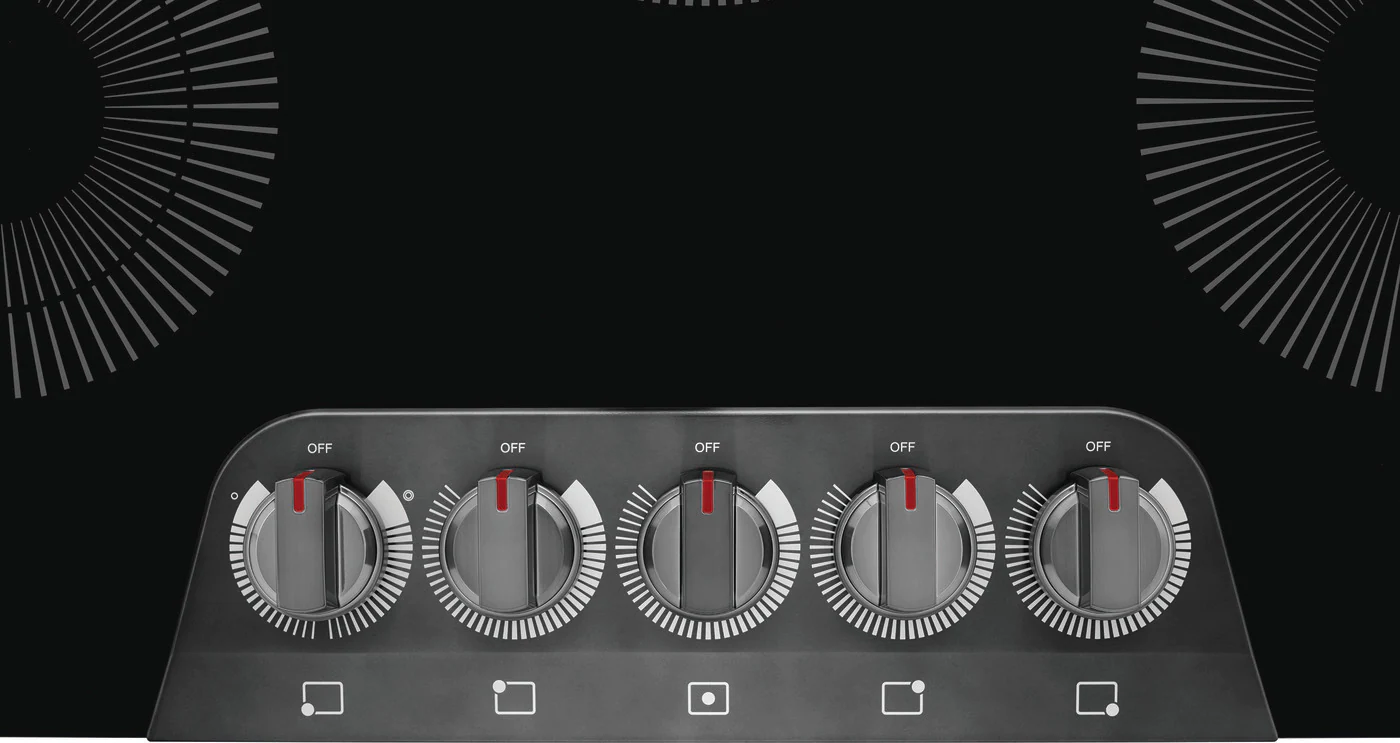

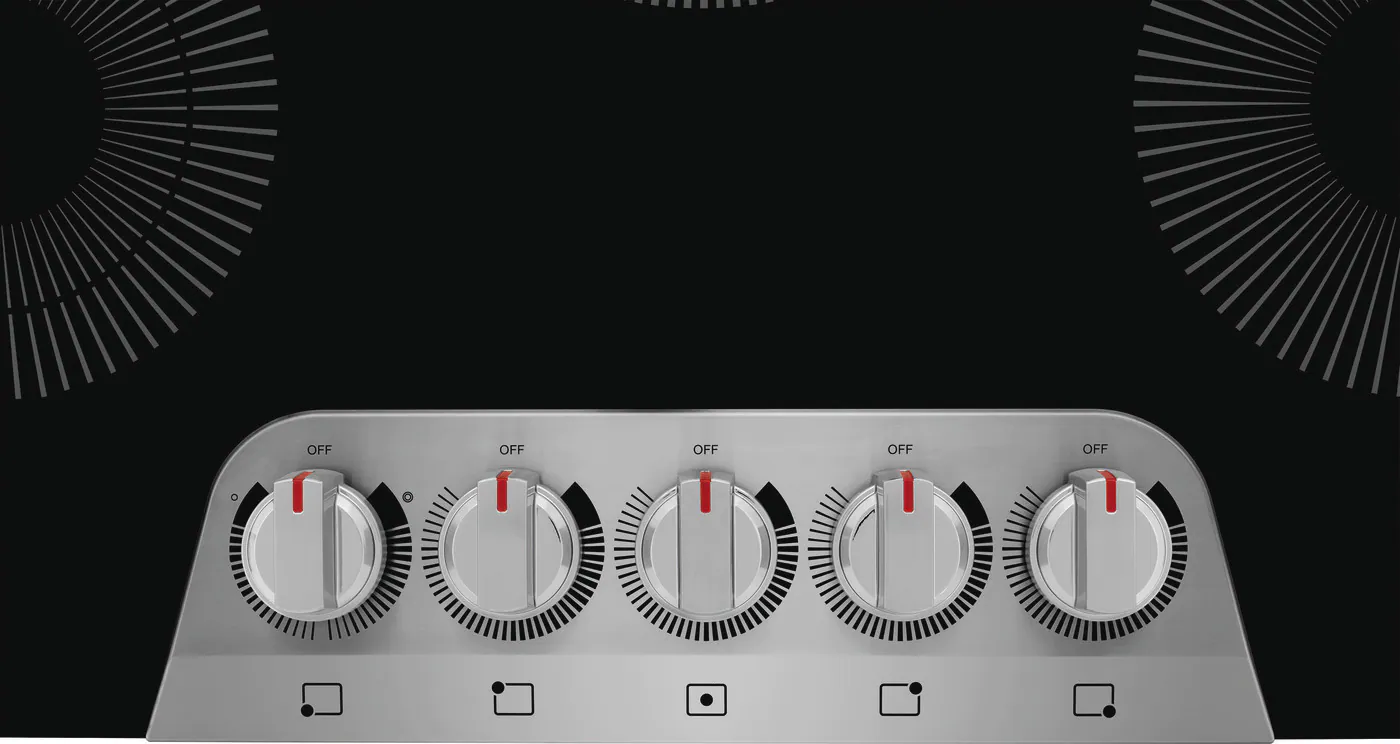

Easy to Use Front Controls
Controls that are located on the front of the cooktop allow you to adjust the temperature without reaching over hot items.
Clean Up is Easier with the Ceramic Glass Cooktop
Wipe away spills more easily with the smooth ceramic glass cooktop.
Approved Over Frigidaire Electric Wall Ovens
Cooktops are approved for installation above any of our Frigidaire electric wall ovens.
| COOKTOP | |
|---|---|
| Cooking Surface Type | Smooth |
| Installation | |
| Power Supply Connection Location | Right Center |
| Installed Over a Wall Oven | Yes |
| ELECTRICAL SPECIFICATIONS | |
| Voltage Rating | 240 V |
| Minimum Circuit Required | 40 Amps |
| Connected Load @ 240V | 9.2 kW |
| Amps @ 240 Volts | 38.3 Amps |
| CONTROLS | |
| Sabbath Mode | No |
| Cooktop Performance | |
| Center Rear Element Burner | 3,200 Watts |
| Left Rear Element Burner | 1,200 Watts |
| Left Front Element Burner (Large) | 1,800 Watts |
| Left Front Element Burner (Small) | 750 Watts |
| Right Rear Element Burner | 1,200 Watts |
| Right Front Element Burner | 1,800 Watts |
| Center Rear Element Burner Size | 9 |
| General Specifications | |
| Prop 65 Label | Yes |
| Warranty - Labor | 1 Year |
| Warranty - Parts | 1 Year |
| Cooktop Performance | |
| Right Front Element Burner Size | 7 |
| Right Rear Element Burner Size | 6 |
| Left Front Element Burner Size (Small) | 5 |
| Left Front Element Burner Size (Large) | 7 |
| DISPLAY | |
| Display Type | Mechanical |
| COOKTOP | |
| Hot-Surface Indicator Light | Yes |
| General Specifications | |
| Frigidaire Fit Promise | Yes |
| Product Weight | 31 lbs |
| Cooktop Performance | |
| Left Rear Element Burner Size | 6 |
| DISPLAY | |
| Control Location | Front |
| Dimensions and Volume | |
| Maximum Cutout Depth | 20 1/2" |
| Maximum Cutout Width | 29 7/8" |
| Minimum Cutout Depth | 19 5/8" |
| Minimum Cutout Width | 28 1/2" |
| Cutout Height | 5" |
| Depth | 21 3/8" |
| Width | 30 5/8" |
| Height | 2 5/8" |
| Certifications and Approvals | |
| ADA Compliant | Yes |
| CSA Listed | Yes |
| UL Listed | Yes |
