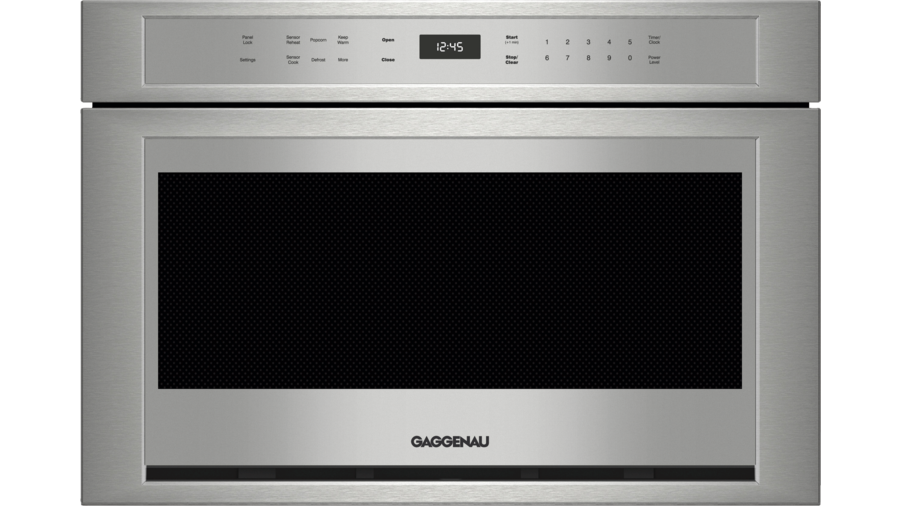

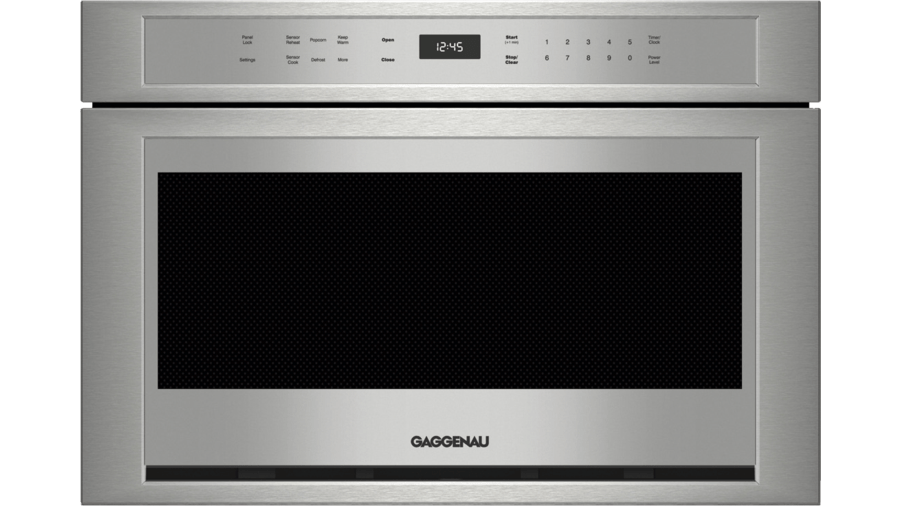

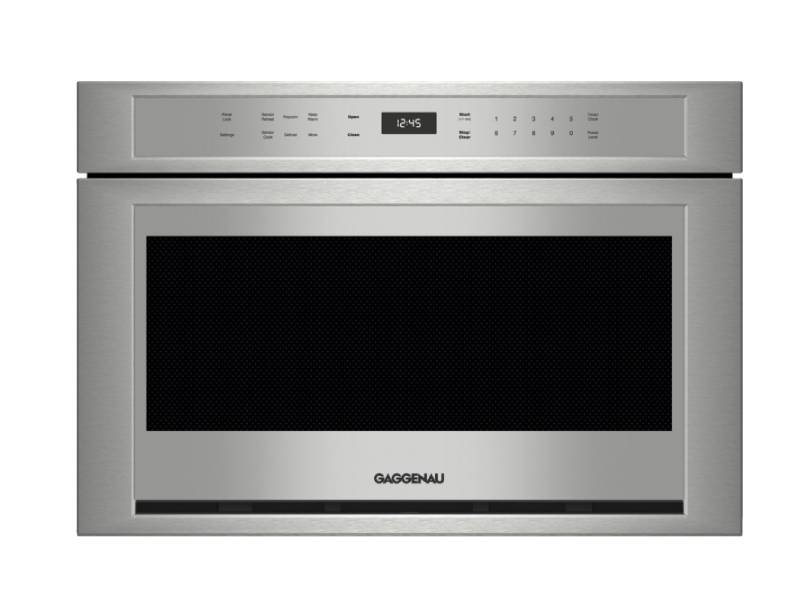

24" Gaggenau 400 series Built-in Microwave Drawer Stainless Steel - MW420620
Literature
You may also like
- Built-in microwave drawer, perfect for kitchen islands, under counter and wall applications
- Flush installation
- Handleless door / automatic door opening
- Cooking sensor for easy cooking
- 950 Watts microwave power
Additional Information
Programmes
- 10 programmes including melt, soften and keep warm.
- Quick defrost programm.Sensor reheat program.Popcorn sensor cooking.Kitchen timer.
- Maximum microwave output power 950 Watts.
Handling
- Automatic door opening.
- Glass touch control panel and an interactive visual display.
- Digital display with scrolling text.
Features
- Interior capacity accommodates 9" x 13" pans and cups up to 7" in height or 20 oz.
- Interior dimensions:Width 17 5/16'' x Heigth 7 1/8'' x Depth 16 9/16''
- Adjustable cooking time up to 99 minutes and 99 seconds.
- Keep warm setting allows food to be kept warm for up to 99 minutes.
- Sensor cooking mode controls humidity and automatically adjusts cooking level and cooking time.
Safety
- Control panel lock.
Planning notes

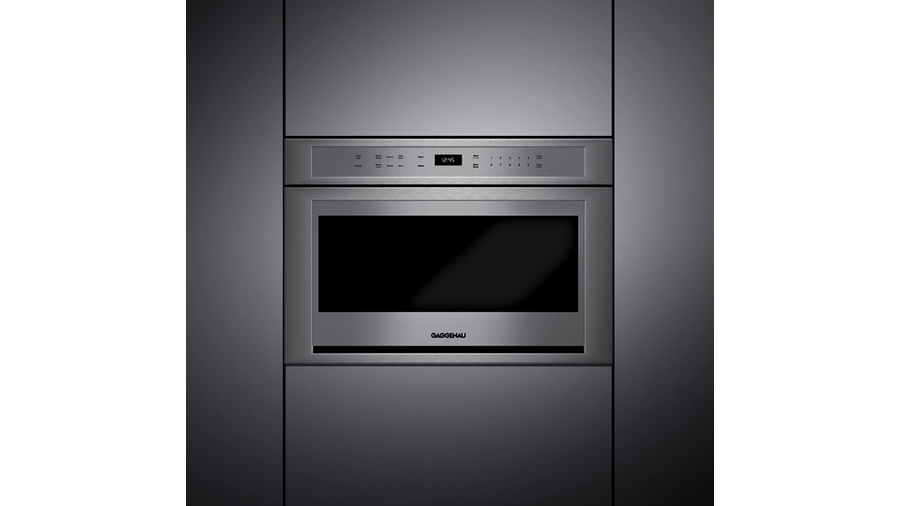

- The built-in microwave drawer can be installed using a standard or flush (inset) installation (see adjacent drawings).Cabinet base support requirements: 100 pounds.Microwave drawer can be installed below an oven but requires a clearance of at least 2".
- Appliance dimensions:Width 23 7/8'' x Heigth 16 5/16'' x Depth 23 3/8''
Connection
- Total connected load 1.5 kW.
- Fuse protection 15 A
- 120 V V / 60 Hz
- Connecting cable 48'' (1.2 m) without plug.
