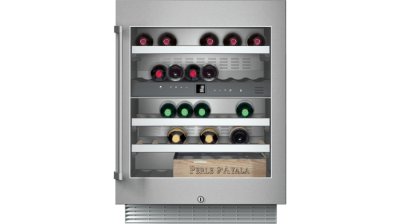

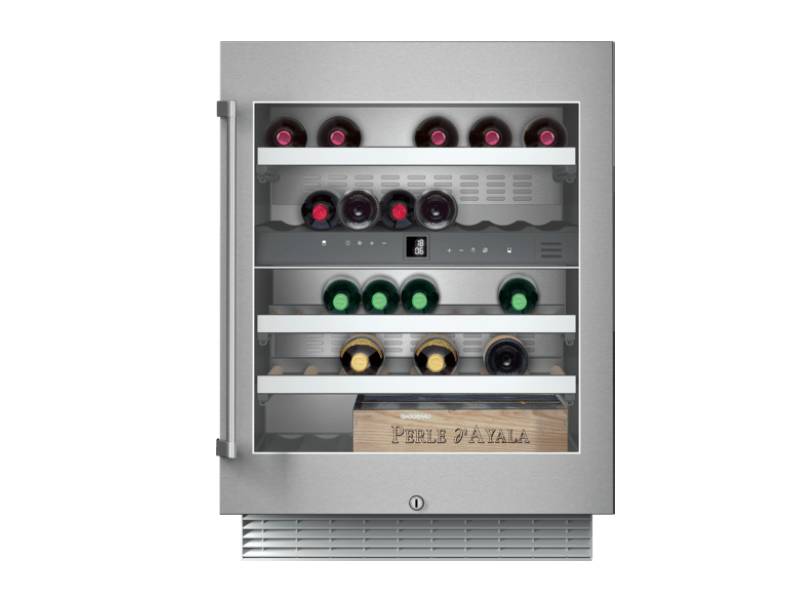

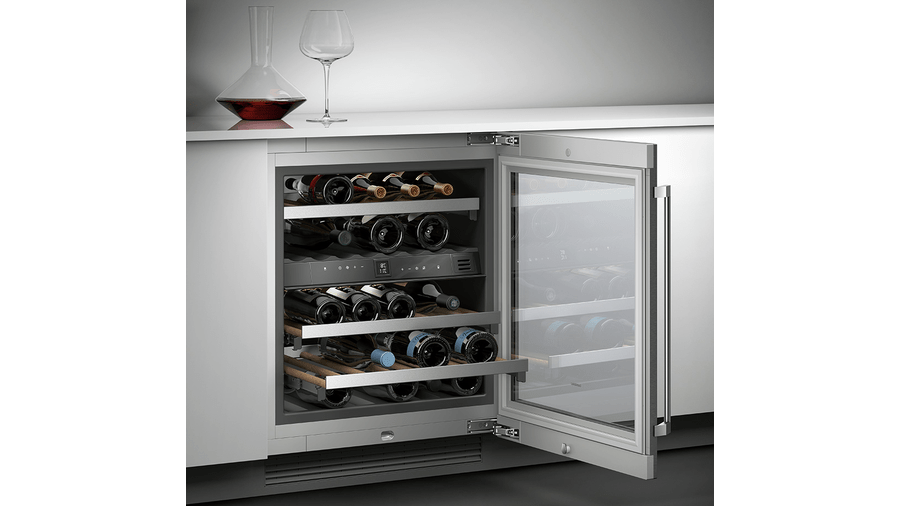

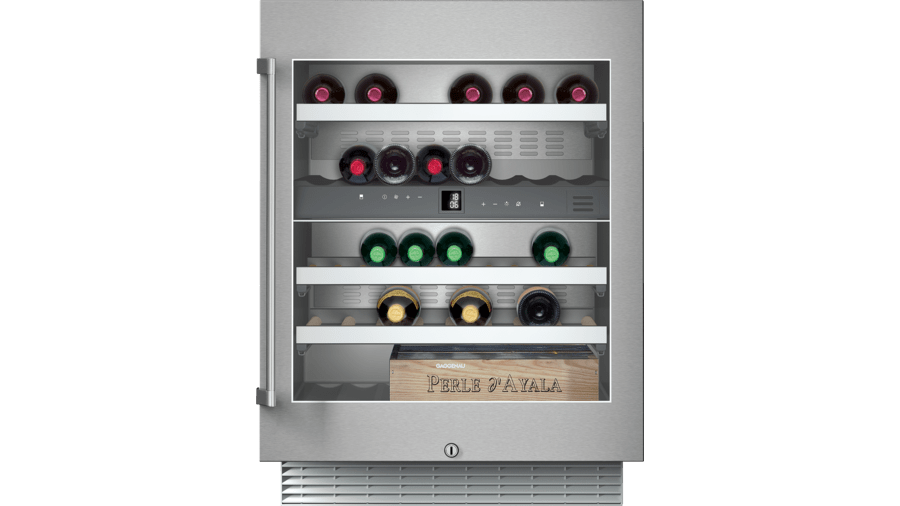

24" Gaggenau 200 Series Wine Climate Cabinet - RW 404 761

• 2 independently controllable climate zones
• Consistent temperatures with exact control from +41 °F to +68 °F (+5 °C to + 20 °C)
• Humidity control
• Extendable bottle trays in beech and aluminium
• LED lighting

Additional Information

Handling

• Electronic temperature control with digital display.
• Touch keys.
• Presentation light option in each climate zone, dimmable.
• Interior lighting with automatic dimming with opening and closing of door.

Technical Features

• Dynamic cold air distribution.
• Automatic defrosting with defrost water evaporation.
• Cushioned door closing system integrated in door hinge.
• 1 activated charcoal air filter for both climate zones.
• UV-protection.
• Open-door and malfunction alarm.
• Dust filter, dishwasher-safe.

Features

• Net volume 4.3 cu. ft. (94 liters)
• Capacity 34 bottles (based on 0.75/l standard bottles).
• 5 bottle trays, 3 of which are extendable.
• Storage of magnum bottles possible.
• LED lighting

Consumption data

• Energy consumption 144 kwh/year.
• Noise level 38 dB (re 1 pW).

Planning notes

• Flat hinge.
• Door hinge right, reversible.
• Height-adjustable feet.
• Door opening angle fixable at 95°.
• For integration next to a side wall a clearance of 150 mm hinge side is necessary.
• The mains socket needs to be planned outside the built-in niche.
• No transport/operation above 1.500 m sea level.

Connection

• Total connected load 0.200 kW.
• 115 V / 60 Hz.
• Total Amps: 10 A.
• Connecting cable 70 7/8" (1.8 m) with plug.
