18" Whirlpool Half Load Cycle Dishwasher with Triple Spray Arms - WDFS5118SS

You may also like
Top Features
Half Load Cycle with Triple Spray Arms
Handle small loads with the Half Load Cycle. Designed with an extra dedicated spray arm* for a top rack only cycle. *Compared to WDF518SAHM
1 Hour Quick Wash Cycle
Clean dishes in just under an hour with a 1 Hour Quick Wash Cycle that takes care of plates and glasses when you need them done in a hurry.
Energy Star® Certified
ENERGYSTAR® certified models exceed government standards to help save money on your utility bills.
Additional Features
48 dBA Sound Level Rating
Run your dishwasher without disrupting your space with an updated design and improved sound rating.*
*From 50 dBA on WDF518SAHM to 48 dBA on current model.

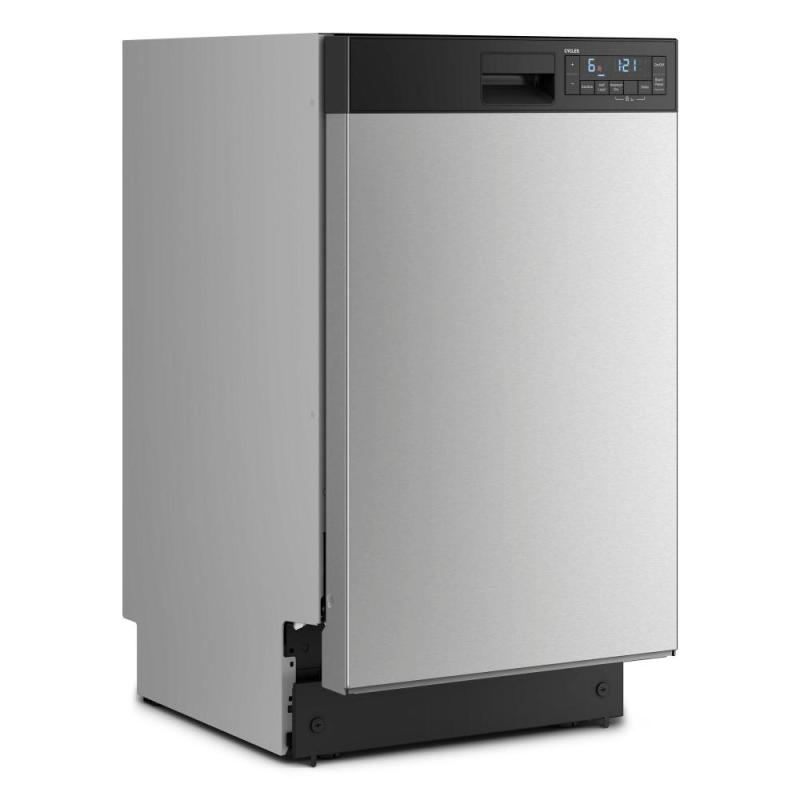

Flush to Cabinet Installation
Get a built-in look with a dishwasher that sits flush with your cabinets.
Small Space Solution
Fit 8 place settings in this compact dishwasher without sacrificing cabinet space in your kitchen.
Flexible Capacity

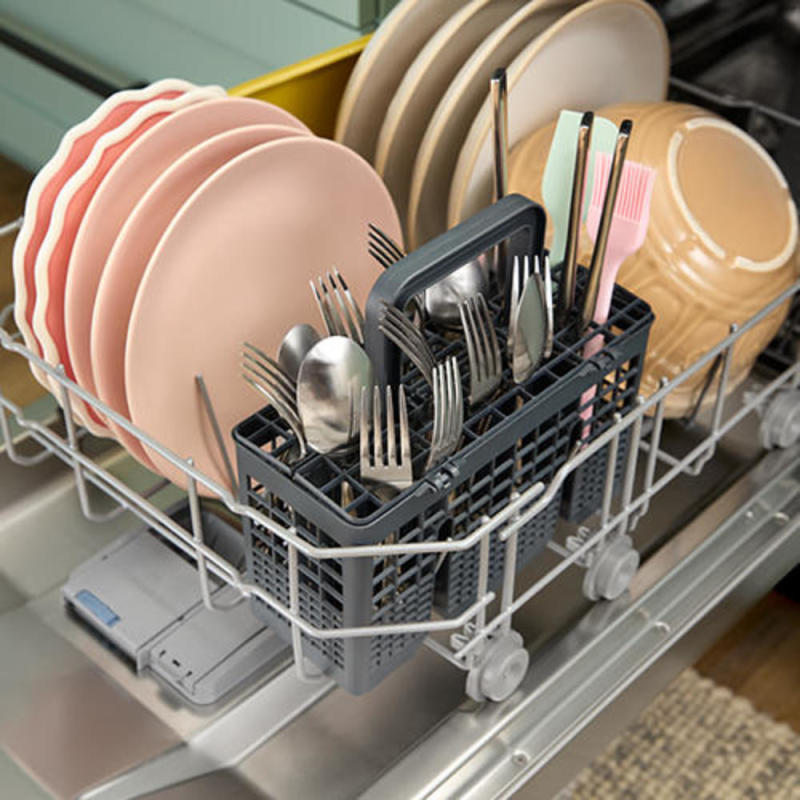

With a movable silverware basket, adjustable rack, adjustable cup shelf, and adjustable tines, you'll find the flexible space you need for water bottles, casserole dishes, and other odds and ends your family piles up.
Heavy Cycle
The Heavy Cycle provides extra wash time to take care of heavily soiled messes on hard-to-clean dishes.
Normal Cycle
Use the Normal Cycle for average amounts of food soil to clean up leftover messes from your day-to-day meals.
Sensor Cycle
The Sensor Cycle determines how dirty dishes are and adjusts the cycle as needed to make sure dishes come out clean.
Rinse Only Cycle
Help prevent food from drying on dishes using minimal water and no detergent with the Rinse Only Cycle.
Delicate Cycle
Care for glassware and china with lower wash temperatures and gentle wash action with the Delicate Cycle.
Sanitize
Use Sanitize to clean dishes by eliminating 99.999% of food soil bacteria.
Maximum Heat Dry
Add a boost of heat to your drying cycle with the Maximum Heat Dry Option.
For the best results, pair with rinse aid.
Delay
Use Delay to delay the start of the cycle up to 24 hours to make sure dishes are clean and dry when you need them.
Leak Detection
If a leak is detected, the unit displays an error code before stopping the cycle to drain any remaining water.
| Dimensions | |
|---|---|
| Depth | 22.0 " |
| Width | 17.63 " |
| Height | 33.5 " |
| Carton Depth | 26.02 " |
| Carton Height | 33.82 " |
| Carton Width | 19.45 " |
| Gross Weight | 68.78 lbs |
| Net Weight | 65 lbs |
| Depth Closed Excluding Handles | 22.0 " |
| Depth Closed Including Handles | 22.44 " |
| Depth With Door Open 90 Degree | 44.5 " |
| Maximum Height | 34.5 " |
| Minimum Height | 32.5 " |
| LOWER RACK | |
| Glides | Rollers |
| Cushion Tip Tines | Yes |
| Fold Down Tines | No |
| Style | Extended |
| Utility Basket | Yes |
| DETAILS | |
| Water Filtration | Yes |
| Wash System Type | Removable Filter |
| Drying System Type | Recessed Heating Element |
| Hoses Included | Drain Hose |
| Interior Light | No |
| Number Of Racks | 2 |
| Number Of Washarms | 2 |
| Tub Material | Stainless Steel |
| Tub Style | Built-in 18in. Tub |
| Wash System | Filter |
| Electrical | |
| Amps | 6.75 |
| Power Cord Included | No |
| Volts | 120.0 |
| Features | |
| Decibel Level Dba | 50 |

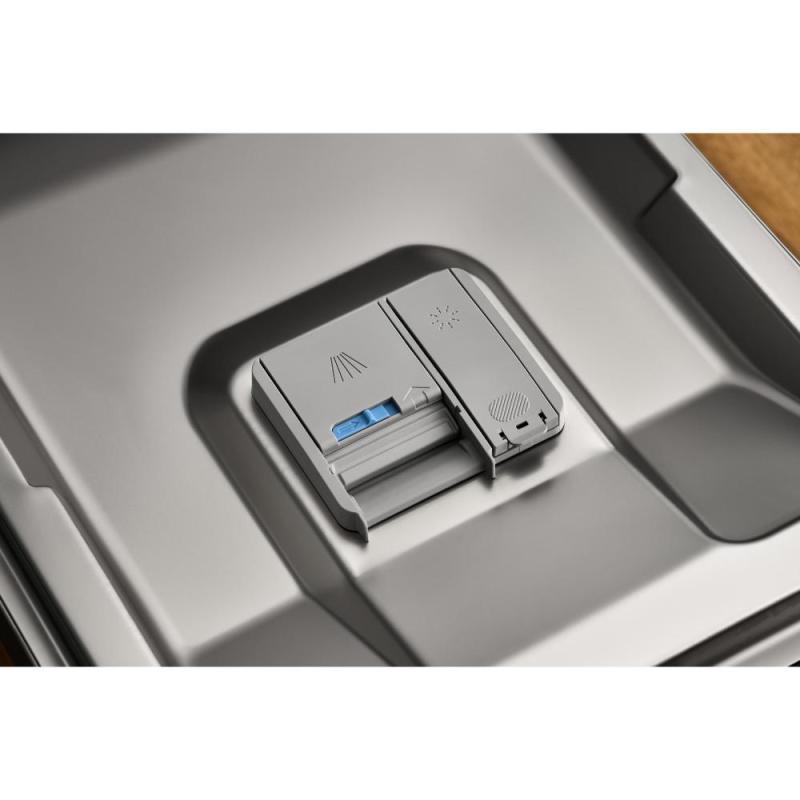

| Dispensers | Detergent and Rinse Aid |
| Wash Levels | 4 |
| Rinse Aid Dispenser Level Indicator | Yes |
| Options | |
| Dishwasher Option Selections | 1-24 Hour Delay Heated Dry Hi Temp Wash |
| Specifications | |
| Delay Start | Yes |
| Required Accessories | W10278635RP, W10685193 |
| Extended Service Plan Parent | EW04IW1Y, EW04IW2Y, EW04IW4Y |
| Quick Wash | Yes |
| Silverware Basket | |
| Covers | Yes |
| Culinary Basket | No |
| Location | Bottom Rack |
| Type | Full Length Non Splitable |
| CYCLES AND OPTIONS | |
| Dishwasher Cycle Selections | Heavy Light/China Normal Quick Wash Rinse Only |
| Certifications | |
| Cee Tier | Tier I |
| Energy Star | Yes |
| NSF Certified | No |
| UL | Yes |
| ADA Compliant | Yes |
| CONTROLS | |
| Automatic Temperature Controls | Yes |
| Control Location | Front |
| Control Type | Electronic |
| End Of Cycle Signal | Yes |
| Status Light | Yes, White |
| Cycles | |
| Wash Cycles | 5 |
