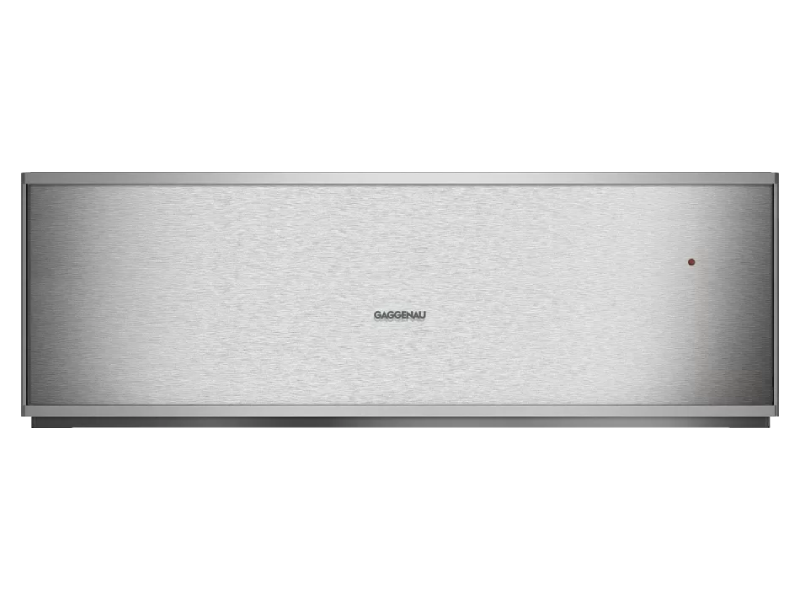

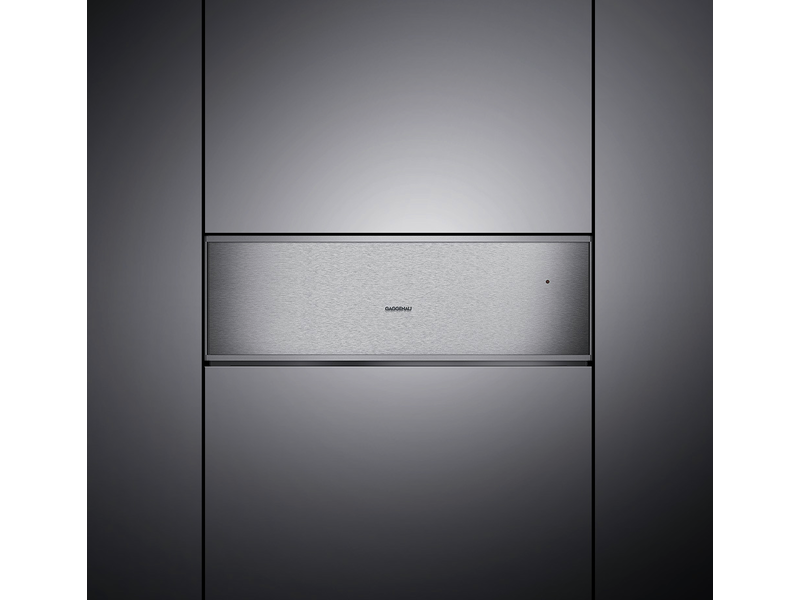

Gaggenau 400 Series Warming Drawer in Stainless Steel - WS463710
Literature
You may also like
Highlights
- Perfect for a side-by-side combination of 30'' single oven and 24'' Combi-steam oven, speed microwave oven or a 24'' espresso machine
- Handleless drawer
- Bright interior light
- Soft closing system
- Hygienic stainless steel interior with glass bottom
Additional Information
Cooking modes
- Defrosting of meals/proving of yeast dough.
- Preheating of small beverages.
- Keeping meals warm/slow cooking.
- Warming of dishes.
Operation
- Rotary knob operation.
- Recessed grip at the front bottom of the drawer.
Features
- Volume capacity: Dinner service for 8 people including ø 9 1/2 " (24 cm) plates and soup bowls, additional bowls and a serving dish depending on size.
- Heating under glass bottom for easy cleaning.
- Convection fan for fast, even heat distribution when warming dishes.
- Status display, visible in the glass front.
- Glass bottom made of safety glass.
Planning notes
- The front of the appliance extends 1 7/8'' from the furniture cavity.
- Installation of BO/BS above WS with dimensionally stable intermediate shelf.
- Installation of BS/BM/CM above WS in 23 3/16 " (66,5 cm) niche with intermediate floor (gap of 7 mm between WS and BS).
- The electric outlet can be planned behind the appliance.
Rating
- Total rating 0.81 kW.
- Total Amps: 10 A.
- 120 V / 60 Hz.
- Conncection cable 6' with plug.
