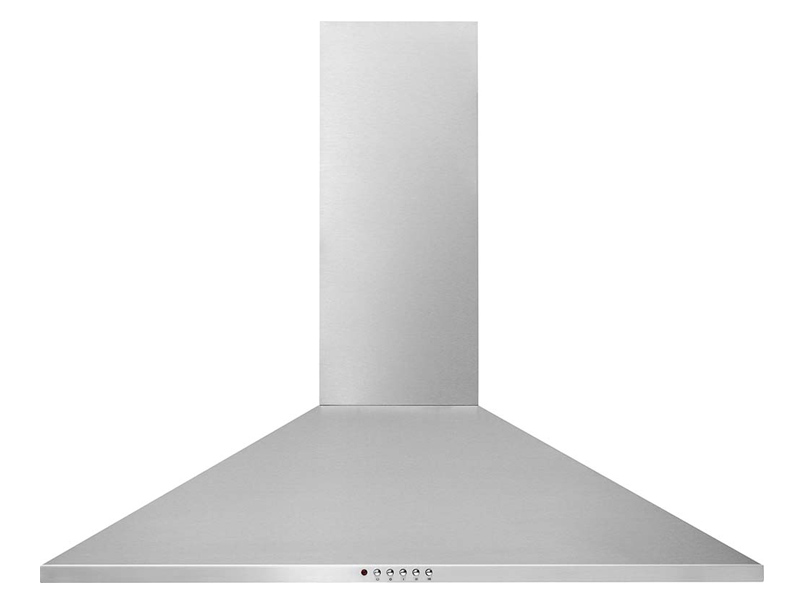

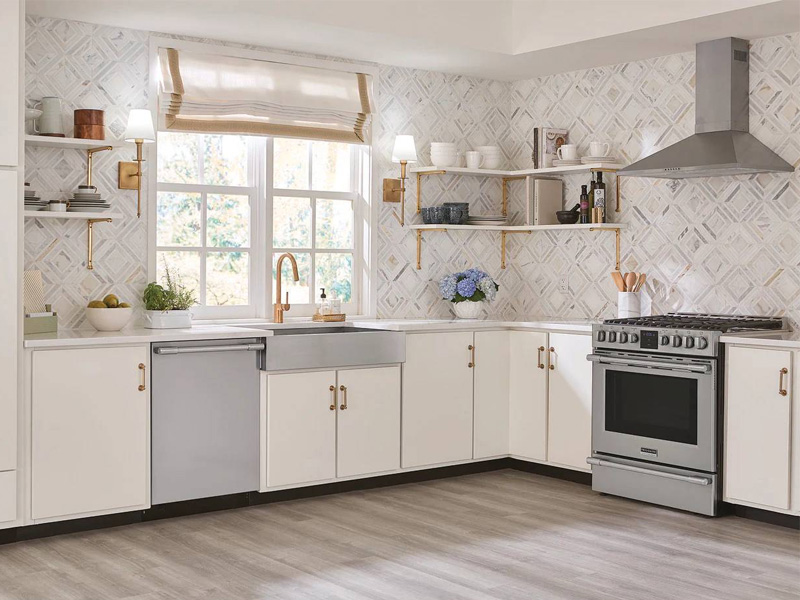

30" Frigidaire Stainless Canopy Wall-Mounted Hood - FHWC3055LS
clearance
You may also like
Dual-Centrifugal Fans
Move air quietly and efficiently — up to 400 cu. ft. of air per minute.
Halogen Lighting
For bright illumination of the cooktop surface.
Washable Filters
Dishwasher safe for easy cleaning. The aluminum filter provides strength and durability not found in foam filters.
| Vent & Light System | |
|---|---|
| Sones Rating | 3.63 to 7.94 (1 to 3 speeds) |
| Lights | 2 |
| Filters | 2 |
| Exhaust Fan Speeds | 3 |
| Exhaust Fan Capacity (CFM) | 400 |
| Exhaust Duct | Convertible |
| Ducted / Ductless Vent Installation | Yes |
| Duct Diametre | 6" |
| Blower Type | Centrifugal |
| Work-Area Light | Halogen Lighting |
| Sound Level (dBA) | 58.5 to 69.9 (1 to 3 speeds) |
| Certifications & Approvals | |
| UL/cUL Approval | Yes - cULus |
| Agency Approval | UL/cUL |
| ELECTRICAL SPECIFICATIONS | |
| Watts @ 120 Volts | 520 |
| Voltage Rating | 120V 60Hz |
| Connected Load (kW Rating) @ 120V | 0.516 |
| Circuit Amps | 15.0 |
| Amps @ 120 Volts | 4.0 |
| General Specifications | |
| Collection | Frigidaire |
| Installation Type | Wall Mounted |
| Size | 30'' |
| Power Type | Electric |
| Product Weight (lbs) | 78 |
| Filter Type | Dishwasher-Safe |
| Exterior Dimensions | |
| Width | 29-7/8" |
| Height (with Flue Extension) | 45" |
| Height (Min.) | 31-11/16" |
| Depth | 19-11/16" |
| Accessories | |
| Wall-Mount Extended Kit | Stainless - Optional order item no. FHW10X55LS |
| Recirculation Kit for Wall-Mount Hoods | Stainless - Optional order item no. FHWRKT55LS |
| CONTROLS | |
| Electronic Controls with LCD Display | No |
| Control Buttons | 5 |
